1000W Double Drive Open Type Fiber Laser Cutting Machine

This series Fiber Laser Cutting Machine is suitable for the customers who need to processing plenty of thin metal sheet and high reflective metal materials.
  • item no.:

    RWL-3015B
  • lead time:

    Within 2 days after received payment if
  • product orgin:

    china
  • brand:

    RONGWIN
  • shipping port:

    Shanghai, Nanjing , Qingdao ,Ningbo, Any China port
  • payment:

    pay
  • color:

    optional
  • description
  • components
  • technical parameters

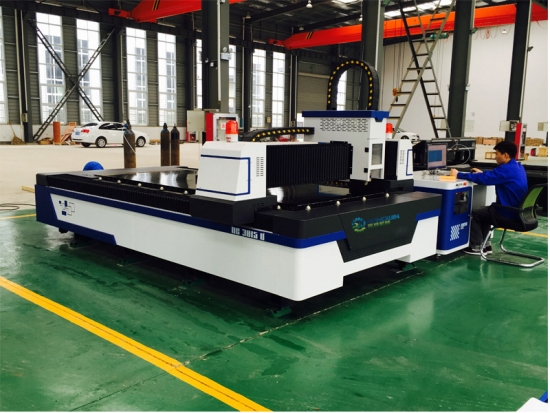

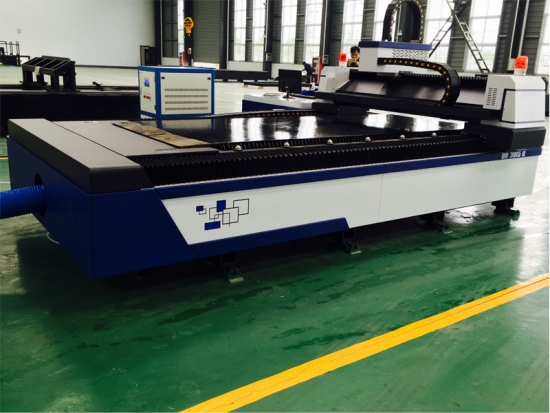

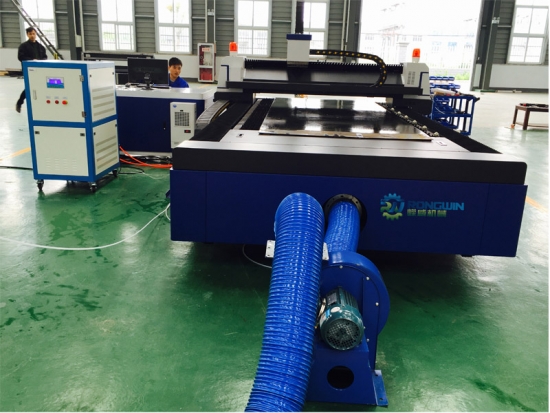

1000W Double Drive Open Type Fiber Laser Cutting Machine


Main Features of this kinds of Double Drive Open Type Fiber Laser Cutting Machine


1)Open type design is convenient for loading and unloading;

2)Single working table saves space greatly;

3)Drawer-type tray makes the collecting and cleaning of scraps and small parts easily;

4)The world’s leading fiber laser resonator and electronic components ensures superior stability.

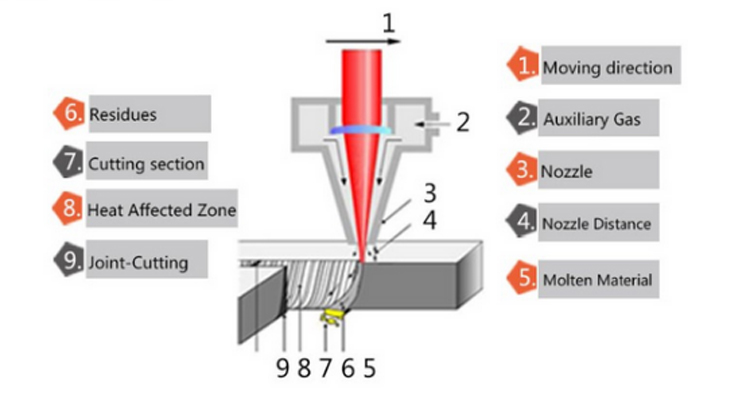

 Double Drive Open Type Fiber Laser Cutting Machine Principle

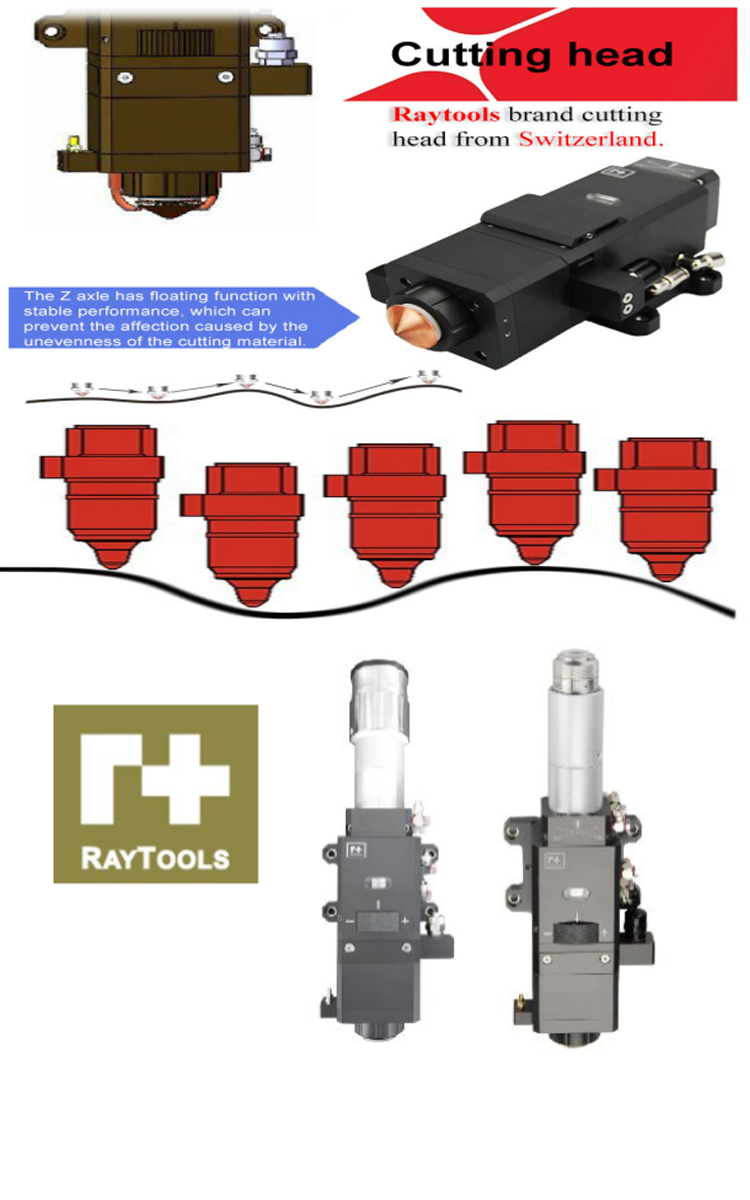

Details of Laser Cutting Head Information :

Standard package is Raytools AG from Switzerland,Precitec laser head is available.

We stopped use Lasermech torch, because too many copies on market, and users don’t know it is original or not.

We only use original parts on our machine......like laser head, planetary gearbox, gear rack, rail...etc.The machine stability tells truth

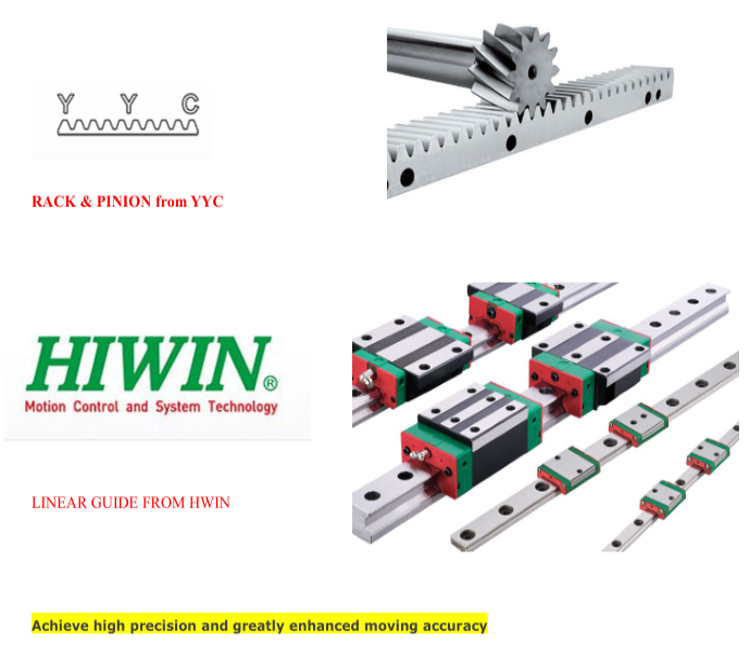

How we guarantee higher accuracy of the Fiber Laser Cutting Machine

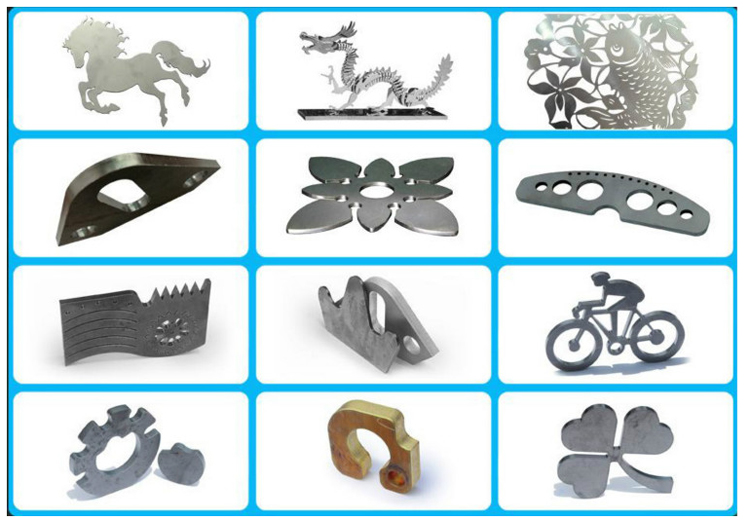

The Cutting Sample photo image of 1000W Double Drive Open Type Fiber Laser Cutting Machine

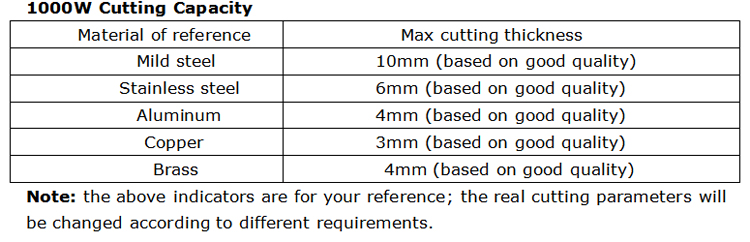

1000W Fiber Laser Cutting Machine's Cutting Capacity



Warranty of 1000W Double Drive Open Type Fiber Laser Cutting Machine

Warranty period:

From the acceptance qualified date, the warranty period will be 3 years.



After sales service of 1000W Double Drive Open Type Fiber Laser Cutting Machine

1)Assign our technology engineer to check the factory environment,to ensure that if it is accord with installation requirements.

2)Offer a training course how to operate the machine and maintain it.

3)24-hour service hot line, life-long maintenance , affordable spare parts supply.

4)After the warranty period, our company still provides extensive and favorable technical support and spare parts.

5)Free software upgrades.


Packaging & Delivery

PP Packing Details : China famous brand 1000w fiber laser cutting machine

S Worthy packing : LCL in wooden case. FCL fixed in container directly. Delivery Time 30 working days



Advantage of Fiber laser cutting machine:


A Low cost in Use : Power consumption is only 20%~30% of CO2 Laser

B.Fast Speed :2 or 3times faster than YAG and CO2 laser

C.High accuracy: Fine laser beam, slim kerf

D.Maintenance :Almost Zero Maintenance cost

E Rational Structure and Easy Operation























1000W Double Drive Open Type Fiber Laser Cutting Machine

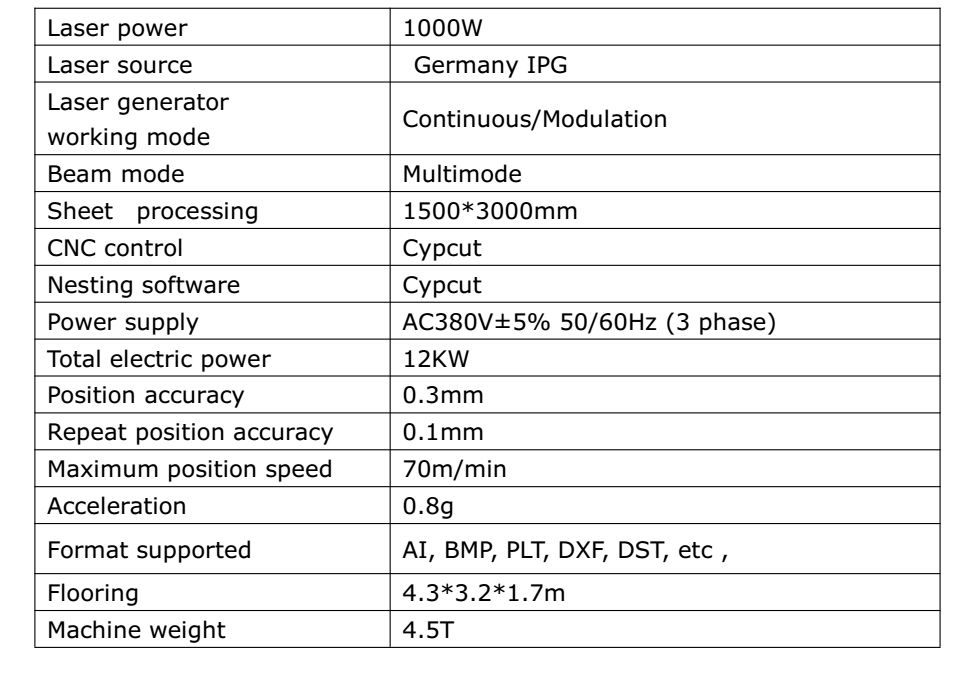

Parameters Specification
