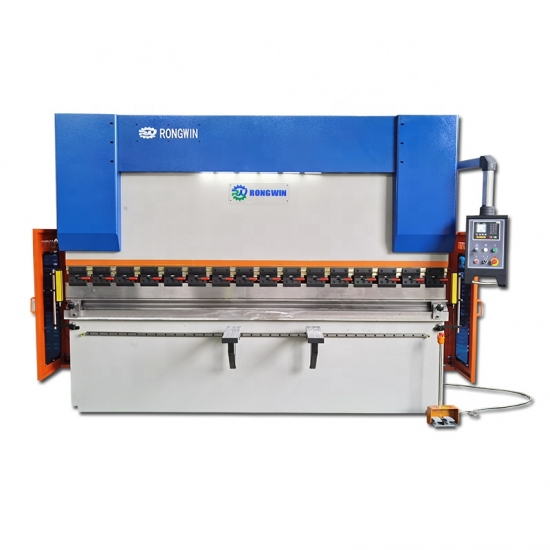

200T NC Sheet Metal Hydraulic Press Brake Machine

Our NC Press Brake Machine has NC controller, our machine tonnage range is from 30Ton-600Ton , The Press Brake standard working length is from 1.3 meters to 6 meters, The bending metal thickness is upto 20mm thickness . We can use ESTUN brand E21 NC controller, also we can use Germany ELGO NC controller.

item no.:
WD67Y-200T/3200
lead time:
30 DAYS
brand:
RONGWIN
shipping port:
SHANGHAI PORT
payment:
T/T , L/C

contact now

description
components
technical parameters

200T NC Sheet Metal Hydraulic Press Brake Machine

The Main feature of Hydraulic NC Press Brake Machine

Ⅰ、Hydraulic system

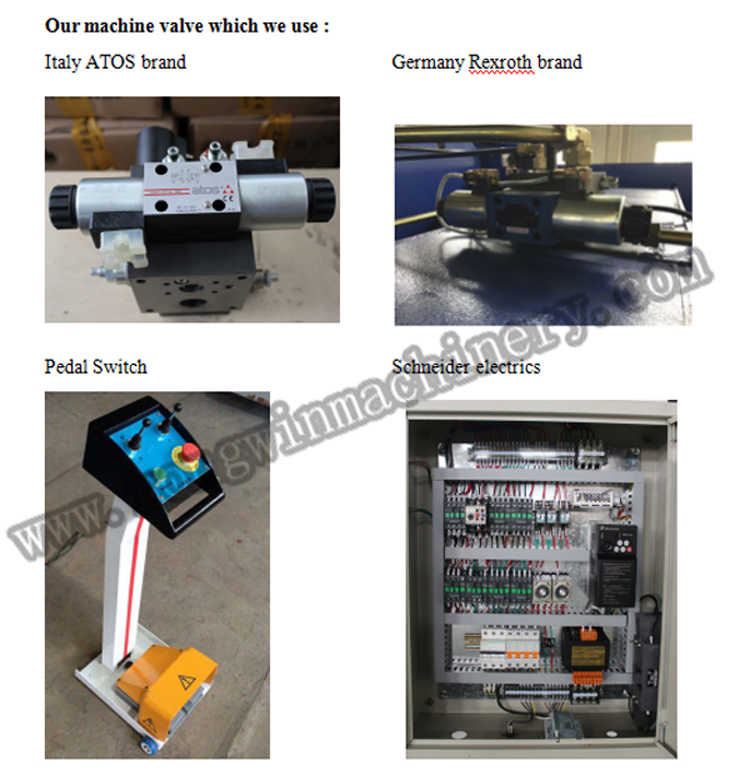

1.hydraulic valve use Italy ATOS brand ;
2.Main motor use China SHUANGTA brand ;
3.Oil gear pump use USA Sunny brand,low noise, good quality;
4.Seal ring use Taiwan DZ brand, sealing performance, reliable, long life；5．There are clear and intuitive oil level and oil temperature display；

Ⅱ、Electrical Control System

1．Electrical adopt France Schneider brand；
2．With a movable foot switch operation, safety key to start machine, machine install emergency button.

Ⅲ、Backgauge

1.Backgauge use ball screw and axis guide to improve accuracy.
2.Backgauge driven by motor with digital display;
3.Our machine add frequency inverter, X axis can one time positioning, if do not add this part, X axis cannot one time positioning.

Ⅳ、Mould and clampers

1.Standard with a multi vee bottom die and punch that is attached to the upper ram with normal change punch clamper.
2.Equipped with precision compensation mechanism on the upper-die,can adjustable if necessary ,workpieces can get high bending precision.

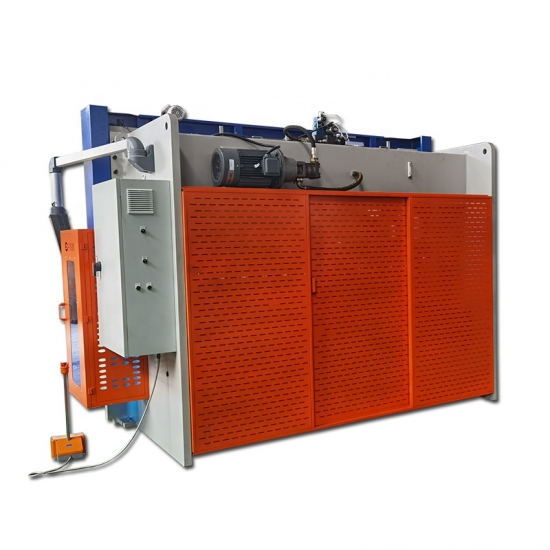

The detail image of Hydraulic Press Brake Machine

FAQ

A)Are you factory or manufacture?
YES . We are group factories agent exporting company .we have more than 10 directly factories.

B)What’s your delivery time ?
30 days for machine and 20 days for tools and blades ,and spare parts after confirmed order with payment

C)What’s kinds of shipping you choose after order ?

Usually we choose FCL, Or LCL by sea .
We also can supply door to door shipping service by air or international express .

D)Which kinds of Payment and MOQ ?
We can accept TT,LC or Trade assurance .
MOQ:1 set for machine order

E)What’s your packing ?
Fumigation-free plywood case for small machine in LCL Shipment by sea ,and blades and tools and spar parts .
If FCL shipping by sea we just professional fixed in container without cover.

F)What’s your Warranty Time ?
THREE Year Warranty for machine ,Lifelong maintenance.
During warranty time which the broken parts and spares caused by quality can be Offered free .

G)Can you support overseas commissioning or training service ?
YES .We CAN .But the buyer need to afford this cost , tickets and foods, hotel etc .

Standard configuration of NC Hydraulic Press Brake Machine

1	Electronic components	Schneider electrical component + frequency inverter

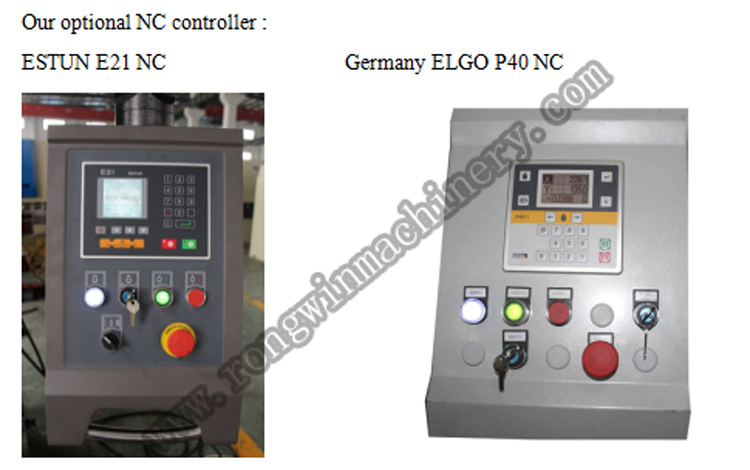

2	NC Controller	ESTUN E21, English language display; ELGO P40
3	Hydraulic Valve	hydraulic valve use Italy ATOS brand
4	Pump	Oil gear pump use USA Sunny brand
5	Main motor	China Shuangta brand
6	Clip sets joints	Germany EMB or Rubber Hose

Technical parameter of WD67Y-200/3200T NC Sheet Metal Hydraulic Press Brake Machine

NO.	Name		Unit	Value
1.	Nominal force		KN	2000
2.	Bending length		mm	3200
3.	Distance between columns		mm	2600
4.	Slider strokes		mm	150
5.	Max opening height		mm	450
6.	Throat depth		mm	340
7.	Main motor power		KW	15KW
8.	Slide speed	Quick down	mm/s	60
		Pressing	mm/s	8.0
		Quick back	mm/s	50
9.	Dimension （L×W×H）		mm	(3600×1750×2750)
10.	Machine weight		Kg	10800
