    RONGWIN Hydraulic Punch Press Machine Aluminum Foil Bowl and Container Production Line Efficient Punching Machines

    RONGWIN company can customize the production line of various foil container, you only need to tell us the product style and speed requirements you need to produce, and our engineers will give you a plan that is most suitable for you. Customize the machines and molds you need and give you a one-stop solution. This line includes automatic feeding device, Customized JH21 pneumatic power press and customized moulds for different workpieces.

  • Hydraulic Ironworker
    Q35Y Series Hydraulic Ironworker

    Q35Y Series Mechanical cnc Hydraulic Ironworker for metalworking is designed by the most advanced technology, which has the advantages of easy operation, low consumption and low maintenance cost.

  • laser cutting machine
    RWZL Double Drive Closed Type Exchange Table Laser cutting machine

    Equipped with the most advanced international imported fiber laser source which generates powerful laser focused on objects to cause instant melting and evaporation.Automatic cutting is controlled by digitalied mechanic system.This hi-tech machine has condensed the advanced technologies of fiber laser,digital,and precise mechanics.Applicable to fast cutting on plate or tube in metal,mainly for cutting on SS,carbon steel,Manganese steel ,galvanized plate,alloy plate,rare metal.Widely used in kitchen appliance,electric control box,high-resolute device,mechanical equipment,electrical equipment,lighting,posters,auto parts,display equipment,hardware and metal processing.

  • Press Brake
    Servo Electric Small CNC Press Brake Reliable and Efficient

    1. It adopts all-electric servo design precision folding bed, and has a high-rigidity and stable body design. 2. With high-speed back gauge and precision dual-servo motor spindle drive, it can achieve stable processing with high-speed precision. 3. It cangreatly save 60% of the power used, and there is no need to replace the oil and oil pressure valve regularly. 4. There is noproblem of oil temperature change affecting the machining accuracy, which can reduce the influence of thermal effect. 5. It is suitable for rapid production of small samples and stable processing of a large number of high-speed and high-precision. 6. It can be used in multi-stage continuous combined bending processing, which greatly improves production efficiency.

Hydraulic Iron Worker with punching , notching , angle cutting , bending

Hydraulic Iron Worker machine can do punching ,cutting , bending ,this machine with multi function.
  • item no.:

    Q35Y-16
  • lead time:

    Within 2 days after received payment if
  • product orgin:

    China
  • brand:

    RONGWIN
  • shipping port:

    Shanghai
  • color:

    optional
  • description
  • components
  • technical parameters

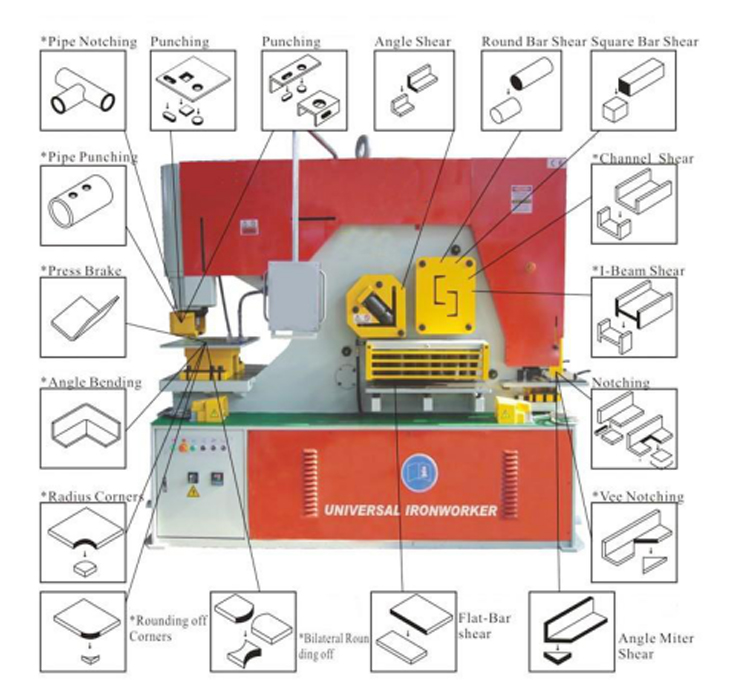

Hydraulic Iron Worker with punching , notching , angle cutting  , bending


1.Punching

Full range of universal punches and dies are available.unique style allows for large

angle iron punching and large channel punching.

Large viewing window on stripper swing away design for ease of operation.

large two piece gauging table with rulers and stop as standard fittings.

Quick change coupling nut and sleeve for rapid replacement of change.

2.Shearing

Round and square bar shear has multiple holes for a variety of sizes.Adjustable

hold down device for round/square bar,channel/beam cutting.Large strong

guarding for max safety.

The angle shear has the ability to cut angle at 45°both top and bottom leg.

This gives the operator the ability to make a picture frame corner for perfect

welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity.

Easily adjustable hold-down device for accurate plate cutting.Large 15squaring

arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade

has four usable edges.There is screw allow for gap adjust no shim needed.



3.Notching

Unique design allows for cutting of angle and flat bar.Electrical interlock safety

guard and three gauging stops for precise positioning.

1. Bending

Can also bend the plate below 500mm.

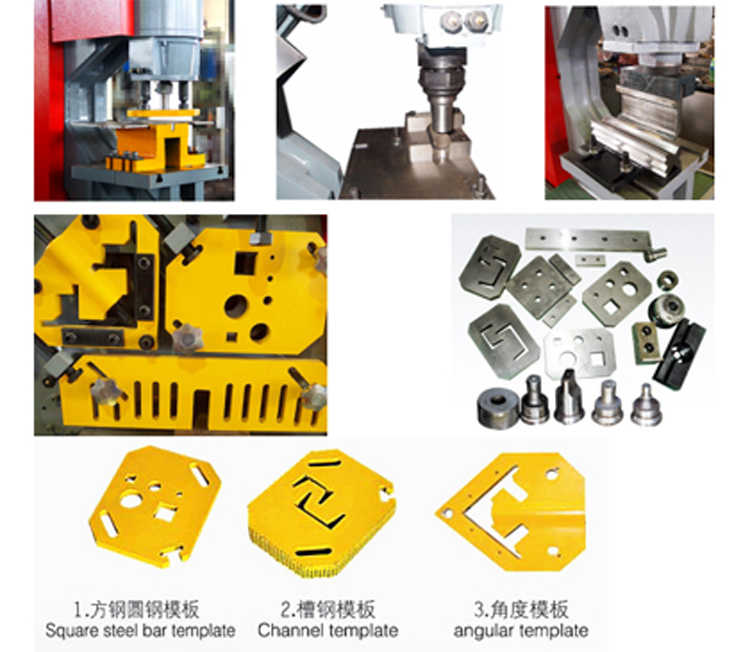

Standard accessories on machine

1. A pair of punch die

2. A set of angle steel blade

3. A set of square and round bar blade

4. A set of shearing plate blade

5. A set of notching blade

6.A set of bending die.


Besides of Q35Y-16 Mold Hydraulic Iron Worker with punching , notching , angle cutting  , bending.

Please check all models of  Hydraulic Ironworker Technical Parameter as following



Model

Q35Y-16

Q35Y-20

Q35Y-25

Q35Y-30

Q35Y-40

Q35Y-50

Punching Pressure(T)

60

90

120

160

200

  250

Max Shearing Thickness

(mm)

16

20

25

30

40

50

Plate Strength(N/mm2)

≤450

≤450

≤450

≤450

≤450

≤450

Shearing Angle

  8°

Flat Bar(H*W)(mm)

16×250

8×400

20×330

10×480

25×330

16×660

30×355

20×600

35×380

25×700

40×400

30×750

Ram Stroke(mm)

80

80

80

80

80

  100

Number of Stroke

(times/min)

6

8

6

6

8

   8

Throat Depth(mm)

300

355

400

600

600

  600

Punching Thickness

(mm)

16

20

25

26

30

   35

Max Punching Diameter(mm)

25

30

35

38

40

   45

Main Motor Power (kw)

4

5.5

7.5

11

15

 18.5

Overall Dimensions

L×W×H(mm)

1650×800×1780

1950×900×1930

2350×980×2100

2680×1060×2380

2800×1160×2400

3000×1440×2450

Weight(kg)

1900

2600

4800

6800

9200

 12800


Hydraulic Iron Worker with punching , notching , angle cutting  , bending

Technical Data of Q35Y-16 Ironworker

NO

Function

Item

Unit

Q35Y-16

1

shearing plate

Angle of shearing

°

7°

Max. shearing thickness

mm

16

Flat bar(W)

mm

16x250

8x400

2

shearing bar

Round steel

mm

45

Square bar

mm

40x40

90°shearing of equal-angle bar

mm

120×120×12

45°shearing of equal-angle bar

mm

70×70×8

90°shearing of T-bar

mm

1260×10

45°shearing of T-bar

mm

6610

I beam steel

mm

126×74×5

channel steel

mm

126×53×5.5

3

Notch

Max thickness

mm

10

Max diameter

mm

57

depth

mm

100

4

punching hole

Max. punching thickness

mm

16

Max. diameter of punching

mm

25

Punching force

Ton

60

Depth of throat

mm

300

Max. length of cylinder stroke

mm

80

Stroke times

times/min

12-28

5

Material strength

N/mm2

≤450

6

Motor power

KW

5.5

7

Overall dimensions (mm)

mm

170750×1800

8

Net. weight

KG

1800
