Manual type Normal Press Brake

This Normal Press Brake is used to bending metal, this machine is without NC or CNC controller, this machine has motorized back gauge and motorized Y axis function.
  • item no.:

    WC67Y-200T3200
  • lead time:

    Within 2 days after received payment if
  • product orgin:

    China
  • shipping port:

    Shanghai
  • color:

    optional
  • description

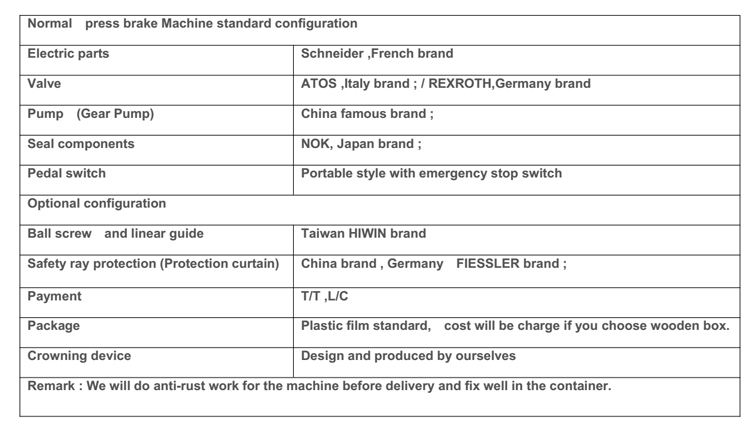

  • components
  • technical parameters

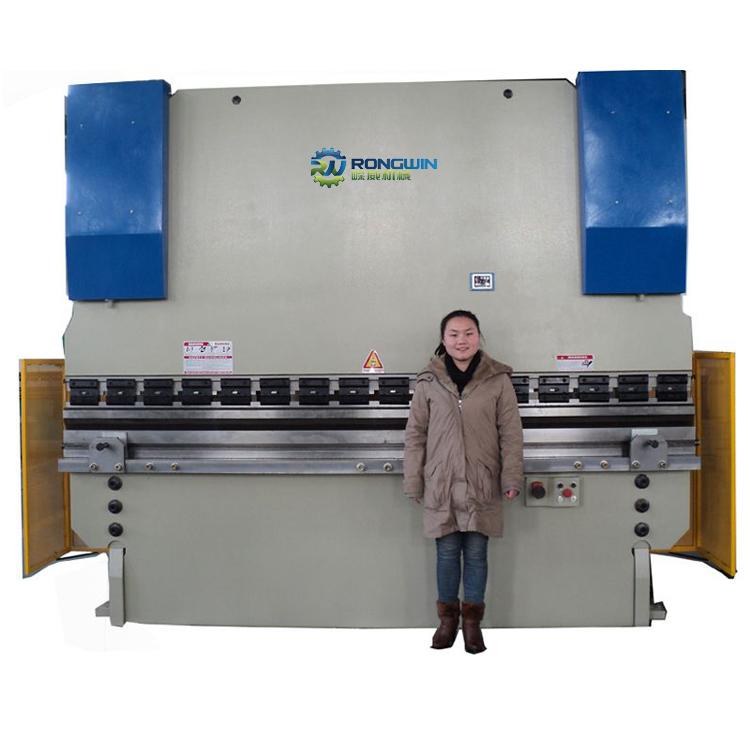

Manual Press Brake 200T/3200


Main Features of Manual Press Brake

Machine function: This press brake is for bending metal plate to required shape and angle;

1): Aging treatment  to optimize the entire steel structure

2):Mechanical display

3):Stroke and backgauge controlled by manual

4): Torsion bar press brake

5):Fine-adjustment of bending angle is easy to operate

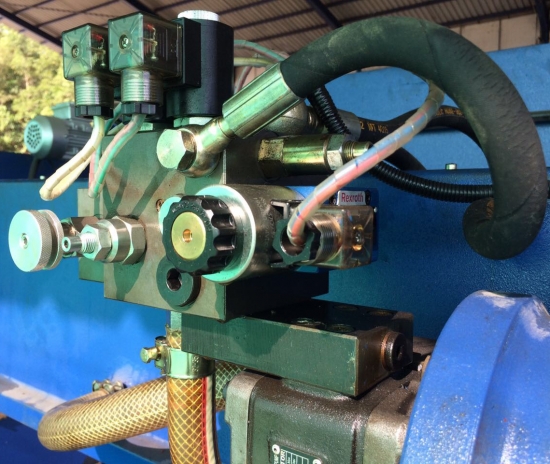

6): Remote pressure regulating valve is set on the machine side , easy to adjust


Details Specification of Manual Press Brake


Technical parameter  of  other model of Manual Press Brake

Model

(WC67Y-series)

Nominal Pressure

(mm)

Workbench Length

(mm)

Poles distance(mm)

Throat depth

(mm)

Slipper  Stroke

(mm)

Max Opening Height

(mm)

Main motor

(KW)

Dimension

(L×W×H)(mm)

30T/1600

300

1600

1250

170

90

195

3

1600×920×1660

30T/2050

300

2050

1450

170

90

195

3

2050×920×1660

40T/2200

400

2200

1850

245

100

330

5.5

2260×1200×1950

40T/2500

400

2500

2150

245

100

330

5.5

2560×1200×1950

50T/2500

500

2500

2150

245

100

330

5.5

2560×1200×1950

63T/2500

630

2500

2000

250

120

350

5.5

2560×1350×2120

80T/2500

800

2500

2000

250

120

350

7.5

2560×1350×2120

80T/3200

800

3200

2580

250

120

350

7.5

3260×1350×2120

80T/4000

800

4000

2980

250

120

350

7.5

4060×1350×2250

100T/2500

1000

2500

2000

300

130

400

7.5

2560×1465×2300

100T/3200

1000

3200

2580

300

130

400

7.5

3260×1465×2300

100T/4000

1000

4000

2980

300

130

400

7.5

4060×1465×2300

125T/2500

1250

2500

2000

300

130

400

11

2560×1465×2350

125T/3200

1250

3200

2580

300

130

400

11

3260×1465×2350

125T/4000

1250

4000

2980

300

130

400

11

4060×1465×2350

160T/3200

1600

3200

2580

340

150

450

11

3260×1620×2700

160T/4000

1600

4000

2980

340

150

450

11

4060×1620×2700

160T/5000

1600

5000

4000

340

150

450

11

5060×1620×2850

160T/6000

1600

6000

5000

340

150

450

11

6060×1620×3000

200T/3200

2000

3200

2580

340

150

450

15

3260×1620×2700

200T/4000

2000

4000

2980

340

150

450

15

4060×1620×2850

200T/5000

2000

5000

4000

340

150

450

15

5060×1620×2850

200T/6000

2000

6000

5000

340

150

450

15

6060×1620×3000

250T/3200

2500

3200

2580

400

200

500

18.5

3260×1700×2900

250T/4000

2500

4000

2980

400

200

500

18.5

4060×1700×2900

250T/5000

2500

5000

4000

400

200

500

18.5

5060×1700×3000

250T/6000

2500

6000

5000

400

200

500

18.5

6060×1800×3200

300T/3200

3000

3200

2580

400

200

520

22

3260×2000×3000

300T/4000

3000

4000

2980

400

200

520

22

4060×2000×3000

300T/5000

3000

5000

4000

400

200

520

22

5060×2000×3200

300T/6000

3000

6000

5000

400

200

520

22

6060×2100×3400

350T/3200

3500

3200

2580

400

250

570

22

3260×2000×3000

350T/4000

3000

4000

2980

400

250

570

22

4060×2000×3000

350T/5000

3000

5000

4000

400

250

570

22

5060×2000×3200

350T/6000

3000

6000

5000

400

250

570

22

6060×2100×3400

400T/3200

4000

3200

2580

400

250

580

22

3260×2000×3100

400T/4000

4000

4000

2980

400

250

580

22

406×2100×2900

400T/5000

4000

5000

4000

400

250

580

22

5060×2000×3300

500T/4000

5000

4000

2980

500

300

640

37

4100×2300×3600

500T/5000

5000

5000

4000

500

300

640

37

5100×2450×4000

500T/6000

5000

6000

5000

500

300

640

37

6100×2450×4200

600T/4000

6000

4000

2980

500

300

660

45

4100×2300×3600

600T/5000

6000

5000

4000

500

300

660

45

5100×2450×4000

600T/6000

6000

6000

5000

500

300

660

45

6100×2450×4200


Technical parameter of Manual Press Brake WC67Y- 200T/3200

No.

Name

Amount

Unit

Remark

1

Nominal pressure

2500

KN



2

Workbench length

3200

mm



3

Workbench width

300

mm



4

Pole distance

2600

mm



5

Throat depth

400

mm



6

Slipper stroke

120

mm



7

Wallboard thickness

60

mm



8

Slipper thickness

70

mm



9

Support board thickness

70

mm



10

Max opening height

 560

mm



11

Max back gauge range

700

mm



12



Oil pump power

(gear pump )

Model

NT4-G 63F





13

Flow capacity

63

L/min



14

Pressure

31.5

MPa



15

Workbench thickness

90

mm



16

Main motor power

18.5

KW



17

Weight

13.3

T



18

Dimension

3200×2000×3100mm

L×W×H
