RONGWIN Hydraulic Punch Press Machine Aluminum Foil Bowl and Container Production Line Efficient Punching Machines
RONGWIN company can customize the production line of various foil container, you only need to tell us the product style and speed requirements you need to produce, and our engineers will give you a plan that is most suitable for you. Customize the machines and molds you need and give you a one-stop solution. This line includes automatic feeding device, Customized JH21 pneumatic power press and customized moulds for different workpieces.
Q35Y Series Hydraulic Ironworker
Q35Y Series Mechanical cnc Hydraulic Ironworker for metalworking is designed by the most advanced technology, which has the advantages of easy operation, low consumption and low maintenance cost.

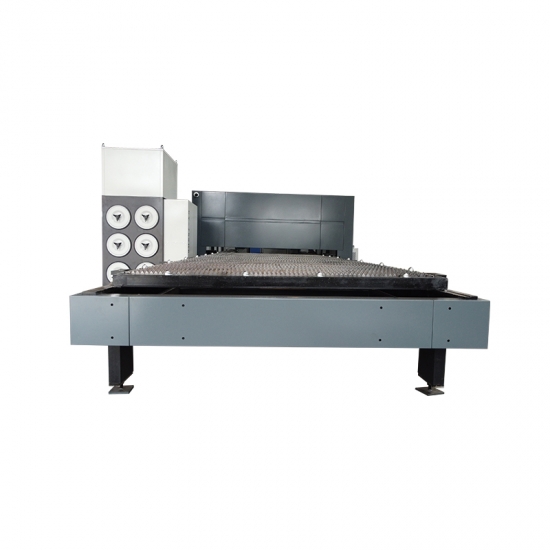

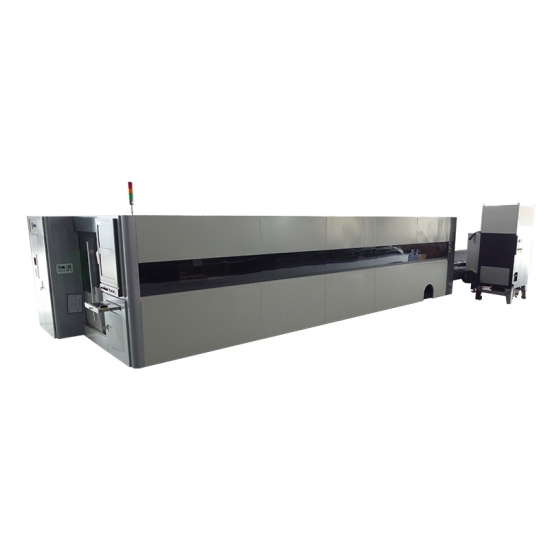

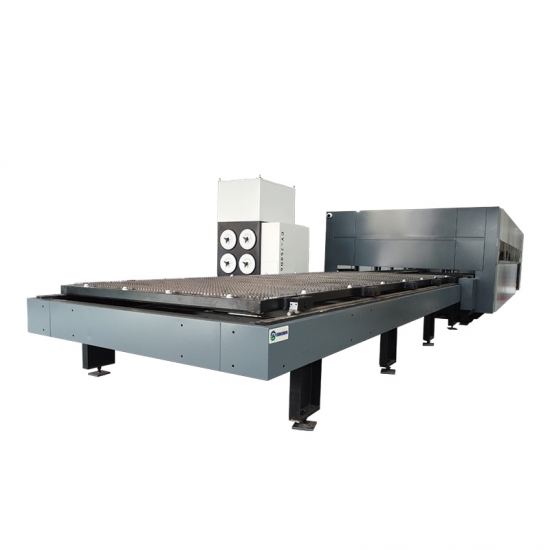

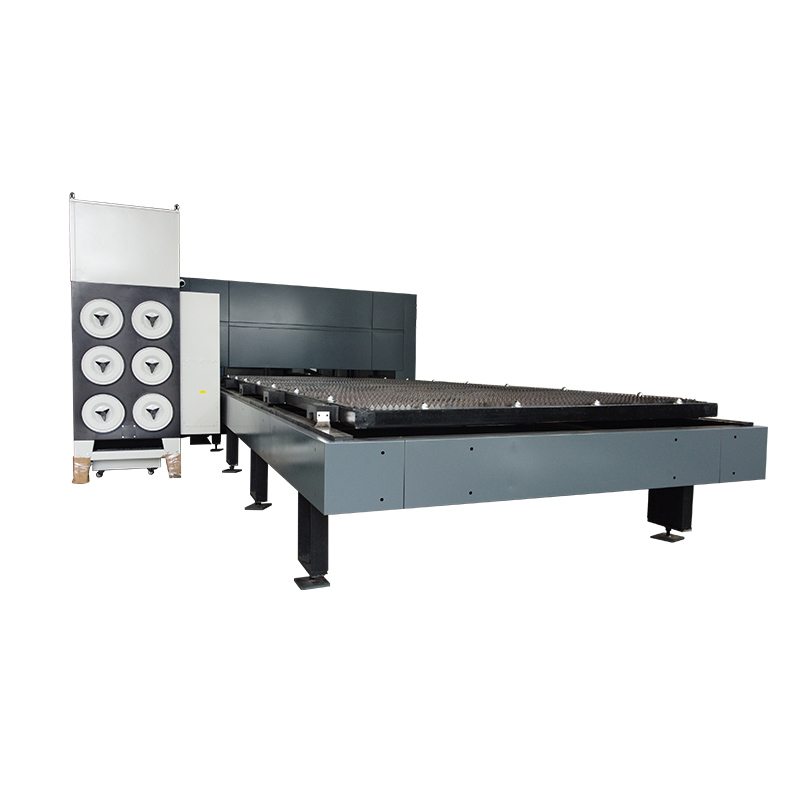

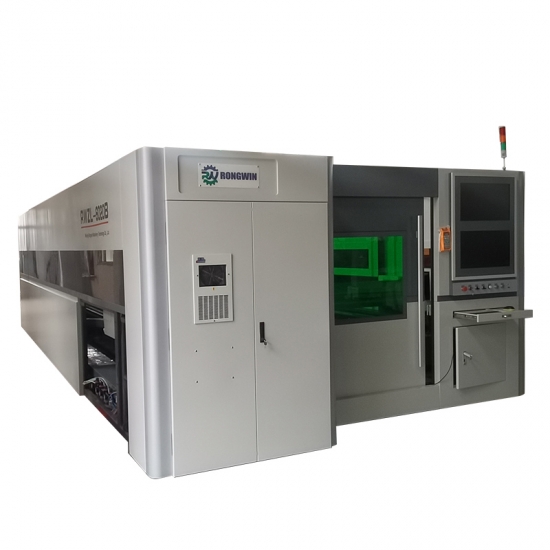

RWZL Double Drive Closed Type Exchange Table Laser cutting machine
Equipped with the most advanced international imported fiber laser source which generates powerful laser focused on objects to cause instant melting and evaporation.Automatic cutting is controlled by digitalied mechanic system.This hi-tech machine has condensed the advanced technologies of fiber laser,digital,and precise mechanics.Applicable to fast cutting on plate or tube in metal,mainly for cutting on SS,carbon steel,Manganese steel ,galvanized plate,alloy plate,rare metal.Widely used in kitchen appliance,electric control box,high-resolute device,mechanical equipment,electrical equipment,lighting,posters,auto parts,display equipment,hardware and metal processing.
Servo Electric Small CNC Press Brake Reliable and Efficient
1. It adopts all-electric servo design precision folding bed, and has a high-rigidity and stable body design. 2. With high-speed back gauge and precision dual-servo motor spindle drive, it can achieve stable processing with high-speed precision. 3. It cangreatly save 60% of the power used, and there is no need to replace the oil and oil pressure valve regularly. 4. There is noproblem of oil temperature change affecting the machining accuracy, which can reduce the influence of thermal effect. 5. It is suitable for rapid production of small samples and stable processing of a large number of high-speed and high-precision. 6. It can be used in multi-stage continuous combined bending processing, which greatly improves production efficiency.

Video

RONGWIN shows you Bending function demonstration of EP1208-S -12T/800 electric press brake

RWZL Double Drive Closed Type Exchange Table Laser cutting machine

Equipped with the most advanced international imported fiber laser source which generates powerful laser focused on objects to cause instant melting and evaporation.Automatic cutting is controlled by digitalied mechanic system.This hi-tech machine has condensed the advanced technologies of fiber laser,digital,and precise mechanics.Applicable to fast cutting on plate or tube in metal,mainly for cutting on SS,carbon steel,Manganese steel ,galvanized plate,alloy plate,rare metal.Widely used in kitchen appliance,electric control box,high-resolute device,mechanical equipment,electrical equipment,lighting,posters,auto parts,display equipment,hardware and metal processing.

lead time:
More than 30 days
product orgin:
China
shipping port:
shanghai
payment:
TT,LC
price range:
10-20/4800$
price range:
1-10/5000$

contact now

description
components
technical parameters

1.Double exchange platform saves time of loading and unloading.

2.High speed to improve work effciency.

3.Electrical control system adopts international famous brand:Schneider and IMRON etc.

4.The guide rail and rack are calibrated by precision collimating instrument,and the precision is achieved±0.03mm.

5.Using the Japanese intelligent gas group design,can automatically adjust pressure,automatic ventilation,pressure detection.

6.The whole machine is tempered at high temperature,the internal stress is eliminated with the furnace cooling,and the imported gantry milling finishing,ensure normal use of 20 years without deformation.

FSCUT 2000E system

Which has powerful computing ability and ensures high stability With automatic nesting function, Maximum material savings

Laser source
1.Provide a variety of China famous brand of laser source
2.High stability, life up to 100,000 hours
3.The best after-sales warranty, free you from worries

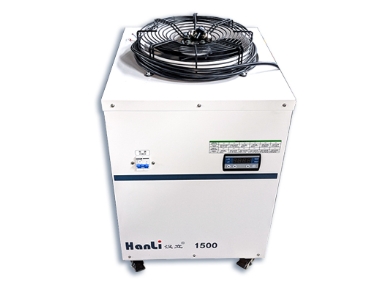

Water Chiller
1.Using domestic first-class brand,professional laser chiller, good stability,high precision.
2.With two way temperature control,the laser and the cutting head can be controlled at different temperatures,the stability of the laser and the cutting head can be guaranteed more effectively.
3.This function includes: pressure alarm, high and low temperature alarm,abnormal voltage alarm, and fault alarm etc.

Industrial Machine bed
1. Machine body are processed by high accuracy metal machining center.
2. Our beds are made by hightemperature quenching, tempering, cooling and so on .
3. Welded industrial body ,heavy weight

Handheld wireless remote control
1.It can carry out follow-up control in all directions. The operation is simple and convenient.
2.Improve operator productivity.

Model	RWZL-3015B	RWZL-4015B	RWZL-4020B	RWZL-6015B	RWZL-6020B	RWZL-6025B
Processing size(mm)	1520×3030	1520×4040	2030×4040	1520×6050	2030×6050	2530×6050
Weight(KG)	8000	8500	9000	9500	12000	15000

Laser Type:Fiber Laser

Cutting Speed:140m/min

Cooling Mode:WATER COOLING

Control System Brand:Cypcut

Other attributes

Applicable Material:Metal, fiber laser metal cutting machine

Condition:New

Cutting Area:3000mm*1500mm

Place of Origin:Anhui, China

Laser Source Brand:IPG

Weight (KG):8000 KG

Key Selling Points:Long Service Life

Warranty:3 years

Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company, fiber laser metal cutting machine

Mode of Operation:continuous wave

Configuration:gantry type

Products handled:Sheet Metal and Tube

Feature:Water-cooled

Application:LASER CUTTING

Graphic Format Supported:AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Cutting Thickness:Materials

CNC or Not:Yes

Control Software:Cypcut

Brand Name:RONGWIN

Laser Head Brand:Precitec

Servo Motor Brand:Panasonic

Guiderail Brand:HIWIN

Optical Lens Brand:II-VI

Machinery Test Report:Provided

Video outgoing-inspection:Provided

Warranty of core components:3 years

Core Components:Pressure vessel, Motor, Bearing, Gear, Pump, Engine, PLC

Application meterial:Metal

Product name:fiber laser metal cutting machine

Cutting Head:Raytool Cutting head from Switzerland

Drive Mode:Double Drive

Keyword:laser cutting machine

Brand Name:Rongwin

Laser power:500W / 1000W / 2000W / 3000W/4000W/6000W

Laser Source Brand:RAYCUS/IPG/MAX/GW

Cooling Mode:Water Cooling

Working area:1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm/ 2500mmmX8000mm

Packaging and delivery

Packaging Details:Sea worthy packing .LCL in wooden case .FCL fixed in container directly.fiber laser metal cutting machine

Supply Ability

Supply Ability:20 Set/Sets per Month
