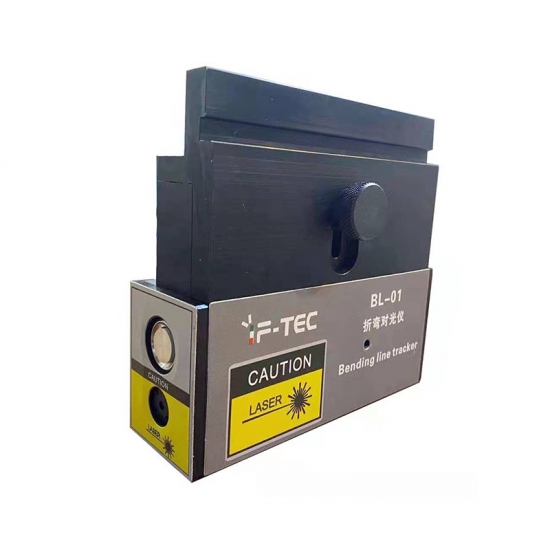

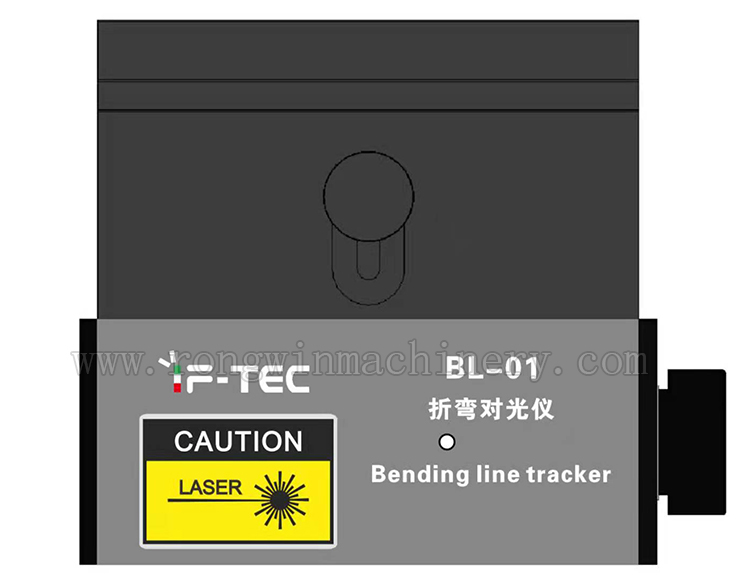

RONGWIN Press Brake Alignment Tooling for Irregular & Complex Workpieces

The RONGWIN press brake laser alignment tool projects a high-definition visual laser line directly onto the workpiece surface to simulate the precise bending axis in real time. Operators can effortlessly align and bend complex parts by referencing this clear guide. Featuring ultra-bright, uniform, and straight laser line projection, it cuts workpiece positioning time by at least 67%—virtually eliminating manual alignment errors and making it the ultimate tool for irregular and custom sheet metal bending.

lead time:
15 working days
product orgin:
China
brand:
RONGWIN
shipping port:
Shanghai
payment:
TT
color:
Customized

contact now

description
components
technical parameters

Key Features of RONGWIN Press Brake Laser Alignment Tool

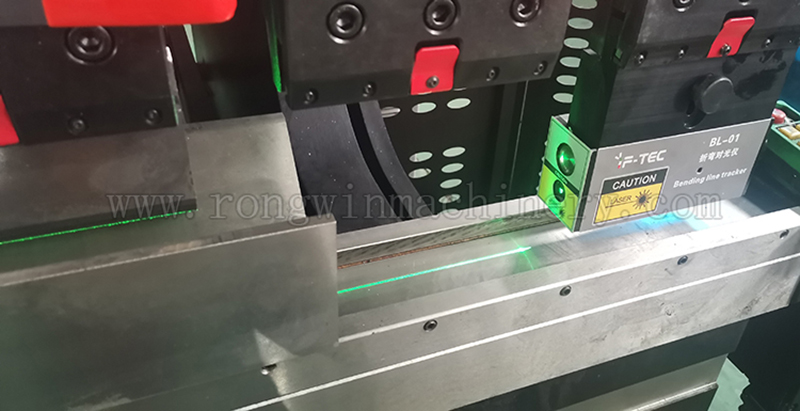

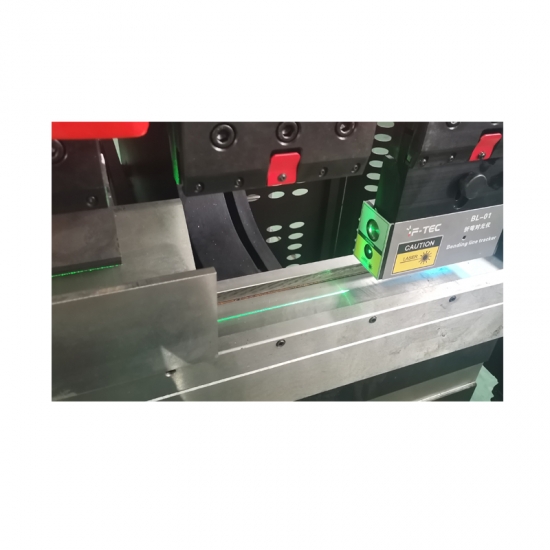

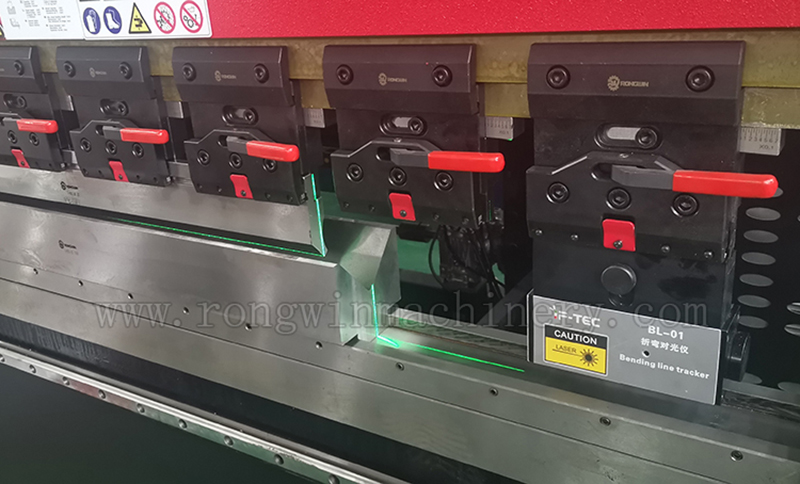

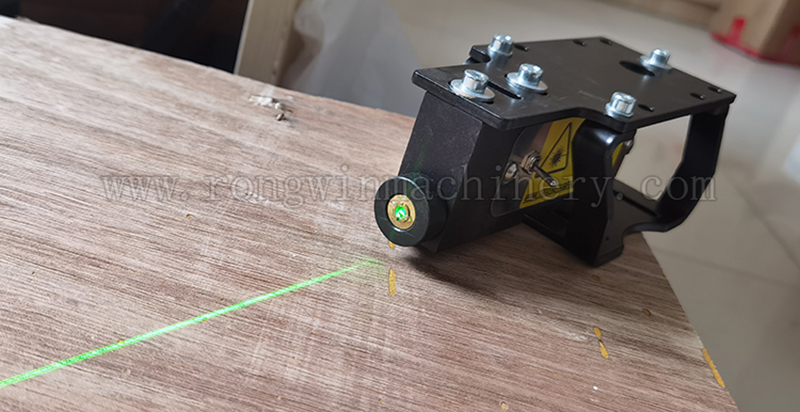

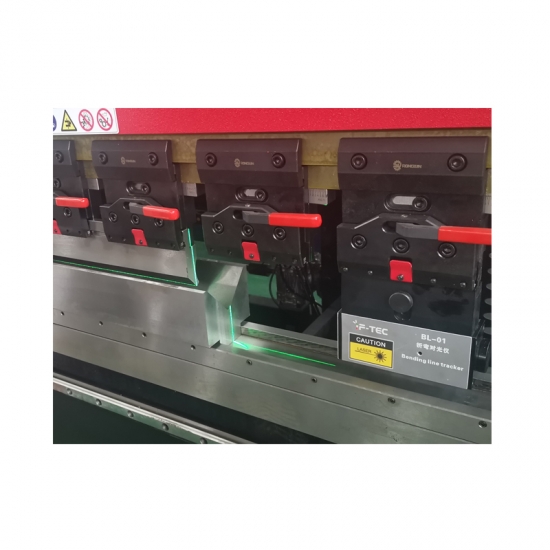

The RONGWIN press brake laser alignment tool projects a high-definition visual laser line directly onto the workpiece surface to simulate the precise bending axis in real time. Operators can effortlessly align and bend complex parts simply by referencing this clear guide. Featuring ultra-bright, uniform, and straight laser line projection, it cuts workpiece positioning time by at least 67%—virtually eliminating manual alignment errors and making it the ultimate tool for irregular and custom sheet metal bending.

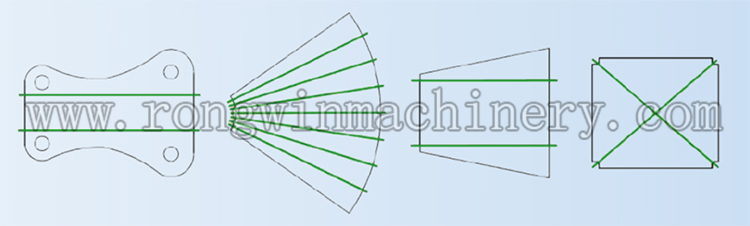

Ideal Applications for RONGWIN Laser Bending Alignment Tool

The RONGWIN laser alignment guide is engineered for diverse complex and custom bending scenarios:

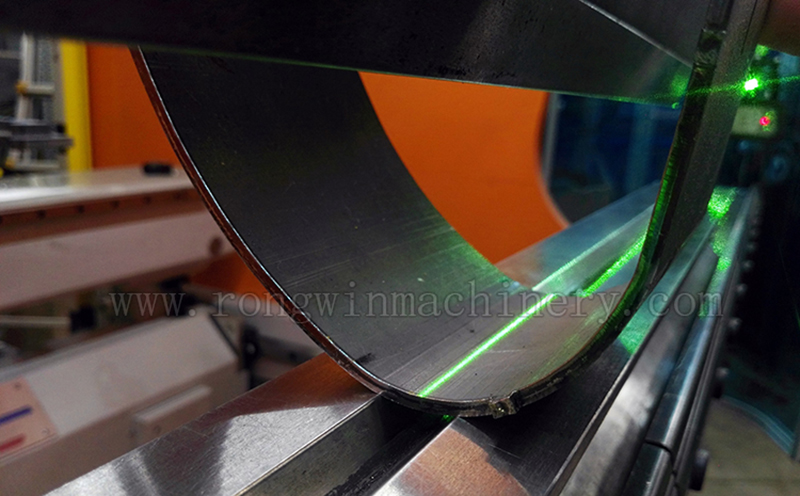

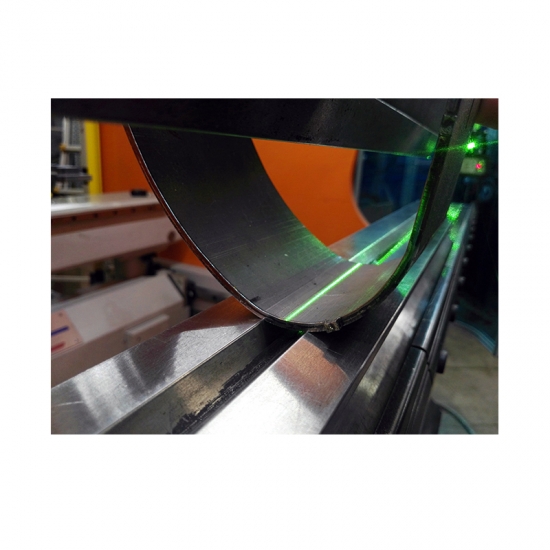

• Multi-Step & Progressive Bending: Accelerates continuous step-bending and segmented radius forming.
• Conical & Tapered Parts: Seamlessly aligns non-parallel bends on funnels, hoppers, and transition ducts.
• Cross & Diagonal Stiffening Bends: Accurately guides diagonal X-rib reinforcement bends on thin sheet panels without backgauge referencing.

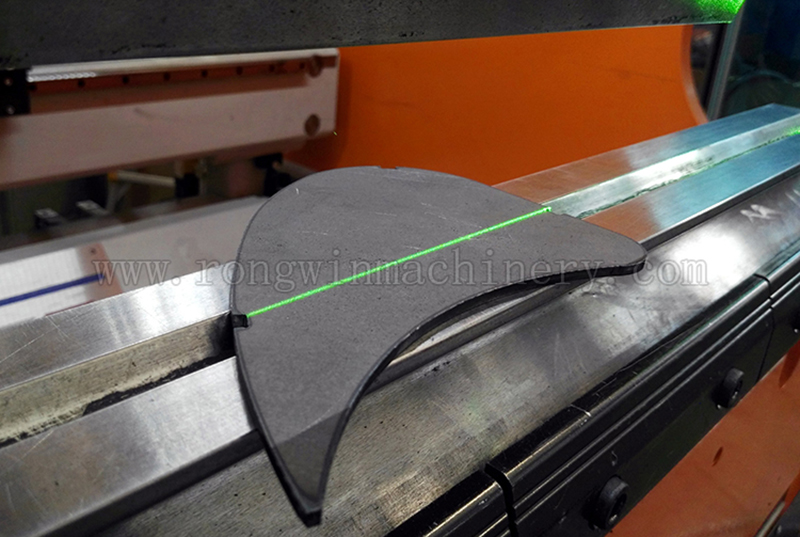

• Irregular & Asymmetrical Workpieces: Delivers precise alignment for odd-shaped, triangular, or multi-angled blanks that lack straight reference edges.
• Pre-Marked & Engraved Sheet Bending: Easily aligns with laser-etched bending marks, notch lines, or custom layout guides.
• Rapid Prototyping & Emergency Jobs: Enables immediate, on-the-fly bending for urgent one-off prototypes and small batches—eliminating tedious CNC programming and backgauge setup.

Flexible Mounting & Installation Options

The RONGWIN laser alignment guide offers versatile mounting configurations tailored to your press brake setup and workshop preferences:

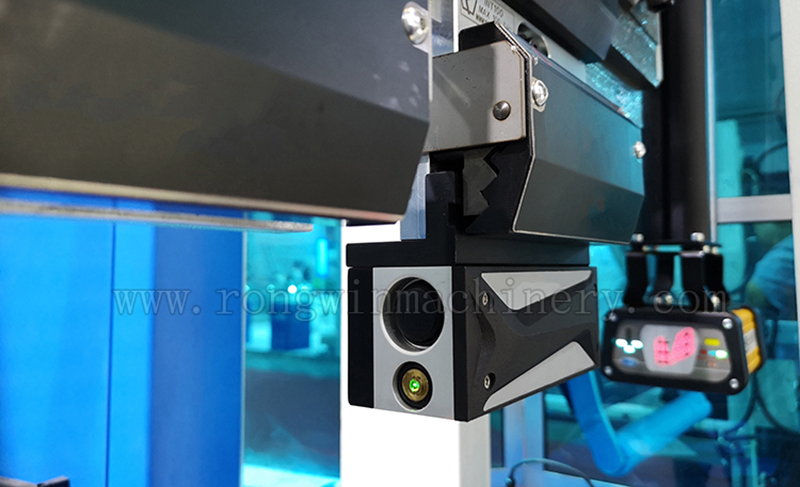

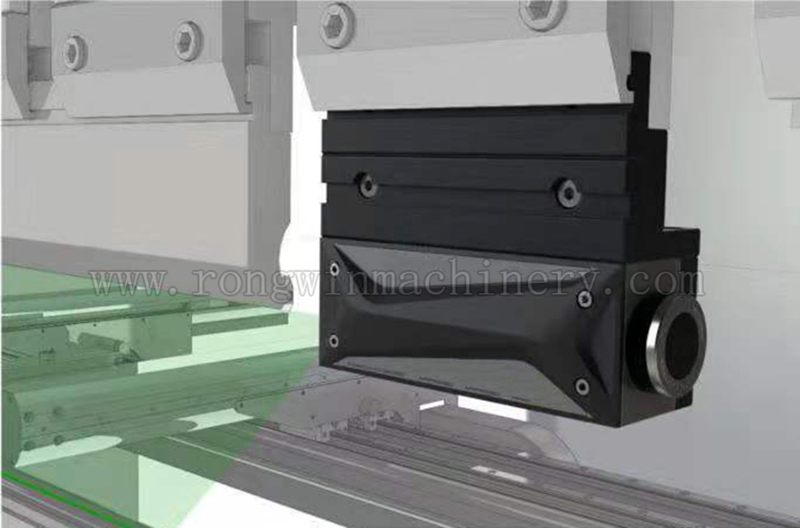

• Option 1: Tool Clamp Mounting (Upper Punch Clamping Block)
Directly attaches to the upper punch quick-clamping holder. This setup moves synchronously with the upper ram, providing seamless line projection directly in line with the punch tip.

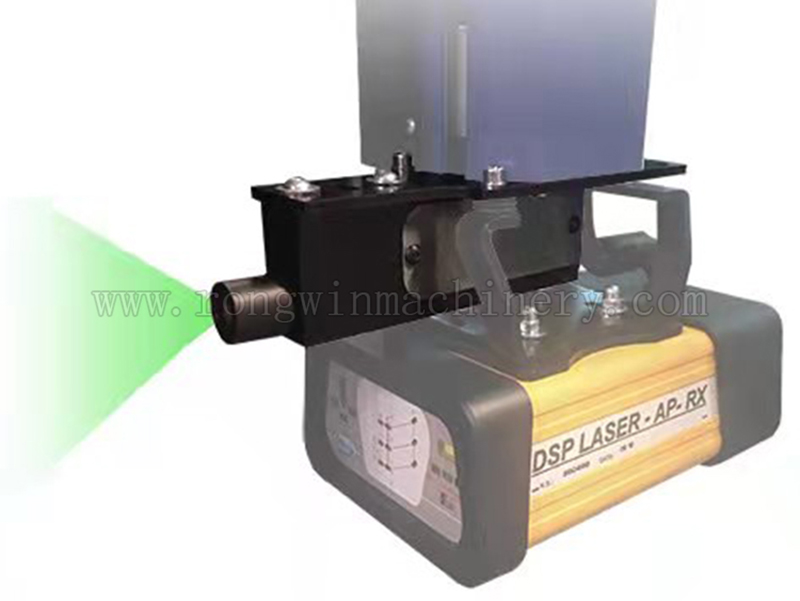

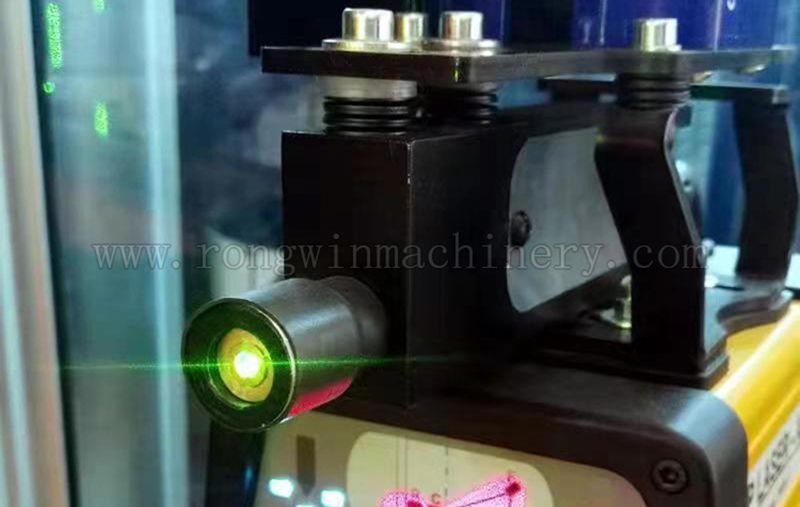

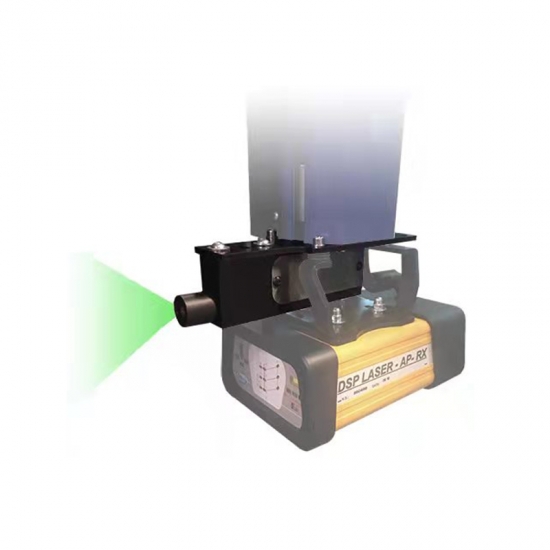

• Option 2: Optical Safety Guard Mounting (Laser Protection Bracket)
Integrates directly with existing optical safety systems (such as DSP, Lazersafe, or Fiessler brackets). This utilizes existing side arms for a clean, non-intrusive installation without interfering with punch changes.
