Rongwin WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake

This type cnc press brake is our Rongwin WF67K-M series of double servo pump oil-controlled electric hybrid bending machine. It has the advantages of high efficiency, energy saving, environmental protection and fast speed.
  • lead time:

    30 working days after receiving deposit
  • product orgin:

    China
  • brand:

    RONGWIN
  • shipping port:

    Shanghai
  • payment:

    TT, L/C, WEST UN, MONEY GRAM
  • price:

    $30000/Set
  • market price:

    $50000
  • color:

    As your requirement
  • description
  • components
  • technical parameters

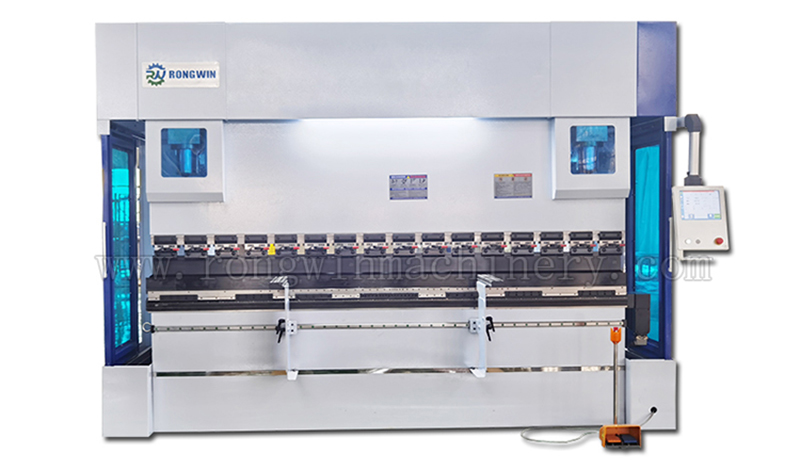

RONGWIN WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake

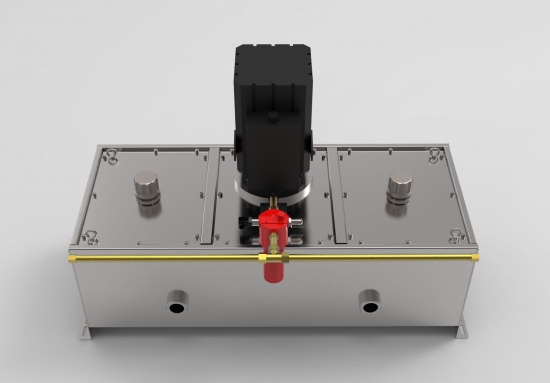

SVP system includes: 2 main servo motors + 2 servo drives, 2 internal meshing oil pumps, 2 oil tanks, 2 sets of proportional synchronization blocks, and 2 normally open filling valves.

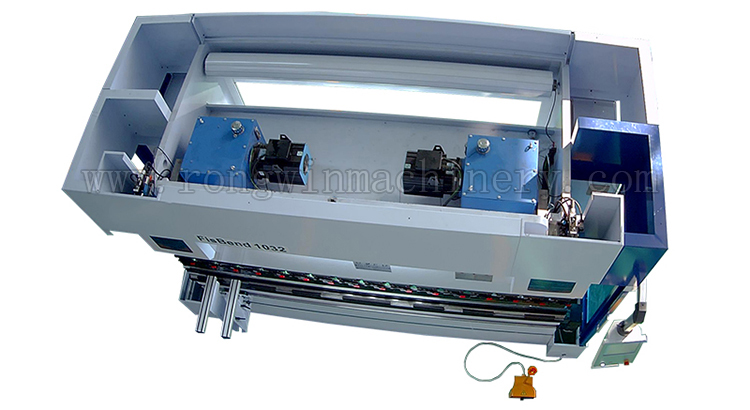

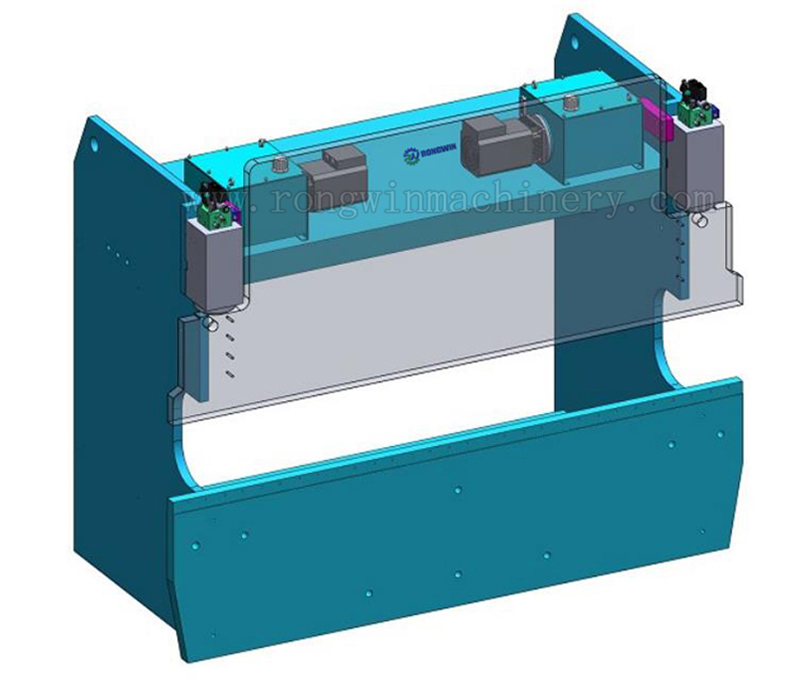

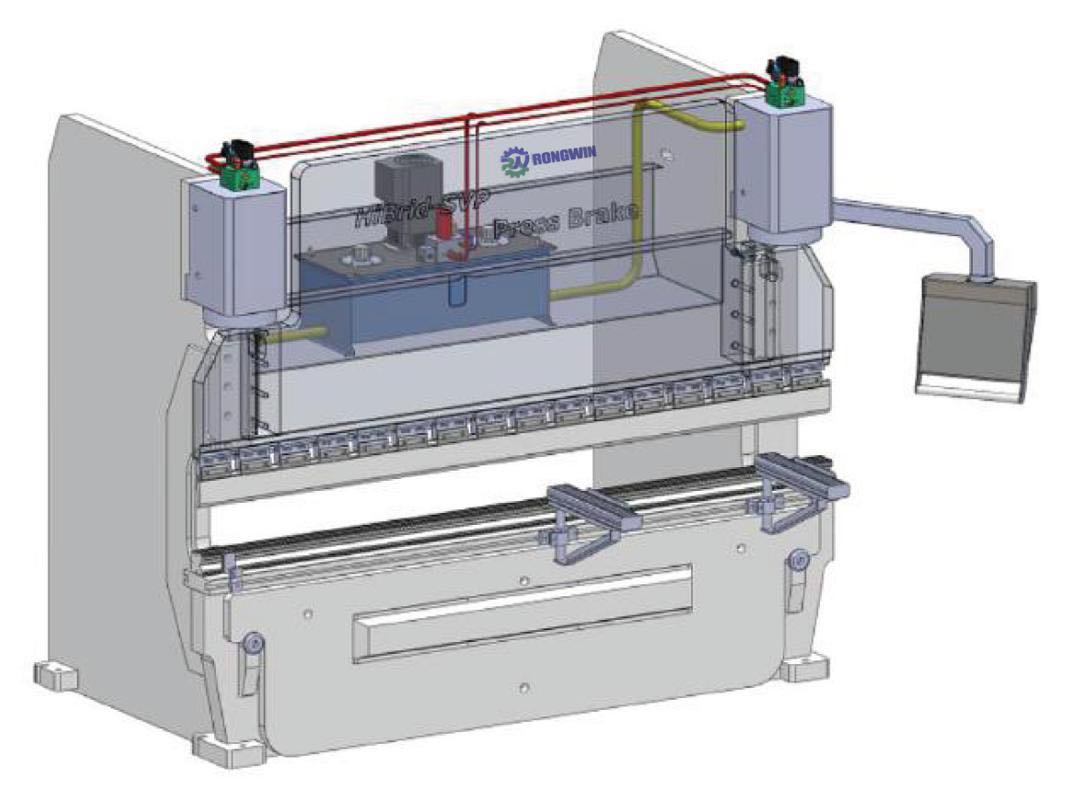

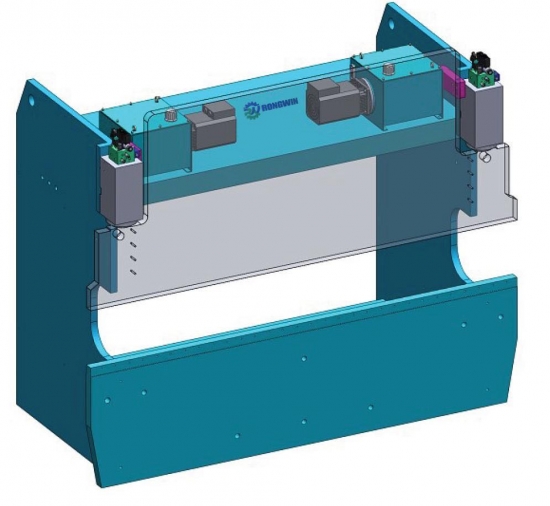

RONGWIN WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake SVP System

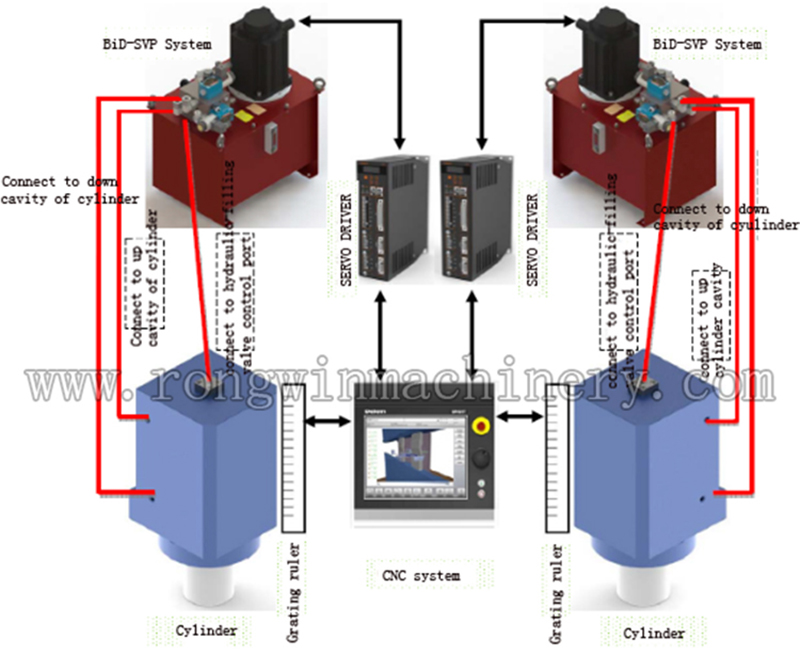

The SVP system use servo motor to drive pump.Hydraulic system transmit the kinetic energy to hydraulic oil , also control the cylinder working speed is controlled by the servo motor and pump capacity . The Displacement Sensor can help to adjust the cylinder working speed , the cylinder rod position can be adjusted precisely.

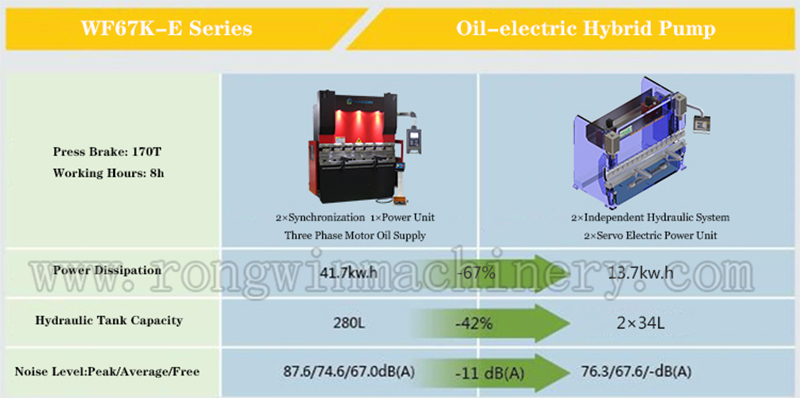

RONGWIN WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake SVP System Featuers

–Save.           Compared with the traditional transmission, saving 70% electricity .
– High.          Work efficiency can be increased by 30%, reduce cycle time .
– Precision.    Positioning accuracy, more than ±5 um .
–Quiet.          Noise is reduced, machine tool working more quiet.
–Less.           Hydraulic oil quantity less, only 20% of the traditional quantity .
–Easy.           Machine manufacturing easier, maintenance easier , commissioning easier.


Impact on the environment and cost of use


– Significant reduction in energy consumption/cost and heat balance, reducing CO2 emissions.

– Reduced installed capacity. The servo motor can be significantly overloaded in a short time.

It can reduce the volume of the oil tank and reduce the use of hydraulic oil. The oil consumption is only

   30% of the traditional.

Reduce or eliminate the cooling of hydraulic oil. Since it has been working at room temperature, the service

   life of hydraulic oil is extended.

– Reduce noise.

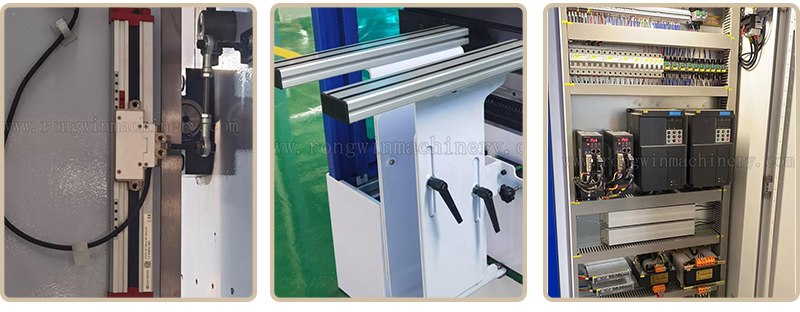

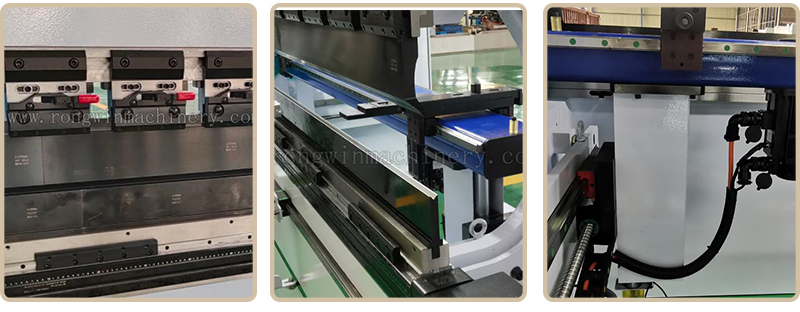

RONGWIN WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake Detail images

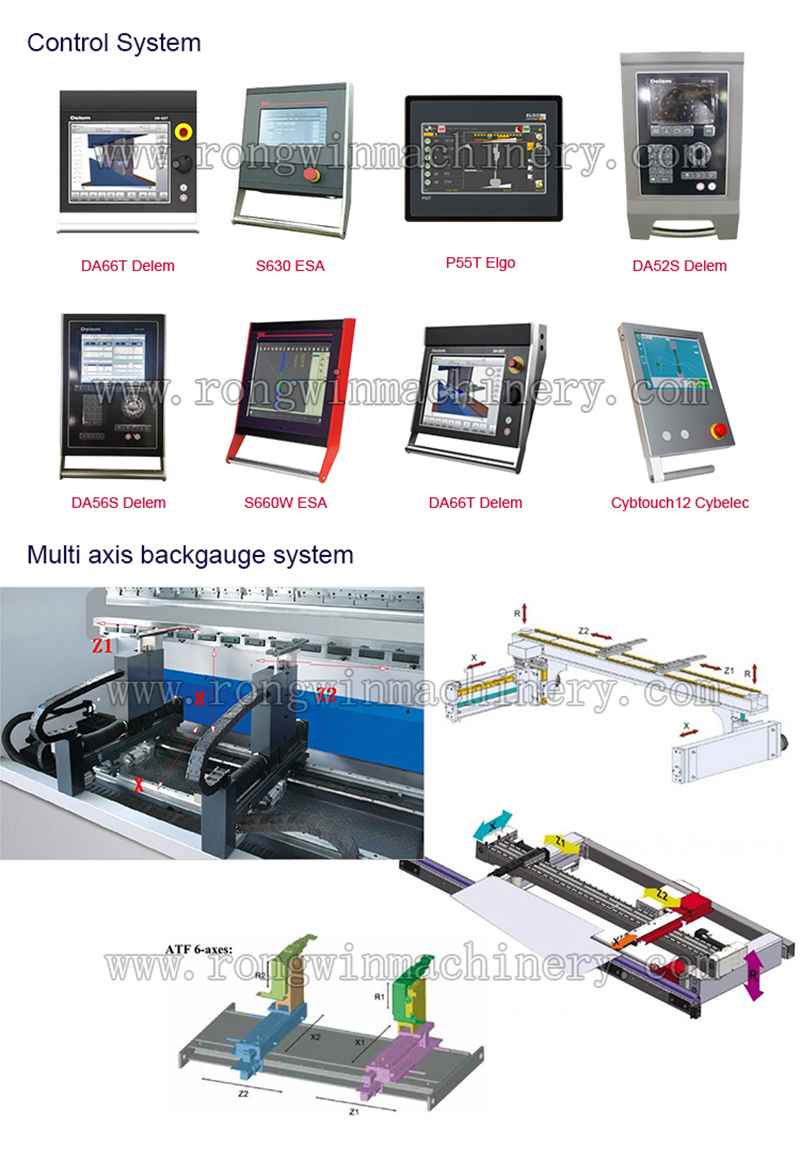

RONGWIN WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake Controller and Backgauge

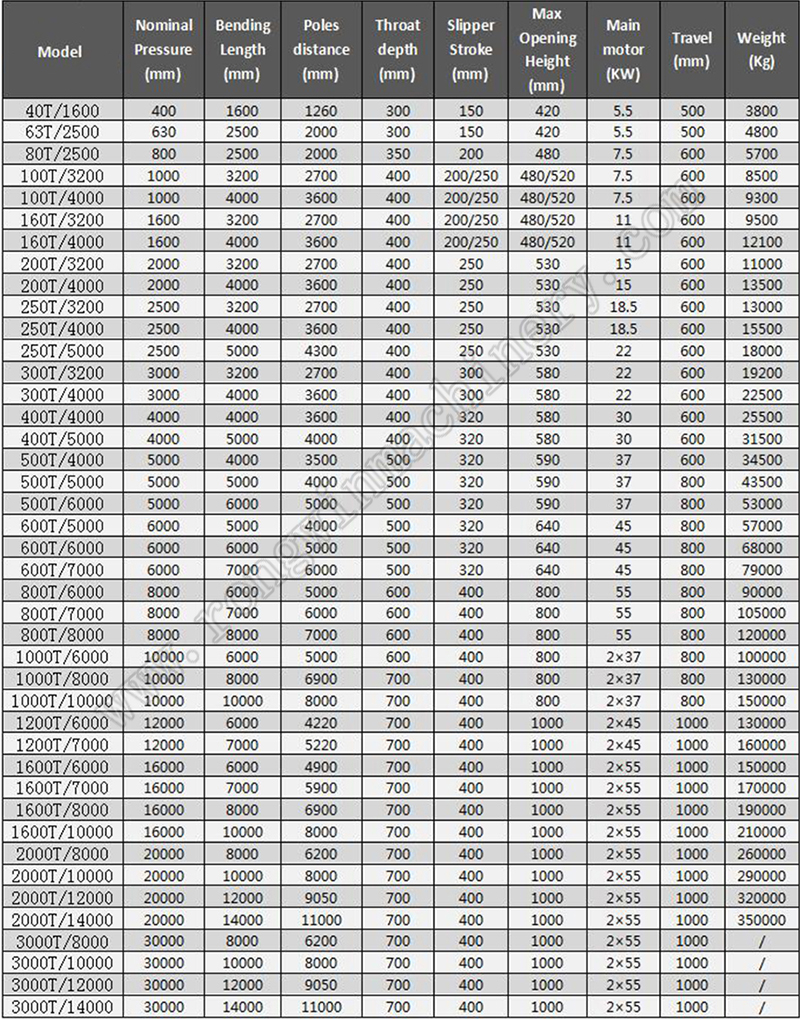

RONGWIN WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake Parameters
