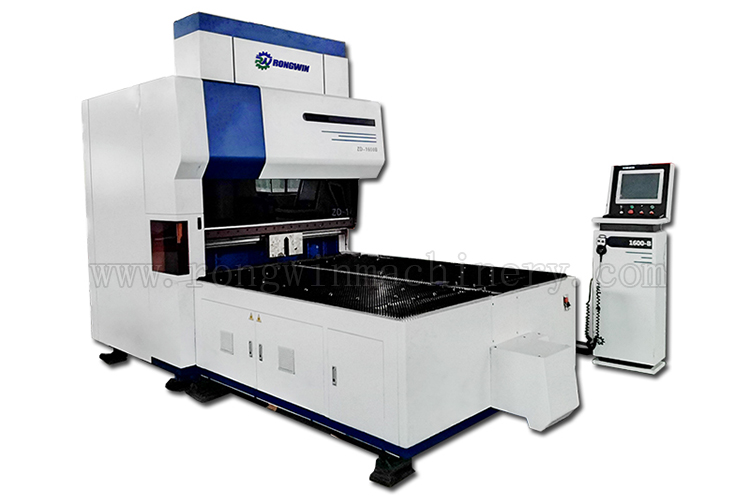

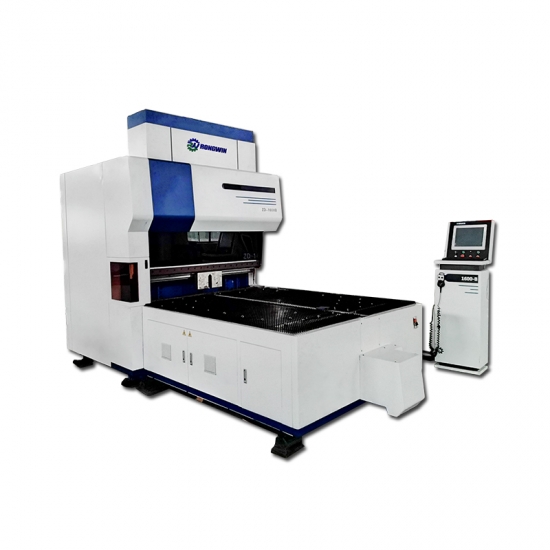

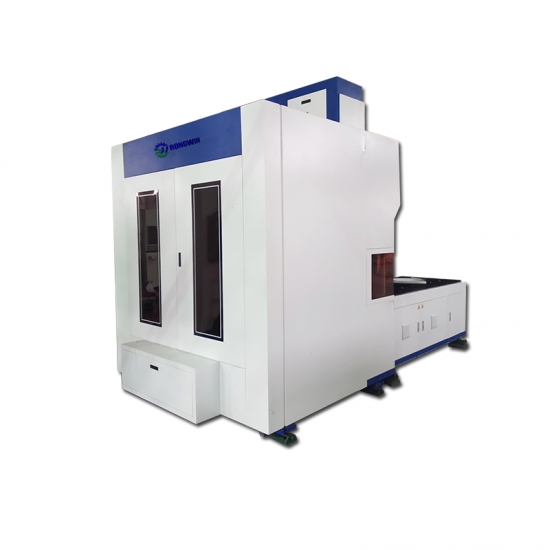

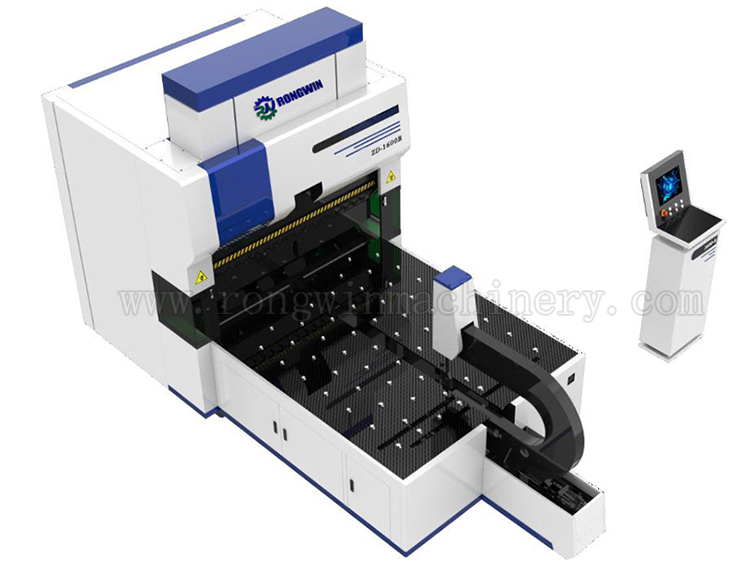

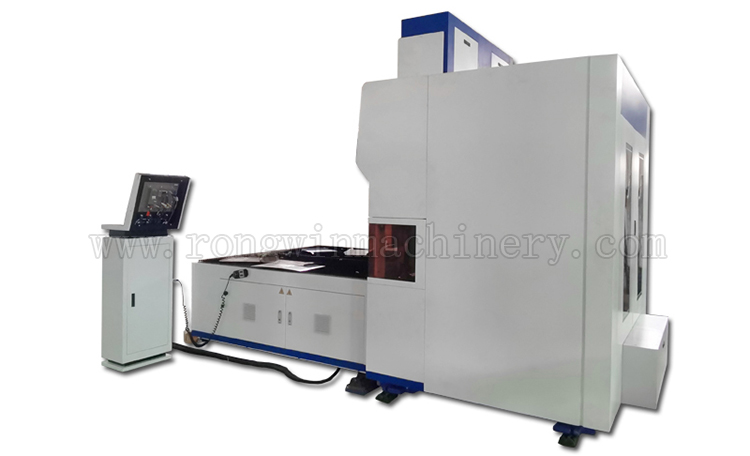

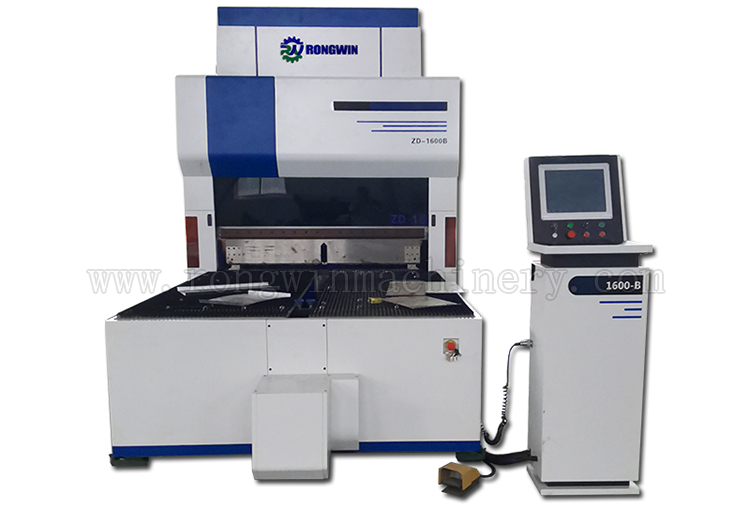

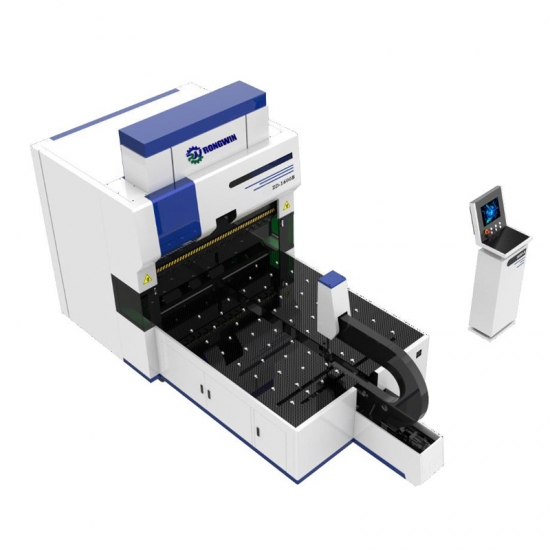

Full SERVO CNC Automatic Bending Center sheet metal processing

Rongwin panel bender is the new generation automated bending solutions ,a benchmark that indicates the upgrading to automation of sheet metal fabricating industry.It can obviously reduce the labor cost and at the same time it can realize 300% higher.

lead time:
30 working days after receiving deposit
product orgin:
china
brand:
RONGWIN
shipping port:
shanghai
payment:
TT, L/C, West union, Money gram, etc
price:
$85000/120000
color:
As your requirement

contact now

description

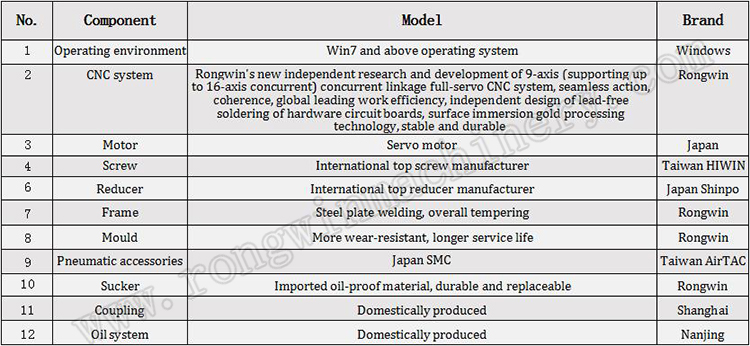

components
technical parameters

Rongwin panel bender bending center adopts a full servo system. Unlike traditional bending machines, the bending machine mold needs to be pressed down against the fixed part of the bending machine, but the bending work is completed by the blade. During the bending process, the plate The material holder fixes the plate. The blade can be bent up or down in different shapes. First, one side is bent outward, and then it is automatically bent inward. These different actions are controlled by the servo electric drive device, which can ensure the highest positioning accuracy in the bending sequence and bring the best bending effect.

Industry Application

*Food machinery, goods and household appliances
*Steel furniture, sheet metal and warehouse
*Electrical cabinet
*Steel door and frame
*Elevators and escalators
*Generators
*Hospital and laboratory equipment
*HVAC

*lighting device

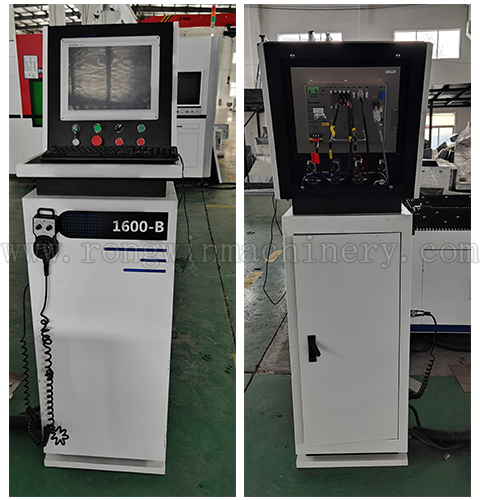

Control system

Rongwin’s new independent research and development of 9-axis (supporting up to 16-axis concurrency) concurrent linkage full-servo CNC system, seamless action, coherence, global leading work efficiency, independent design of lead-free soldering of hardware circuit boards, surface immersion gold processing technology, stability durable.

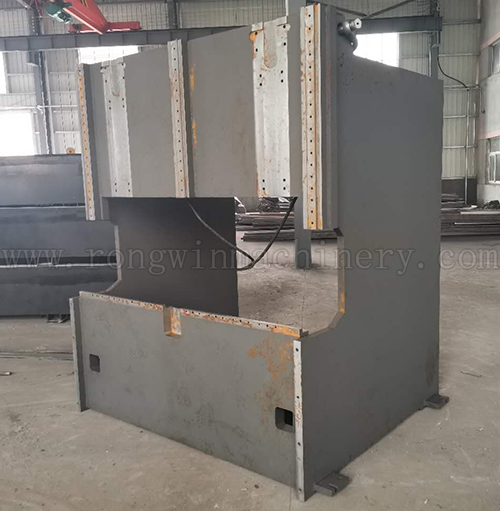

Machine frame

High precision, vibration reduction and pressure reduction, wear resistance, no deformation

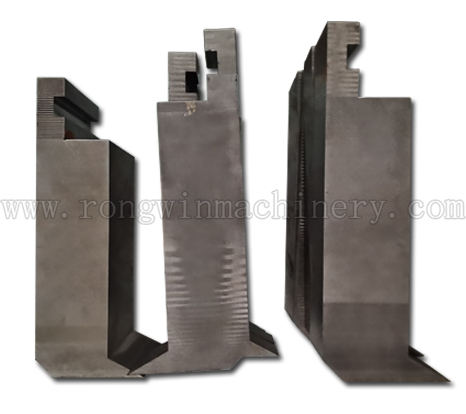

Press brake tool

High-quality moulds after heat treatment and quenching are more durable.

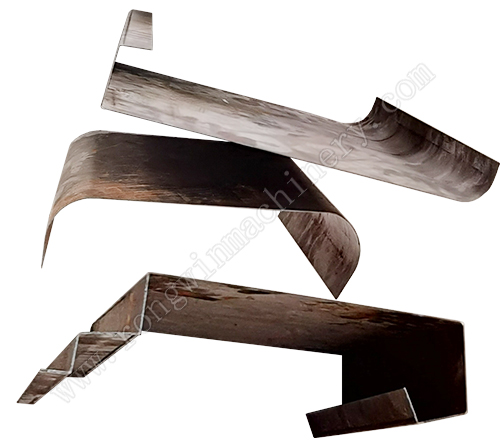

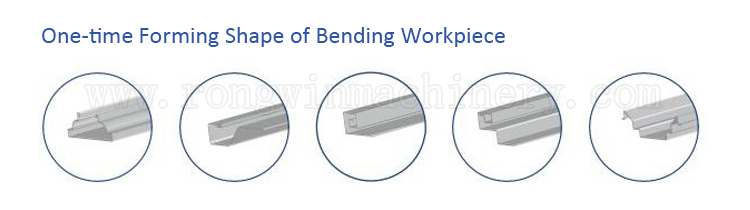

Workpieces

Various shapes can be bent without changing moulds.

Max. bending speed	Max. bending speed
Max. bending width	1300mm/1600mm/2000mm
Bending height	175 mm
Average power	1.5 kw
Max. bending thickness	UTS 580N/mm2 Stainless steel 1.2 mm
	UTS 410N/mm2 Carbon steel 1.2 mm
	UTS 265N/mm2 Aluminum 1.2 mm
Min. bending thickness	0.35 mm
