1. A plurality of cylindrical intersecting line holes with different directions and different diameters can be cut on the main pipe to meet the condition of eccentric and non-eccentric vertical intersection of the branch pipe axis and the main pipe axis (the main branch pipes are all round pipes).
2. It can cut the end of the cylindrical intersecting line at the end of the branch pipe to meet the conditions of eccentric and non-eccentric vertical intersection and oblique intersection of the branch pipe axis and the main pipe axis.
3. It can cut various shapes on the wall of the round tube; it can cut the oblique end face on the end of the round tube.
4. It can cut the end of the intersecting line of the branch pipe that intersects the ring main pipe (the main branch pipe is a round pipe); it can cut various graphics on the square pipe surface.
5. High precision, fast speed, narrow cutting gap, minimum heat affected zone, smooth cutting surface without burrs.
6. The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
7. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is extremely small, and there is no mechanical deformation.
8. Good processing flexibility, can process any graphics, and can also cut pipes and other shaped materials.
9. The steel plate, stainless steel, aluminum alloy plate, hard alloy and other hardness materials can be cut without deformation.

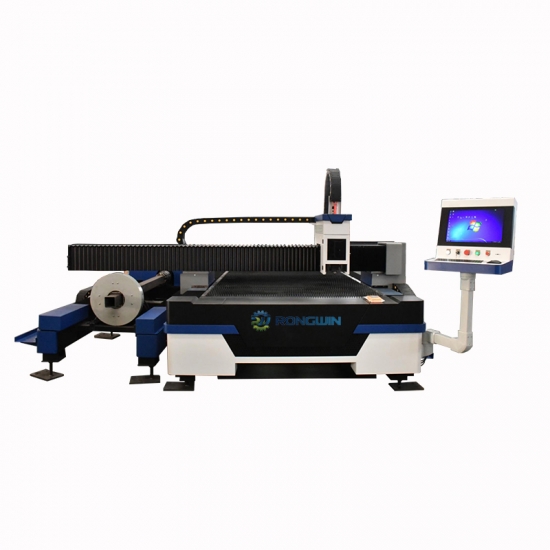

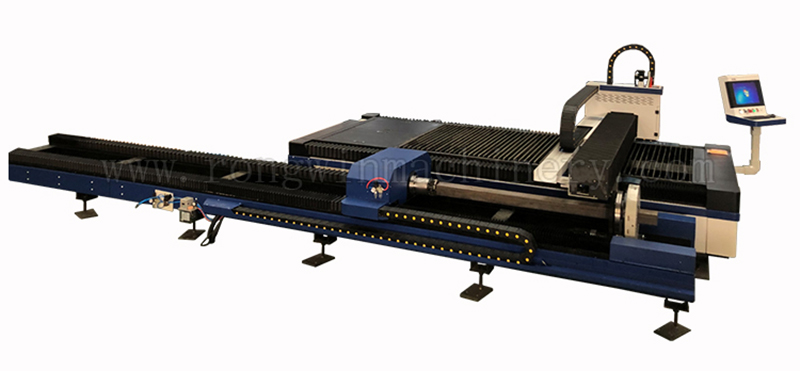

Open Type Metal Sheet & Tube Laser Cutting Machine

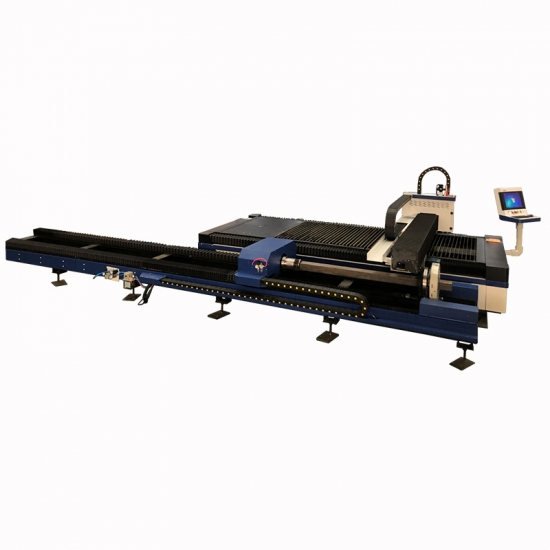

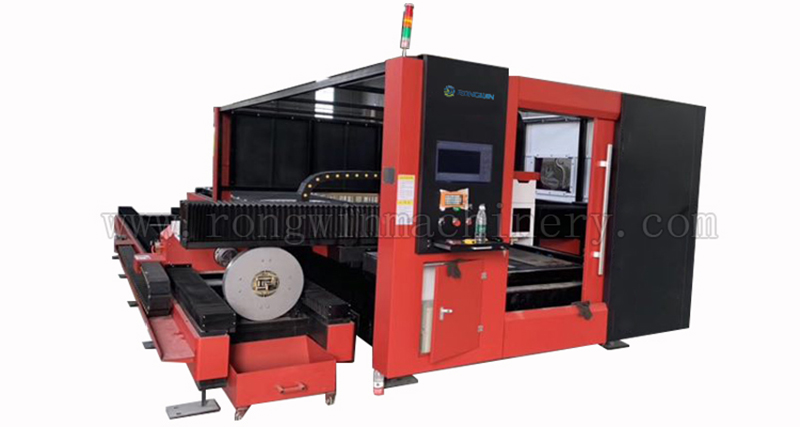

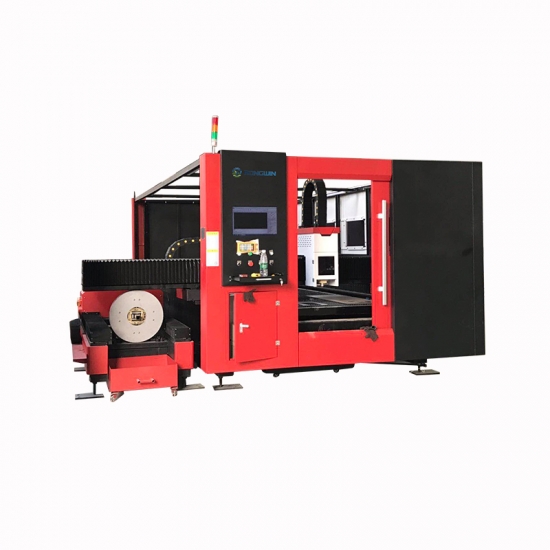

Closed Type Metal Sheet & Tube Laser Cutting Machine

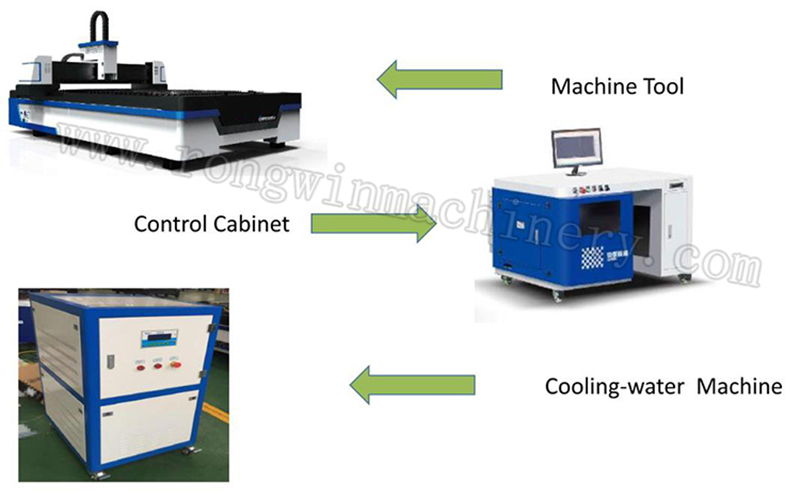

RONGWIN Metal Tube Sheet CNC Fiber Laser Cutting Machine Detail Information

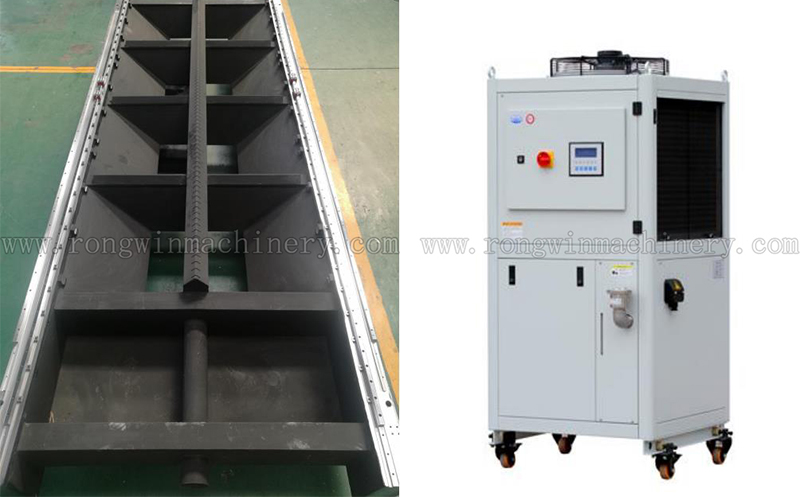

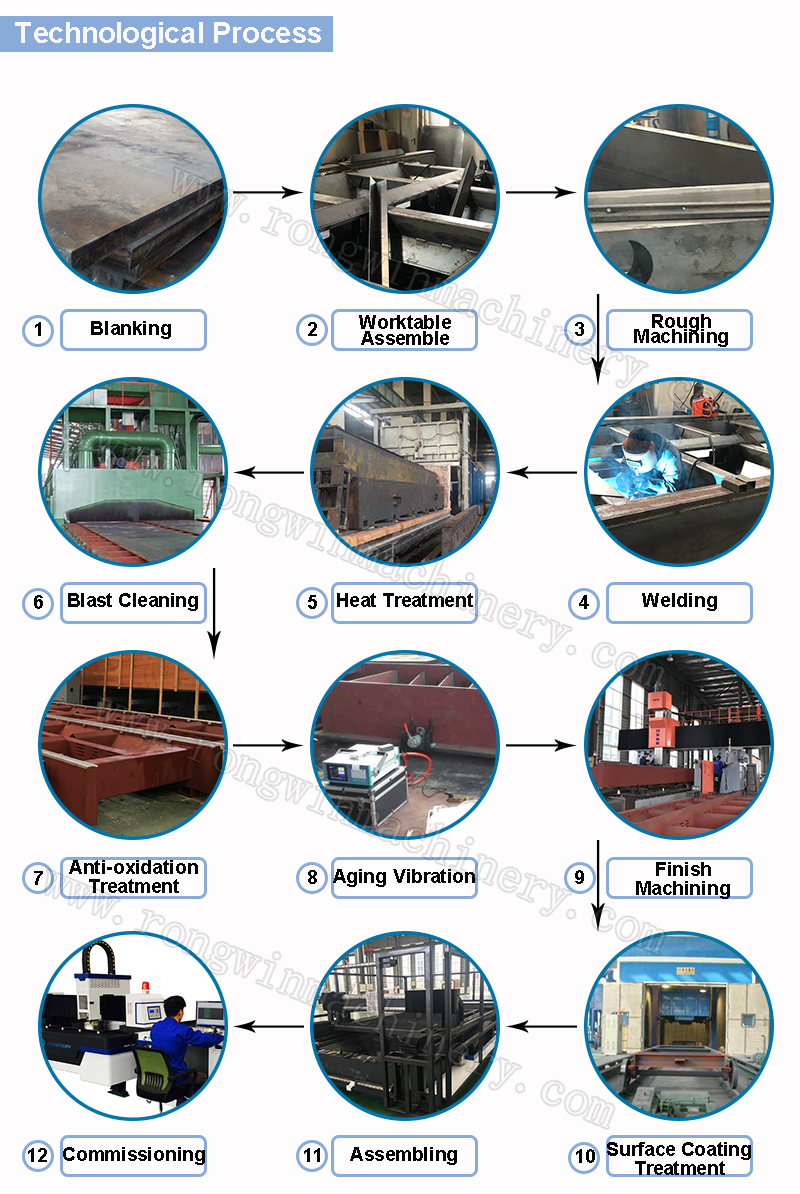

 Fuselage structure

★The main frame adopts the gantry structure and the whole bed is welded,to ensure the long term stability and no deformation of the machine.
★Machine tool bed is processed by gantry milling machine and is formed at one time.
★The whole machine is tempered at high temperature,the internal stress is eliminated with the furnace cooling.

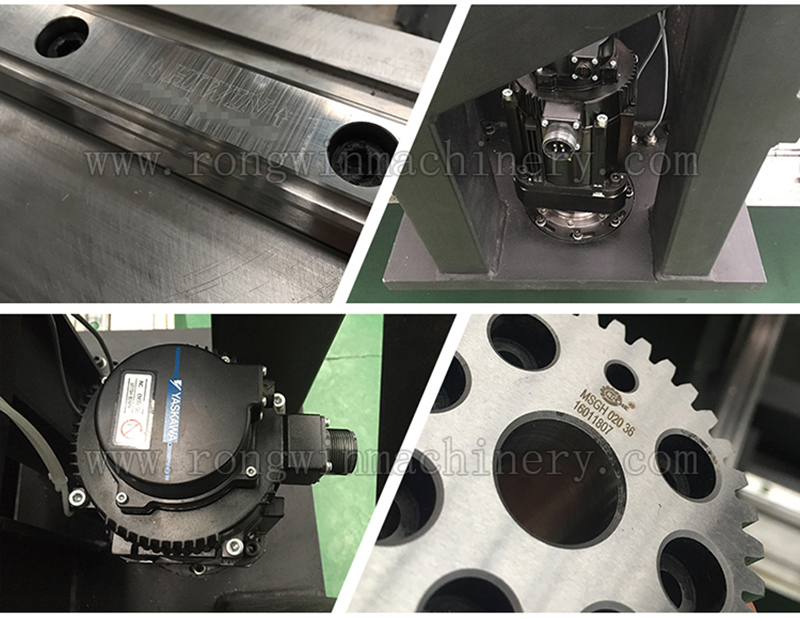

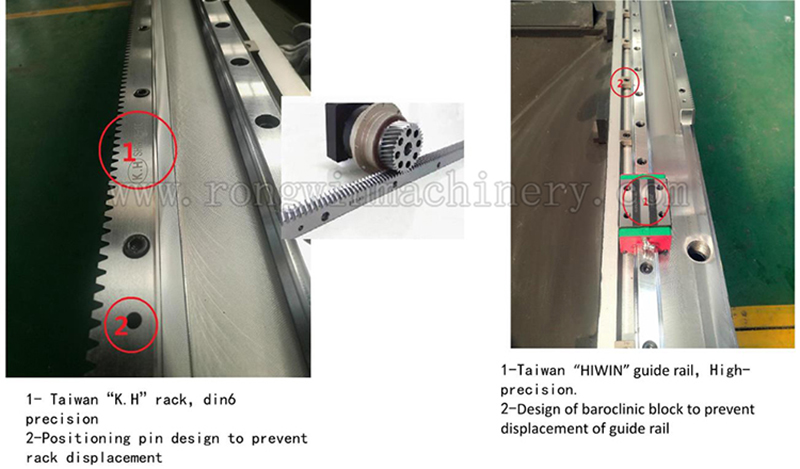

★Using double rack rails,double servo drive structure.
★Improving the stability and rigidity of the Y axle beam
★The high precision and high dynamic performance of the Y axle beam movement is ensured.
★The Y axle beam runs at high speed and smoothly, greatly reducing the consumption of gas.

Water Chiller

★ Using domestic first-class brand, professional laser chiller, good stability, high precision.
★With two way temperature control, the laser and the cutting head can be controlled at different temperatures, the stability of the laser and the cutting head can be guaranteed more effectively.
★This function includes: pressure alarm, high and low temperature alarm, abnormal voltage alarm, and fault alarm etc.

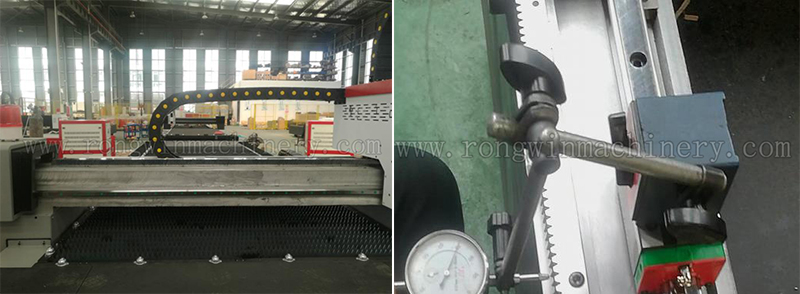

Between the guide and rack using precision collimator to calibrate the accuracy of ±0.01mm

The beam sliding table adopts integral cast aluminum parts, which can reduce the weight of the beam and ensure good stability, So that can meet the high-speed operation of the machine .X,Y, Z three-axis drive with full servo motor, high precision, fast response.

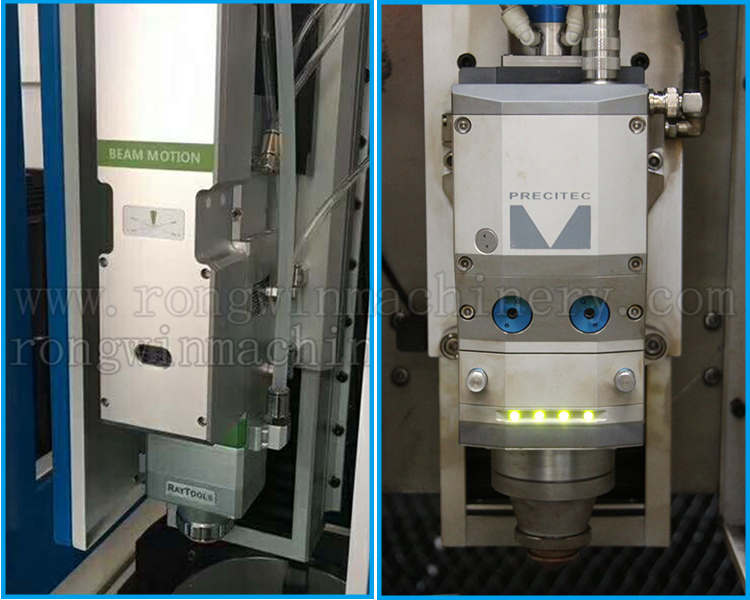

High precision laser cutting head

★The internal structure of the laser head is completely sealed, and the dustproof grade reaches 6 grade to 7 grade, which can avoid the dust pollution of the optical part;
★Magnetic protection against collision, flexible and convenient to reset and alarm function;
★The cutting height is set by panel operation or programmable CNC control;
★The height control can be realized through the Z axis servo motor and the drive system;
★Modular design, high precision, easy maintenance.

Control cabinet

★ A closed control design is adopted: a good closed effect ensures the control of the dust effect of the electrical apparatus. Provide security for long time work
★ Configuring constant temperature air conditioning: ensure the internal thermostat of the control cabinet, prevent temperature change and cause the laser and electrical components to be dampened
★ Waterproof design: the control cabinet has been designed for 2 layers. The bottom without any electrical appliances, can deal with sudden flood events.

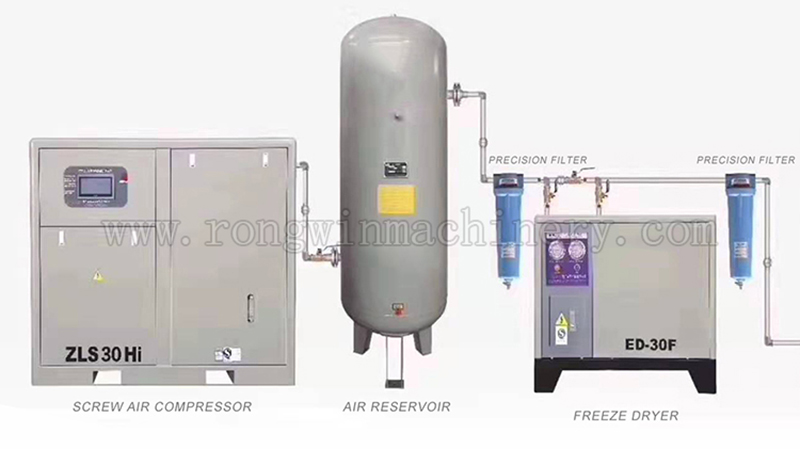

Air compression system (optional)

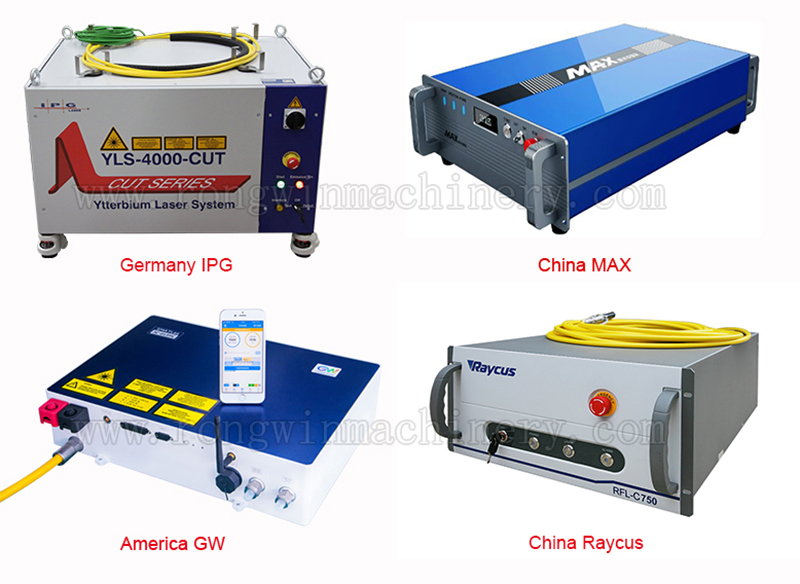

                                       A variety of laser power supply options

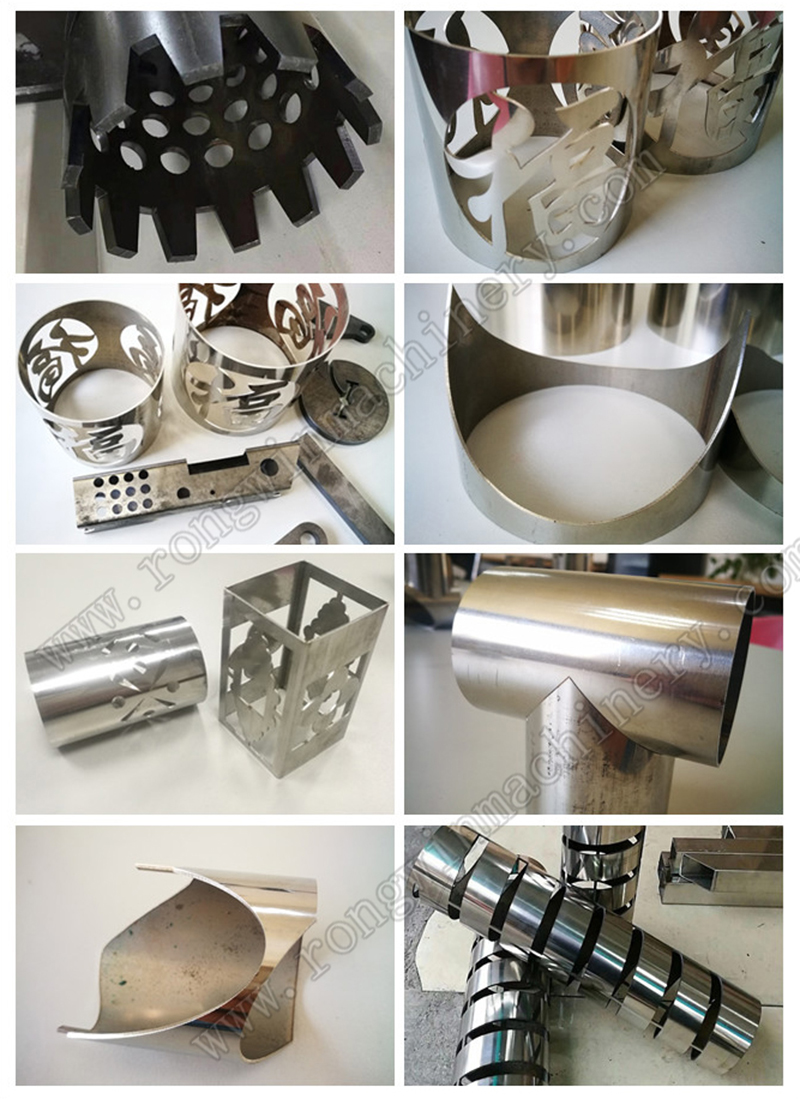

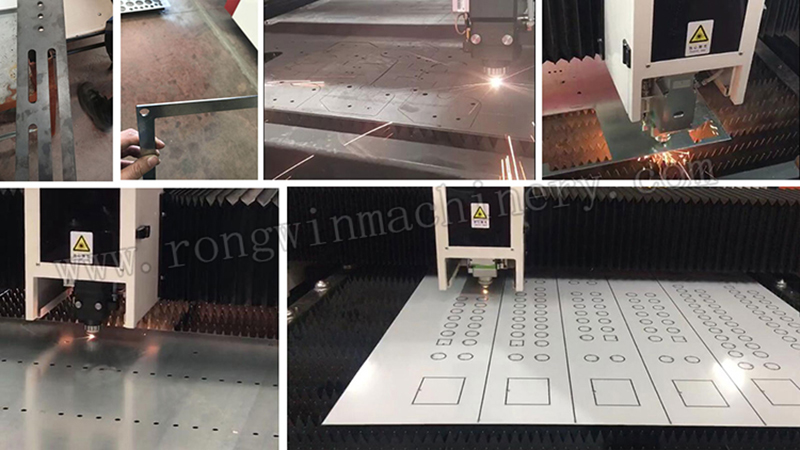

Cut Sample

Cooperation Brand
