lead time:
30 working days after receiving depositproduct orgin:
Chinabrand:
RONGWINshipping port:
Shanghaipayment:
TT, L/C, WEST UN, MONEY GRAMprice:
$30000/Setmarket price:
$50000color:

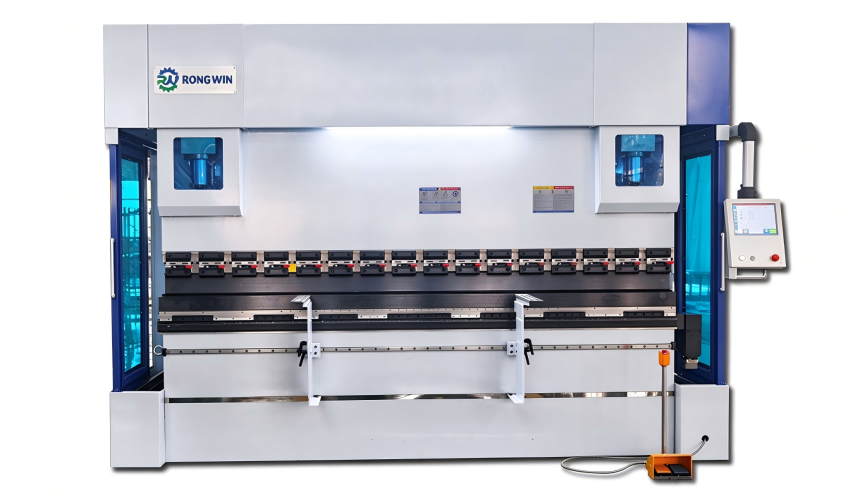

As your requirementRONGWIN WF67K-M Series High-Speed Energy-Saving Dual Servo Pump Hybrid CNC Press Brake

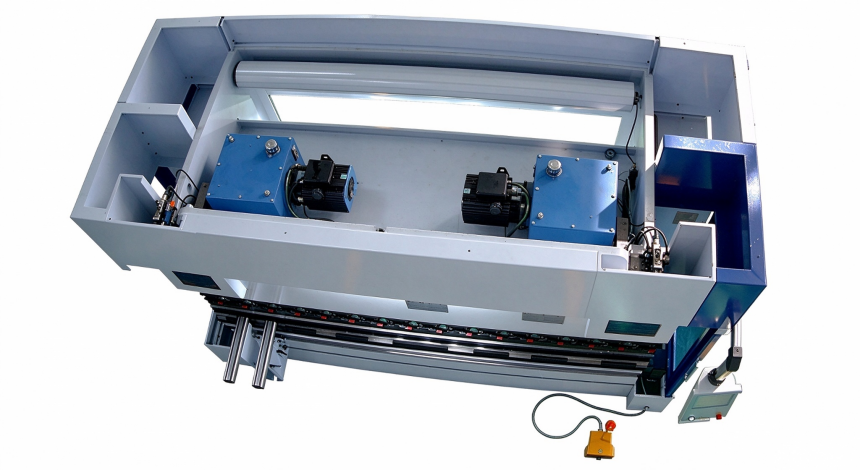

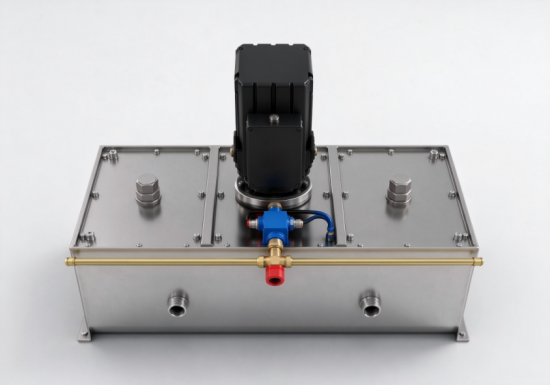

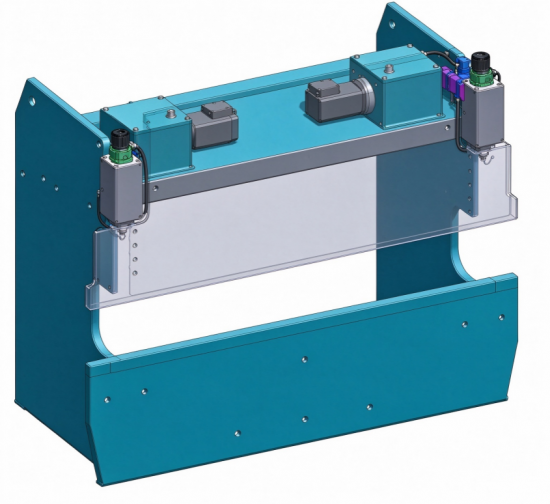

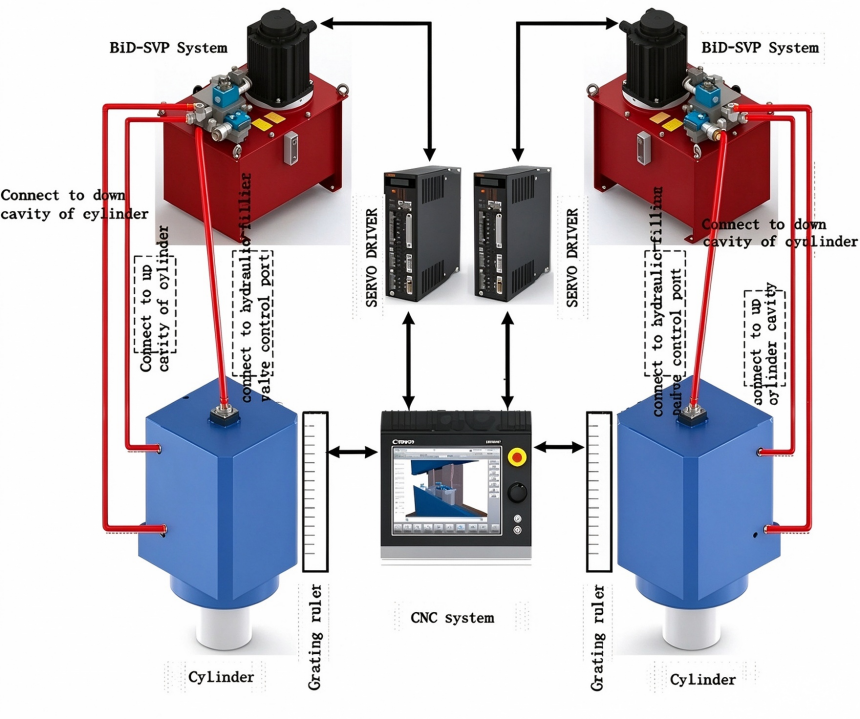

SVP Dual Servo Pump System Core Configuration: 2 × High-Response Main AC Servo Motors + 2 × Dedicated Digital Servo Drives，2 × High-Precision Internal Gear Hydraulic Pumps，2 × Independent Stainless Steel Oil Reservoirs，2 × Integrated Proportional Synchronization Valve Blocks，2 × Normally Open (N.O.) Pre-Fill Valves

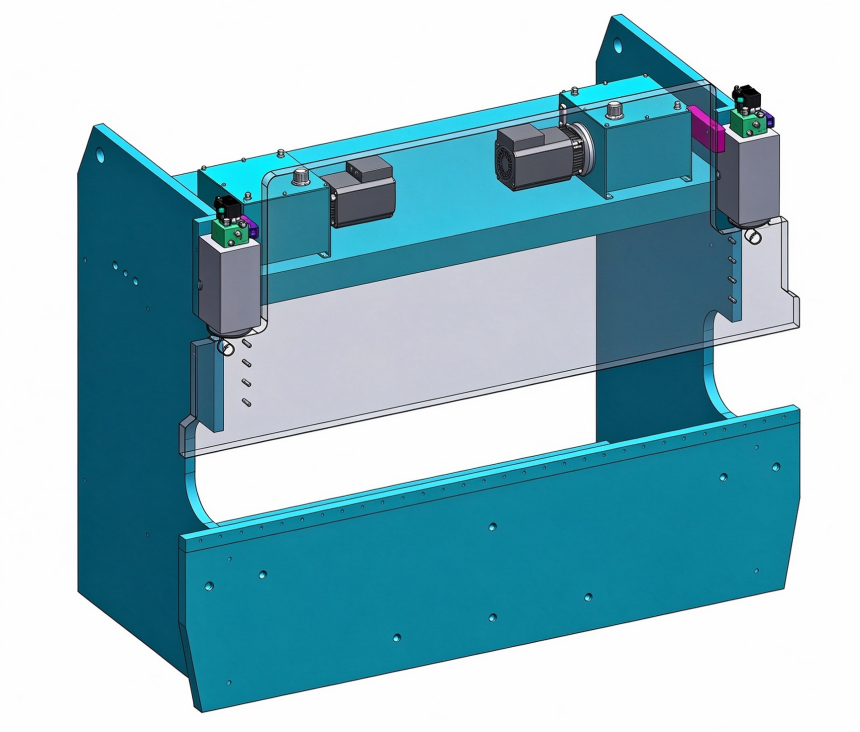

SVP Dual Servo Pump System | RONGWIN WF67K-M Series Hybrid CNC Press Brake
The SVP system utilizes high-response AC servo motors to directly drive the hydraulic pumps. Hydraulic pressure and cylinder operating speed are dynamically modulated in real time by adjusting the servo motor RPM and pump displacement. High-precision displacement sensors provide continuous closed-loop feedback, ensuring dynamic ram speed regulation and micron-level piston positioning accuracy throughout the entire bending cycle.
RONGWIN WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake SVP System Featuers

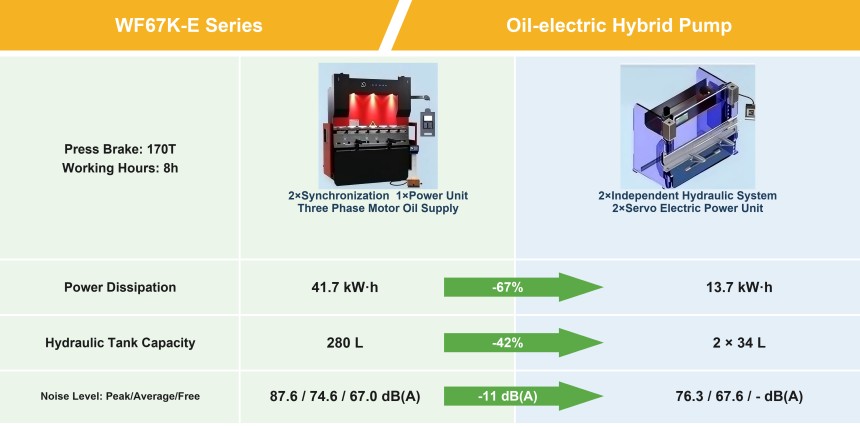

• Energy-Saving: Cuts electricity consumption by up to 70% compared to traditional hydraulic drives.
• High Efficiency: Boosts overall productivity by 30% with significantly shorter bending cycle times.
• High Precision: Exceptional ram positioning and repeatability accuracy down to ±5 \mum±5 \mum (±0.005 mm±0.005 mm).
• Ultra-Quiet: Substantially lowers operating noise for a quieter, more ergonomic workshop environment.
• Less Oil: Requires only 20% of traditional hydraulic oil volume (80% oil reduction), lowering maintenance overhead.
• Easy & Fast: Streamlined modular architecture allows for easier manufacturing, faster commissioning, and effortless maintenance.
• Significant Energy & CO₂ Reduction: Drastically lowers electricity consumption and heat generation, significantly reducing your factory's carbon footprint.
• Lower Installed Power Capacity: The servo motor's high instantaneous overload capability reduces overall grid connection and transformer capacity requirements.
• 70% Less Hydraulic Oil: Compact tank design requires only 30% of conventional hydraulic oil volume, cutting fluid replacement and disposal costs.
• Eliminates Oil Chiller Needs: Because the hydraulic system operates near room temperature, active oil chillers are reduced or eliminated, significantly extending hydraulic oil and seal lifespan.
• Ultra-Low Noise Operation: Greatly dampens operating noise during non-working and bending cycles, creating a quieter, safer working environment for operators.

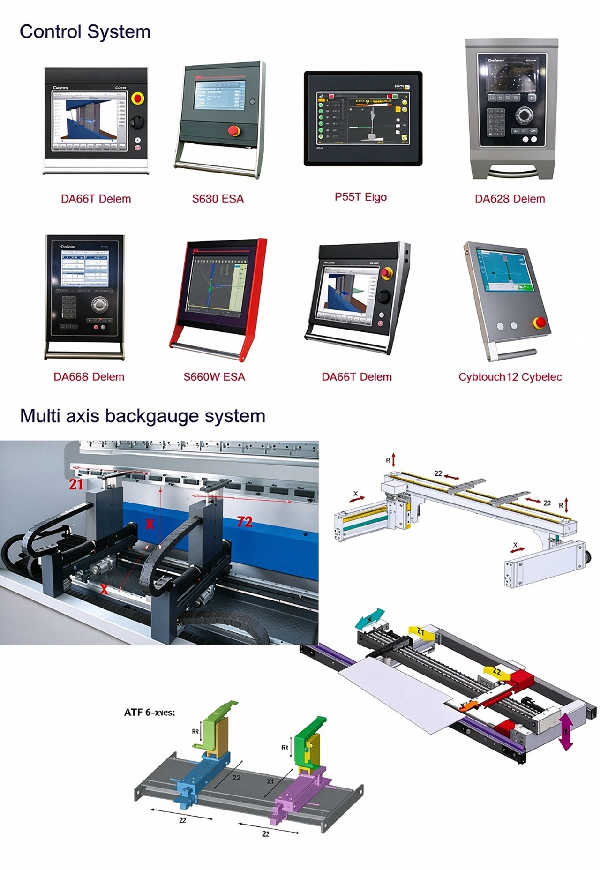

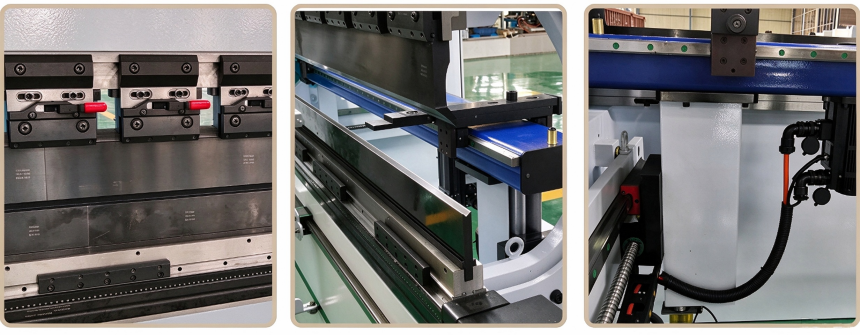

RONGWIN WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake Controller and Backgauge

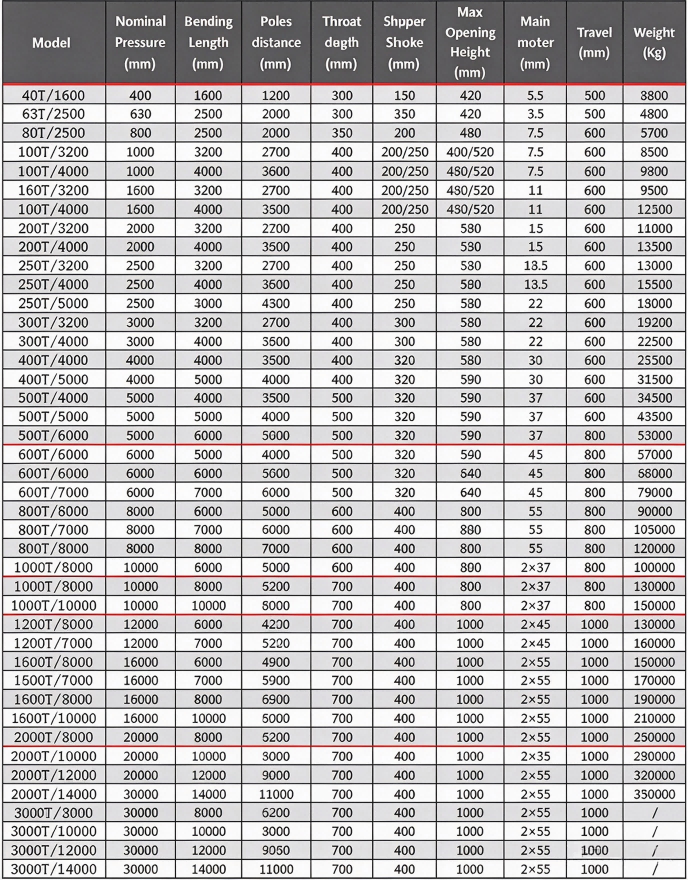

RONGWIN WF67K-M series Fast Speed Energy-saving Servo Pump Control Hybrid CNC Press Brake Parameters
