Small Hydraulic Press Machine 63T

Hydraulic Press Machine is for making the metal to be one kind of shape even can cutting the metal in one time stroke, so this kind of hydraulic machine is widely used on different fieled of metal working industry , We can make our machine in high safety performance , we can install the laser safety guard on our machine , also air cooler also can an optional part for the customer which is in hot climate place .
  • item no.:

    YF32
  • lead time:

    30 Working Days After Receiving Deposit
  • product orgin:

    China
  • brand:

    RONGWIN
  • shipping port:

    Shanghai
  • payment:

    TT, L/C, West Union, Money Gram, Etc
  • color:

    Optional
  • description
  • components
  • technical parameters

Product Item: C Frame Hydraulic Press


Main components

Name

Brand

Description

Hydraulic  System

KINGEDE

Made in china

Solenoid valve and Pilot valve

Rexroth

Germany brand

Seal Ring

NOK

Germany brand

Oil Pump

Rexroth

Germany brand

Motor

Siemens

Germany brand

Hydraulic Component

Li ming

Provided by China

PLC

MITSUBISHI

Japan brand, Optional

Touch Screen

Delta/HCFA

Taiwan brand, Optional

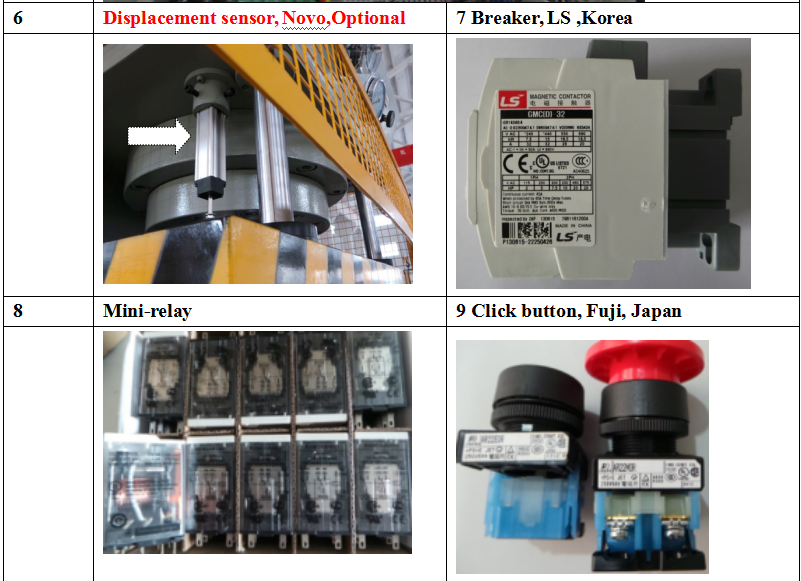

Displacement Sensor

NOVO

Provide by Germany, Optional

Key Electronic Components

Schneider

France brand

Mini-Relay

OMRON

Japan brand

Electric Breaker

LS

Korea brand

Infrared Sensor (security protection)

Sensorc

Provided by China

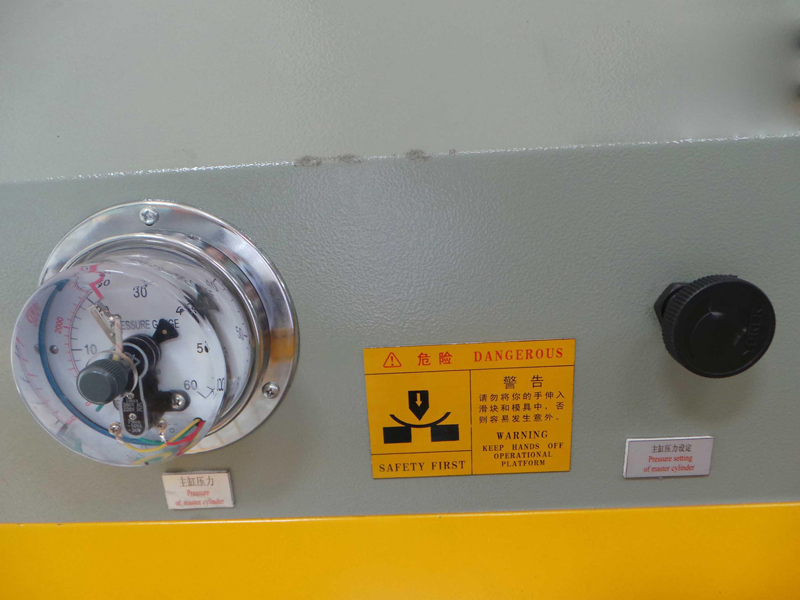

Pressure Gage
High Pressure Tube

Wuxi

Provided by China

Air Cooler for oil ( medium in pump)

Wuxi

Provided by China

Auto-Lubrication Machine

Nan jing BIJUR

Provided by China





 Pictures of Key components

No.

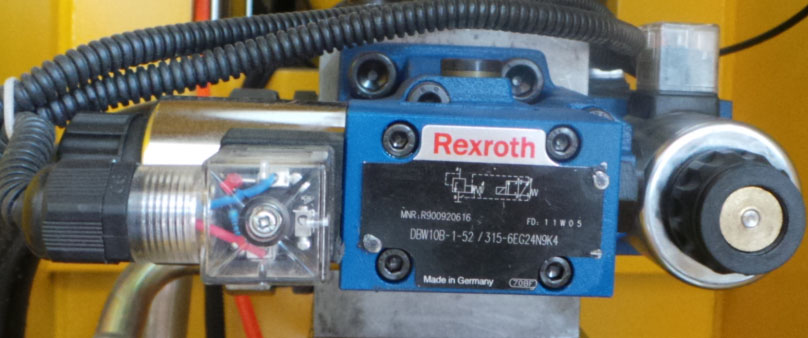

Hydraulic Valve, Rexroth

1

2

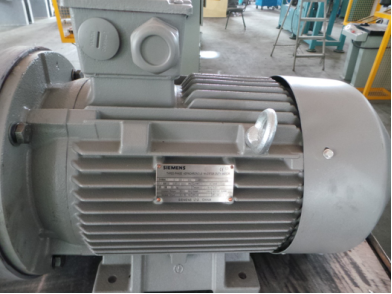

Motor, Siemens

3

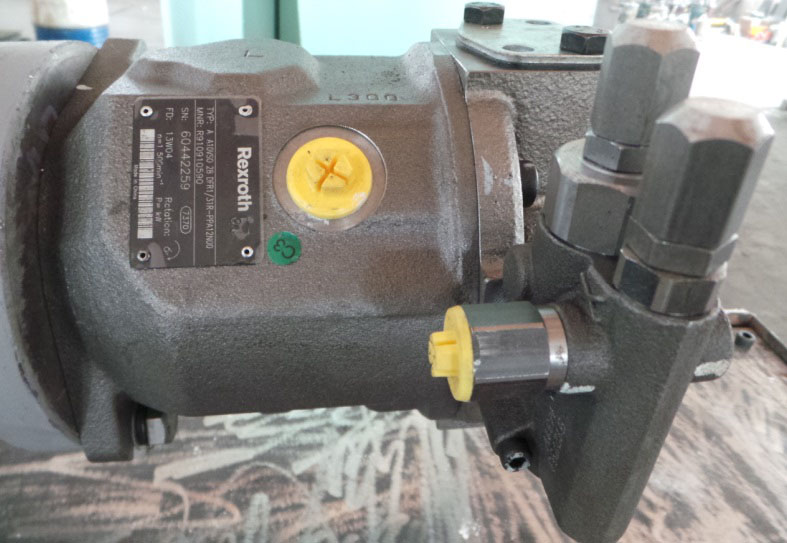

Pump, Rexroth

4

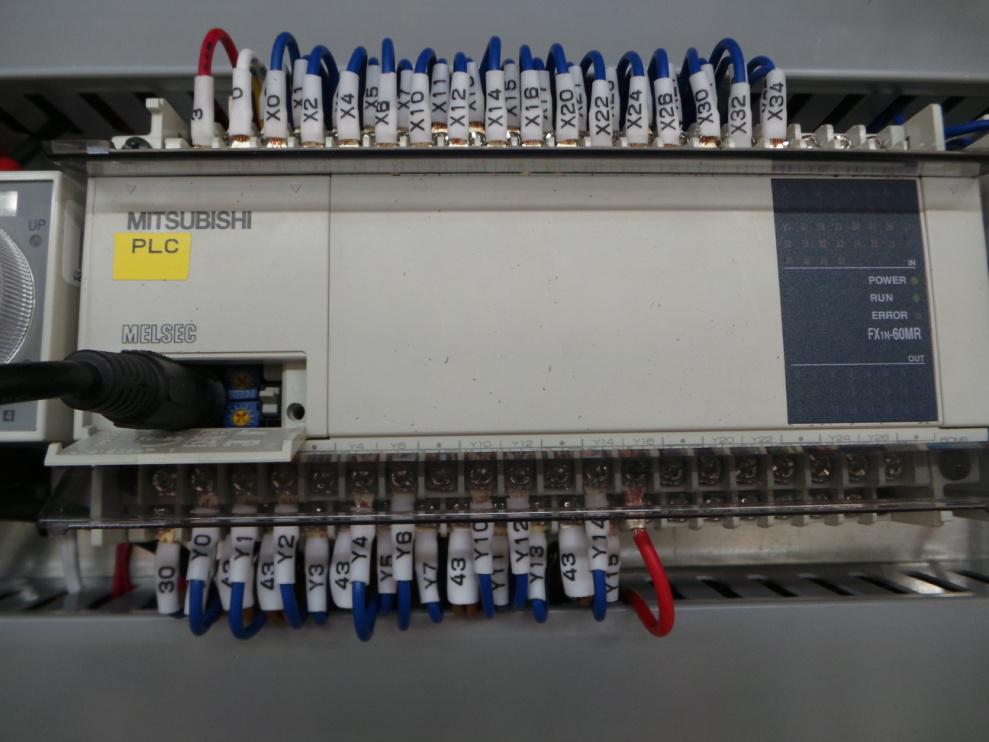

PLC, Mitsubishi (Optional)

5

Electronic components, Schneider

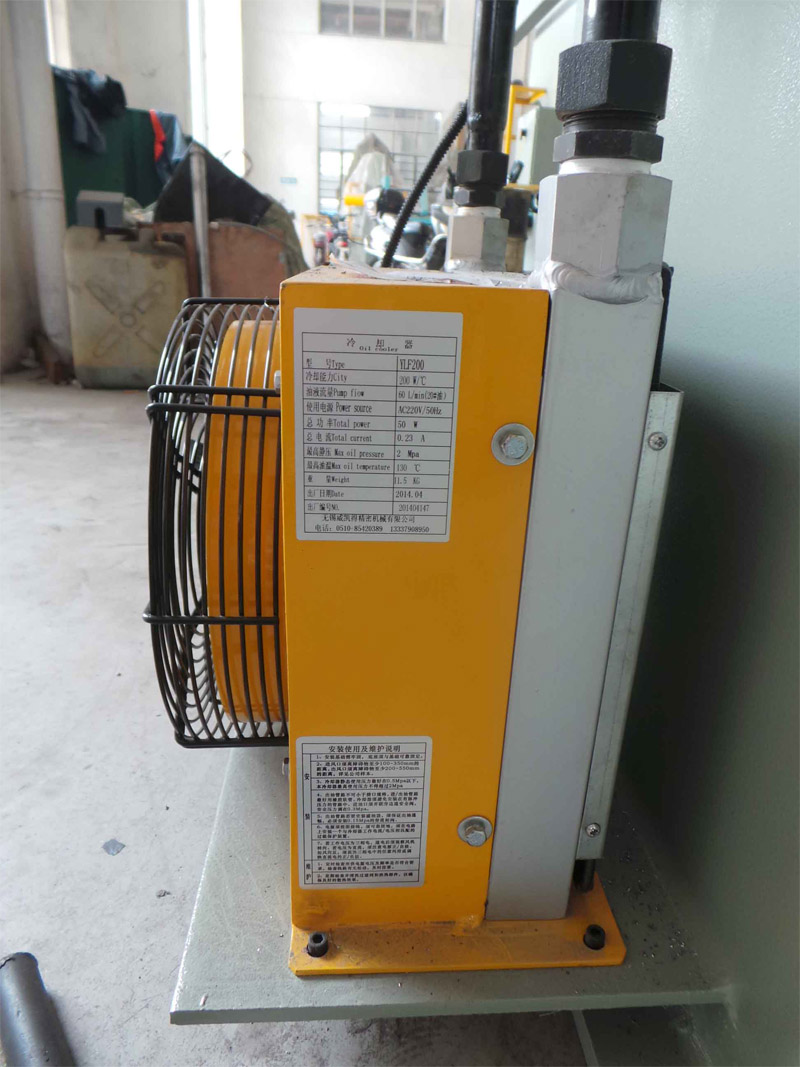

Oil cooler for the hydraulic press




 Hydraulic Press 63T technical specification /parameters

Hydraulic press model

Unit

45T

63T

100T

160T

200T

315T

400T

500T

630T

Nominal pressure

KN

400

630

1000

1600

2000

3150

4000

5000

6300

Cushion Capacity

KN

63

100

200

250

400

630

630

1000

1250

Liquid maximum working pressure

MPa

25

25

26.5

26

25

25

25

26

26

Slide stroke

mm

400

500

500

500

700

800

800

900

900

Max opening height

mm

600

700

900

900

1120

1250

1400

1500

1500

Worktable size

Front to back side

mm

400

500

580

800

900

1200

1200

1400

1600

Left to right side

mm

400

500

710

800

900

1200

1260

1400

1600

Cushion Stroke

mm

120

160

200

200

250

300

300

300

400

Slide speed

Freewheeling descend

mm/s

40

76

100

100

100

100

100

100

>100

Working

mm/s

10

10

8-15

8-15

8-15

8-15

8-15

10

12

Return trip

mm/s

60

60

60

60

70

70

70

80

65

Machine dimension

Left to right

mm

1000

1100

1200

1600

2120

2220

2220

2420

2520

Front to back

mm

500

650

380

400

500

500

650

680

700

Height from ground

mm

2406

2430

3300

3350

3690

3900

4050

5348

  

Motor Power

KW

5.5

5.5

7.5

15

18.5

22

22

37

  

 Machine weight

T

1.95

2.5

4

7

12

15

20

30

  
