item no.:
P-2040lead time:
30 working days after receiving depositproduct orgin:
Chinabrand:
RONGWINshipping port:
Shanghaicolor:
optionalPlease check our Metal Sheet CNC Plasma Torsh Cutting Machine's working video here
The Main Features of Metal Sheet CNC Plasma Torsh Cutting Machine
1. Welded lathe bed of thick-wall profiled steel, more solid and stable.
2. Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame. The level difference of whole double-deck platform remains in 0-1.5mm.
3. Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
4.Yako drive and Stepper motor, high accuracy Helical rack and pinion transmission. Low noise, stable and accurate coordinate movement
5. Start control system made in Sino-US joint venture and design Software Fastcam with auto material saving function.
6. Self-adjusting(Torch Height Controller) to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
7. Best choice for all kinds of different thickness material and heterotypic sheet cutting.

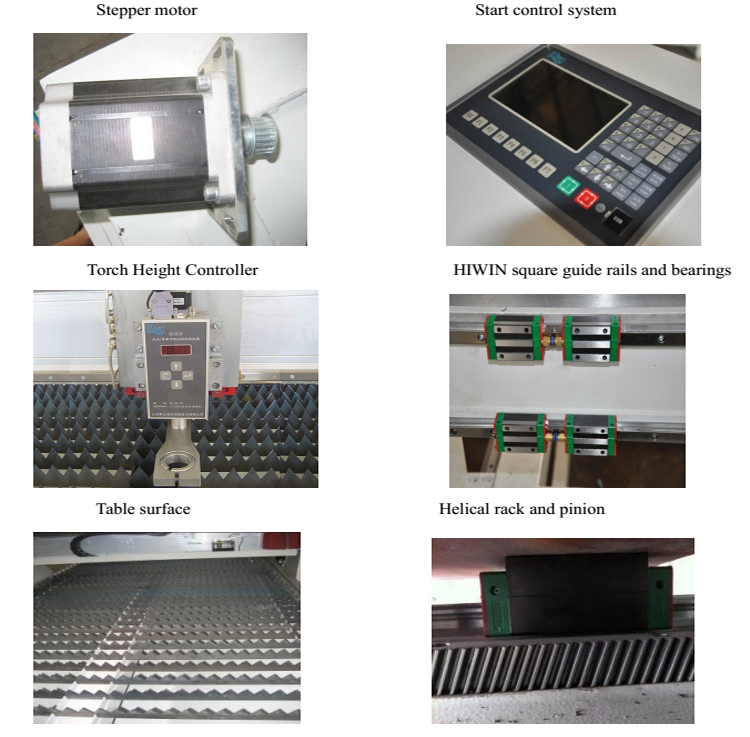

The main Parts Photo Image of Metal Sheet CNC Plasma Torsh Cutting Machine

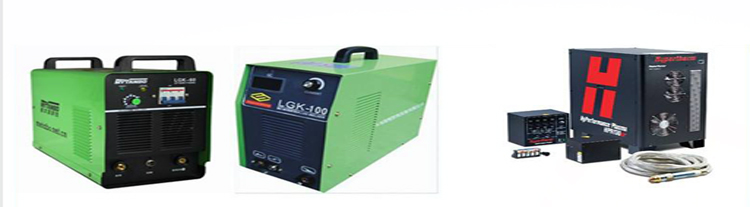

Two kinds of plasma source for Metal Sheet CNC Plasma Torsh Cutting Machine
1)China Hwayuan LGK IGBT 2)USA Hypertherm Generator POWERMAX

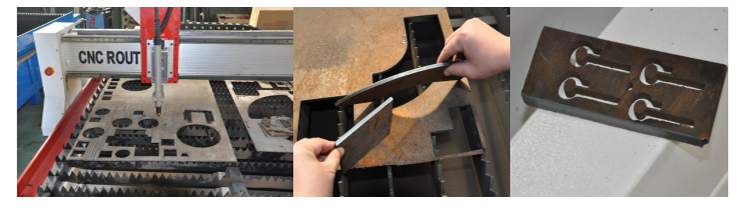

The cutting sample image of Metal Sheet CNC Plasma Torsh Cutting Machine
After sale service of Metal Sheet CNC Plasma Torsh Cutting Machine
1.Our warranty is 3 years, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2.We can send our engineer to the customer’s factory to install the machine, commission and training freely. The customer provides the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
We have two kinds of Plasma Source for Metal Sheet CNC Plasma Torsh Cutting Machine.

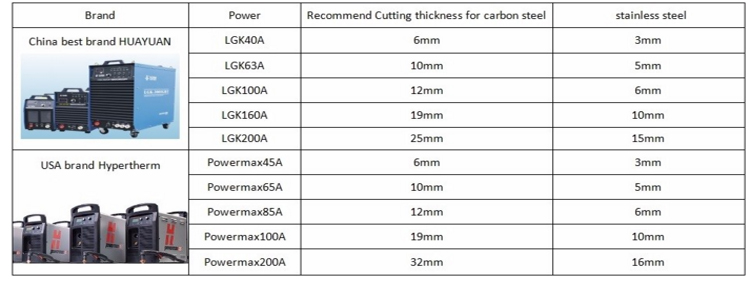

How to choose the plasma source model according to your requirement ?
Please check the following :

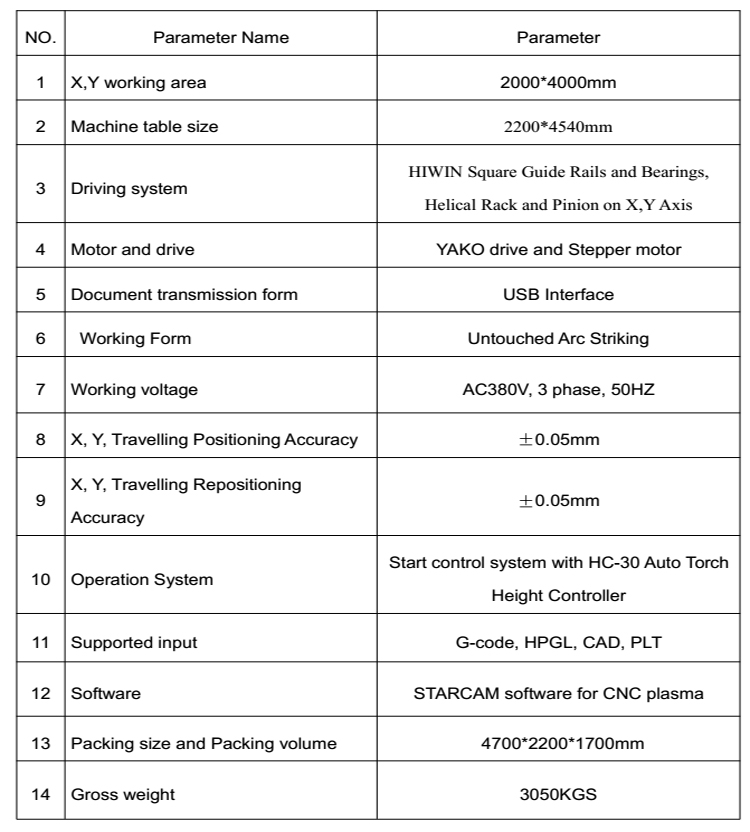

The Main Technological Data for P2040 Sheet CNC Plasma Torsh Cutting Machine
Plasma cutting machine is a highly efficient automated cutting equipment, which applies to all kinds of carbon steel, stainless steel, as well as precision sheet metal cutting non-ferrous metals. Widely used in sheet metal manufacturer of metal materials and advertisement industry word or cutting of metal crafts.
