RONGWIN High-Precision CNC Flame & Plasma Cutting Machine for Heavy Steel Plate

RONGWIN High-Precision CNC Flame & Plasma Cutting Machine for Thick Steel Plate

RONGWIN Plasma Cutting Machine Applications

RONGWIN plasma cutting machines are high-efficiency automated solutions for precision cutting of carbon steel, stainless steel, and non-ferrous metals. They are widely used in sheet metal fabrication, metal processing, advertising signage production, and decorative metalwork manufacturing.

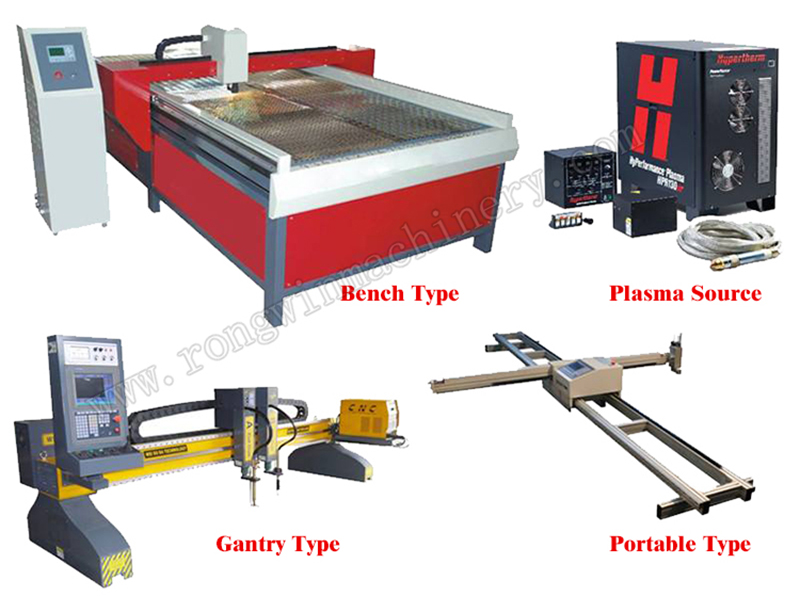

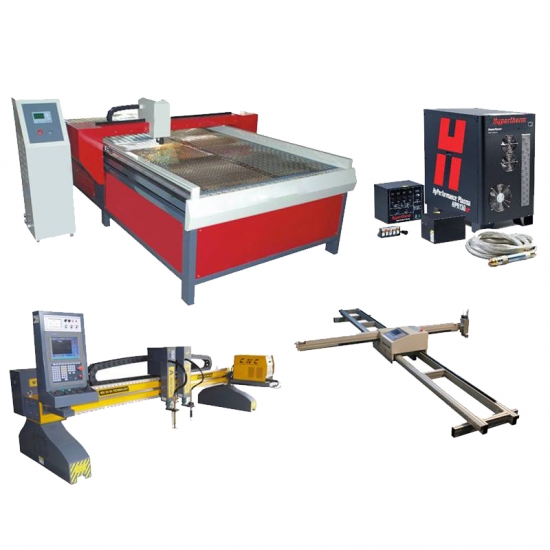

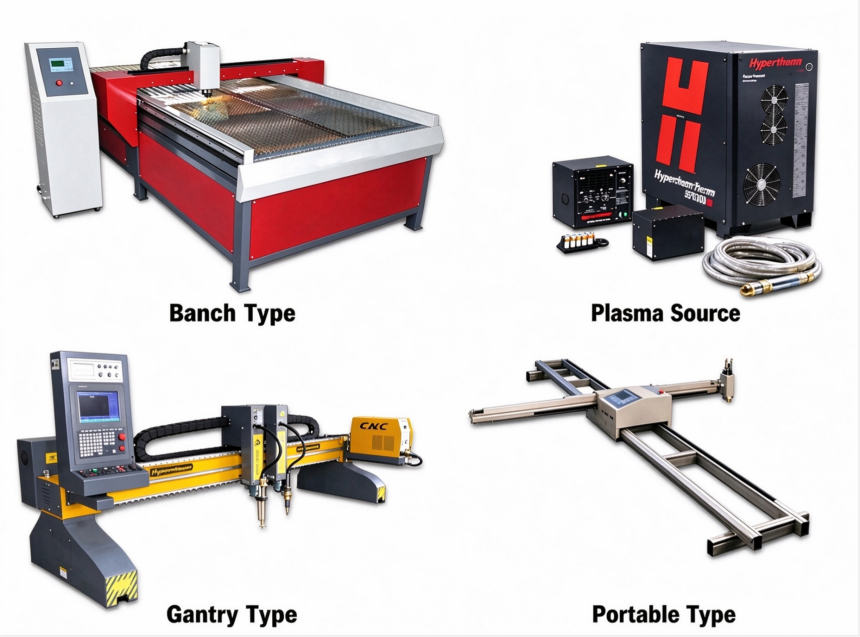

RONGWIN offers three types of plasma cutting machines to meet different production requirements and workshop layouts:

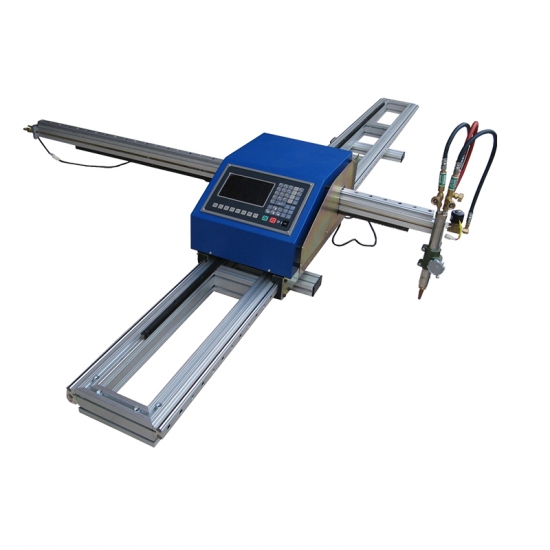

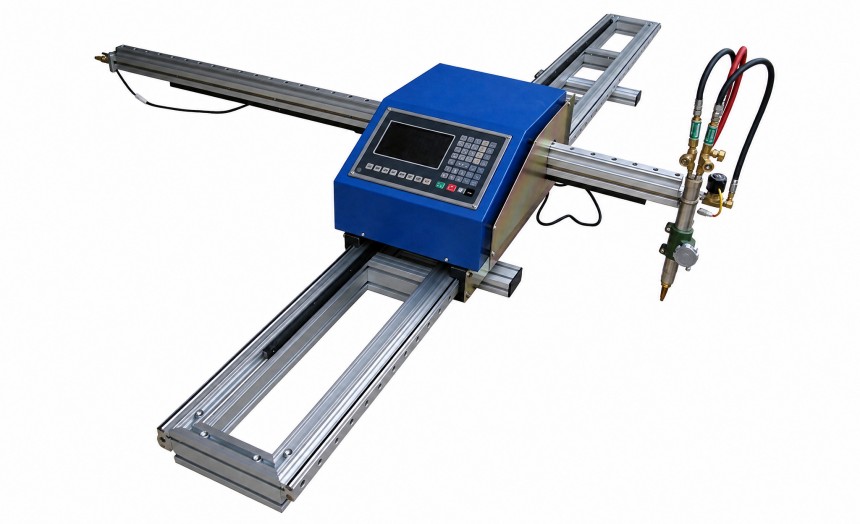

• Portable Plasma Cutting Machine: A compact and flexible solution for on-site cutting, small workshops, and mobile applications.

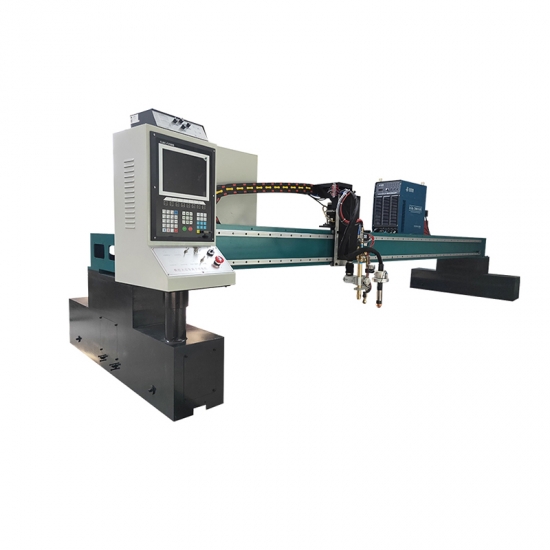

• Gantry Plasma Cutting Machine: A heavy-duty CNC cutting solution for large-format steel plates and high-volume production.
• Table Plasma Cutting Machine: An integrated cutting system designed for precision sheet metal fabrication and efficient workshop operation.

Customers can select the most suitable configuration based on material type, plate thickness, cutting size, production volume, and available workspace.

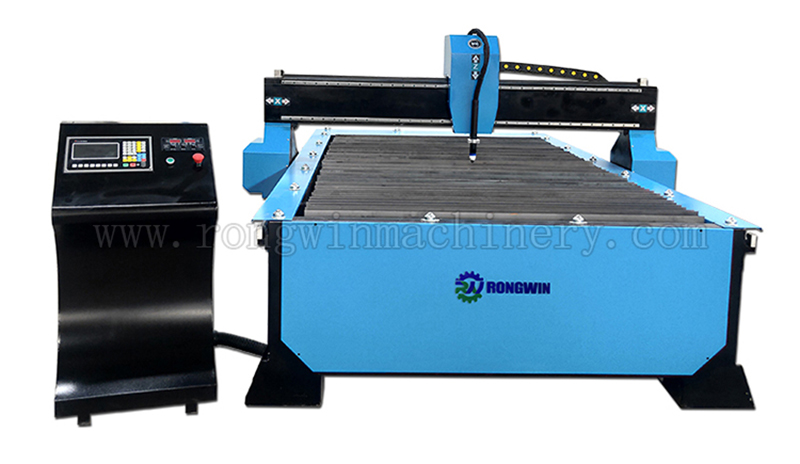

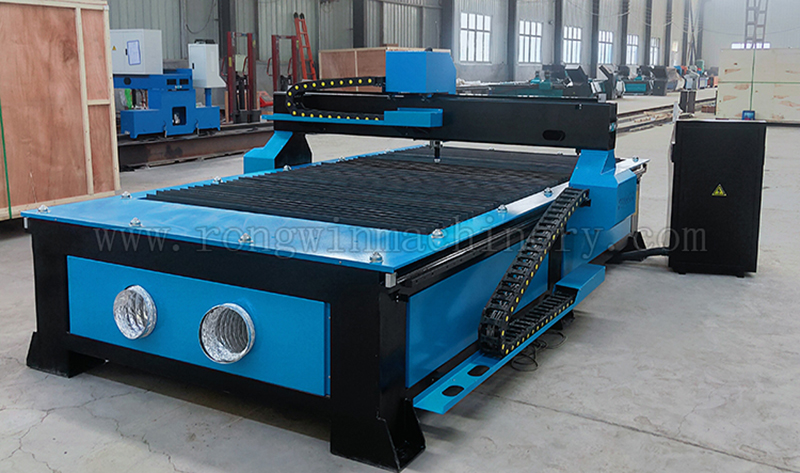

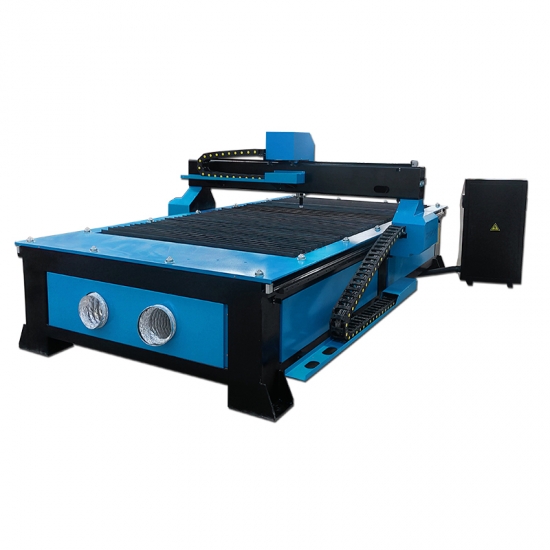

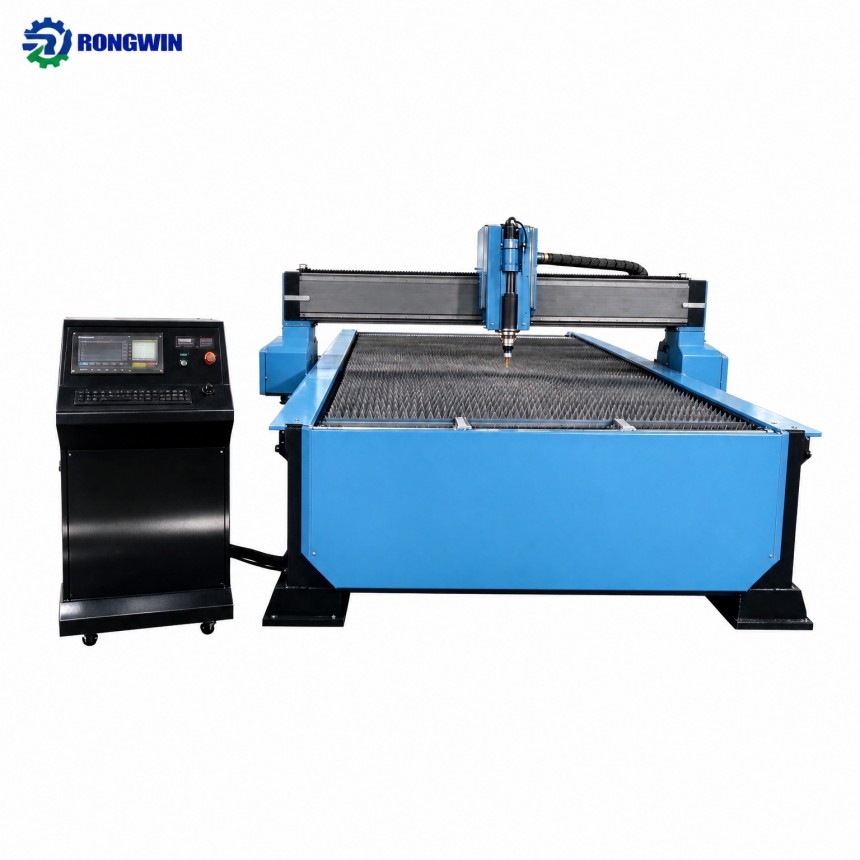

Key Features of RONGWIN Table-Type CNC Plasma Cutting Machine

1. Heavy-Duty Welded Machine Bed
   The machine bed is fabricated from thick-wall structural steel profiles, providing excellent rigidity, stability, and long-term durability.

2. Robust Dual-Layer Cutting Table
   Steel plates are securely supported on a cast protective table with serrated slats. The worktable is designed to withstand high-temperature cutting operations while protecting the material surface. The overall platform level tolerance is maintained within 0–1.5 mm.

3. Efficient Slag and Scrap Collection
   The inclined material discharge design directs finished parts and cutting scrap into collection channels on both sides of the machine, ensuring safe, clean, and convenient removal.

4. Precision Motion Transmission
   Equipped with Yako drives and stepper motors, together with helical rack-and-pinion transmission, the machine delivers low-noise, smooth, stable, and accurate axis movement.

5. Intelligent CNC Control and Nesting Software
   The CNC control system is paired with FastCAM nesting software, featuring automatic material-saving functions to improve plate utilization and reduce material waste.

6. Automatic Torch Height Control
   The self-adjusting torch height controller automatically maintains the optimum distance between the plasma torch and the workpiece, helping ensure stable cutting quality and accuracy.

7. Versatile Cutting Capability
   Suitable for cutting metal sheets in various thicknesses, including irregular, complex, and custom-shaped workpieces.

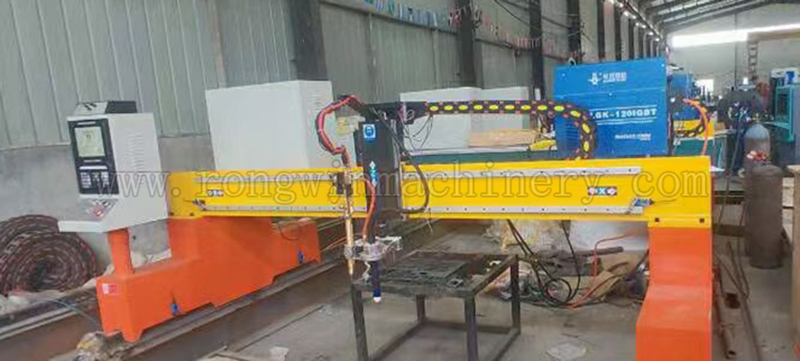

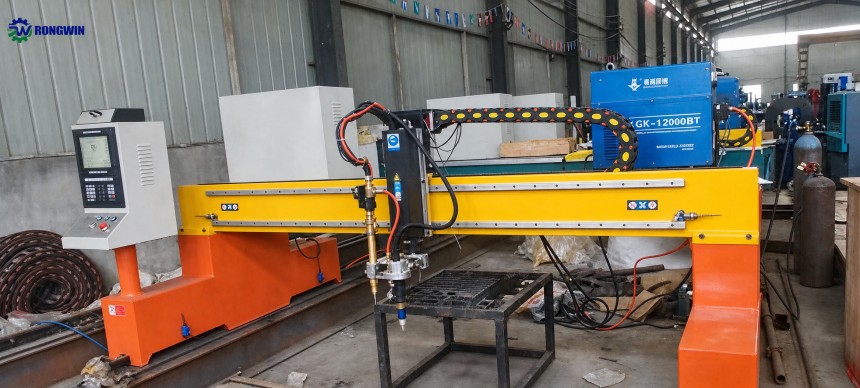

1. High-Rigidity Welded Crossbeam
   The crossbeam is fabricated from reinforced steel plates to provide high rigidity, strength, and low inertia. All welded components undergo stress-relief aging treatment to minimize structural deformation. Precision CNC machining ensures excellent straightness of the beam and guide rails, supporting consistent cutting accuracy.

2. Precision Rack-and-Pinion Drive System
   Both longitudinal and transverse axes use high-precision helical rack-and-pinion transmission. The transverse axis is equipped with high-speed dual-axis linear guideways for stable operation, long service life, and reduced maintenance requirements. Precision-machined longitudinal steel rails ensure smooth, accurate, and durable machine travel.

3. Stable End-Carriage Guidance
   The longitudinal drive frame is fitted with horizontal guide wheels. The eccentric adjustment mechanism allows the guide-wheel preload to be precisely set, ensuring stable guidance throughout machine movement. An integrated rail-cleaning device removes accumulated debris to keep the guide rail surface clean.

4. High-Temperature Airtac Solenoid Valves
   The machine uses high-temperature-resistant Airtac solenoid valves for reliable gas-flow control during flame cutting. The four-valve automatic ignition system enables one-time flame adjustment, eliminating repeated manual adjustments and improving production efficiency.

5. AC Servo Drive Technology
   The AC servo drive system provides smoother machine motion, a wider speed range, faster acceleration, and improved positioning performance.

6. Dual Safety Limit Protection
   Electronic and mechanical limit devices are installed to protect the machine during operation and provide reliable travel-limit safety protection.

7. Stable Gantry CNC Control System
   The gantry-specific CNC control system offers reliable anti-interference performance, powerful operating functions, and an intuitive interface. It is easy for operators to learn and supports efficient daily production management.

8. Intelligent Nesting and Programming Software
   Advanced nesting software supports interactive nesting, automatic programming, cutting simulation, verification, and cost calculation. Automatic common-line nesting and bridge continuous cutting functions improve material utilization, reduce steel waste, save consumables such as plasma nozzles and electrodes, and increase overall cutting productivity.

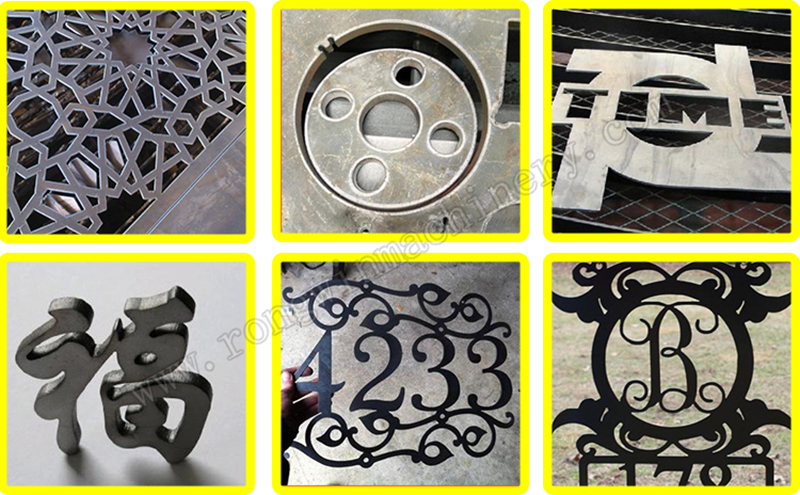

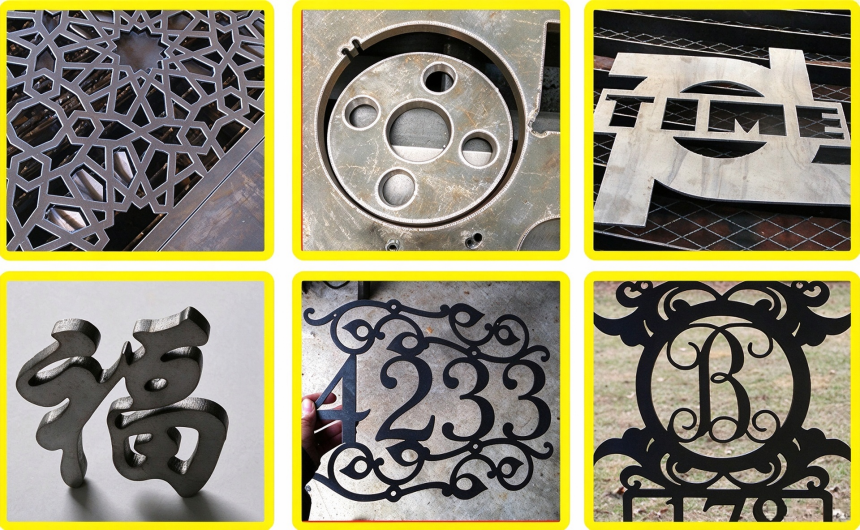

RONGWIN CNC Plasma Cutting Machine Cutting Samples

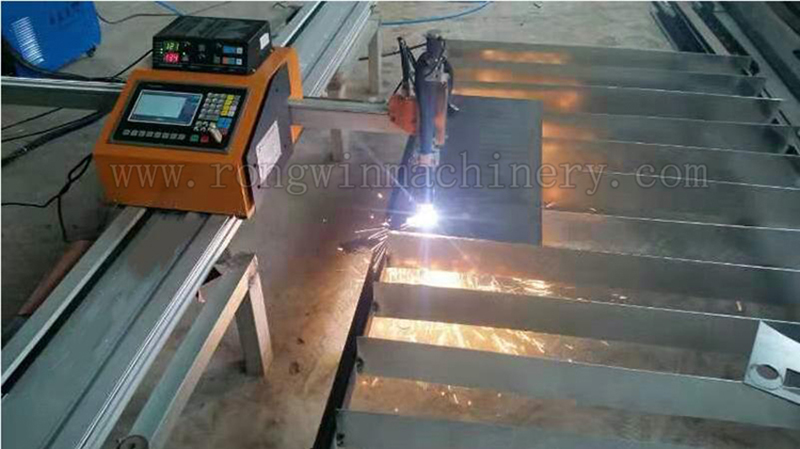

Practical Applications of RONGWIN CNC Plasma Cutting Machines

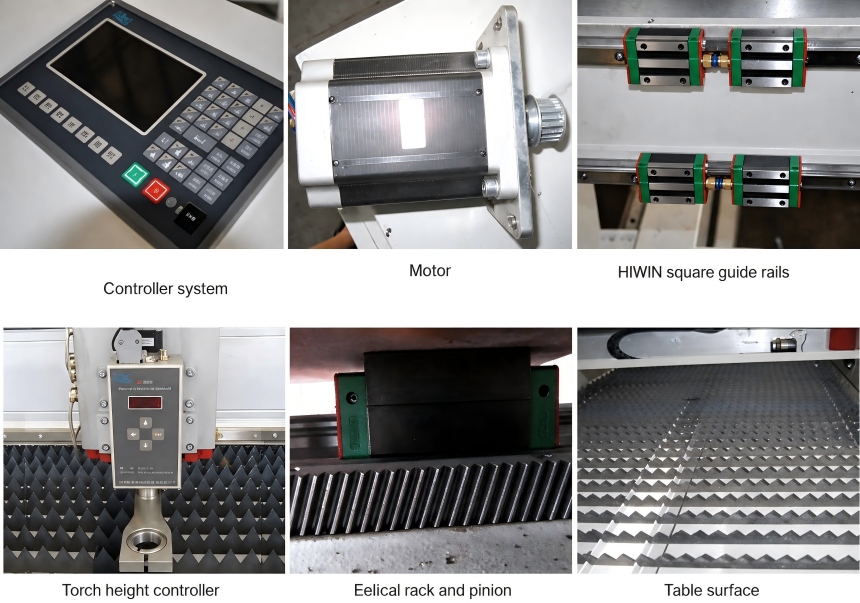

RONGWIN high accuracy CNC plasma cutting machine details

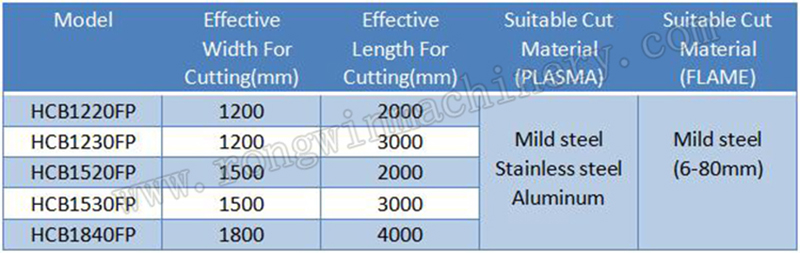

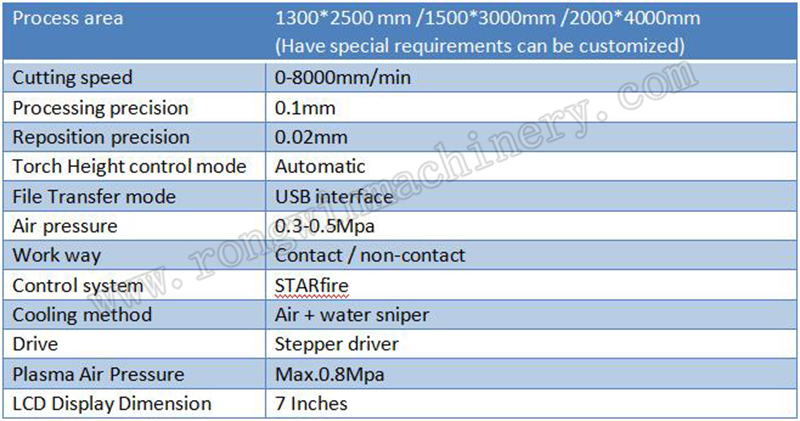

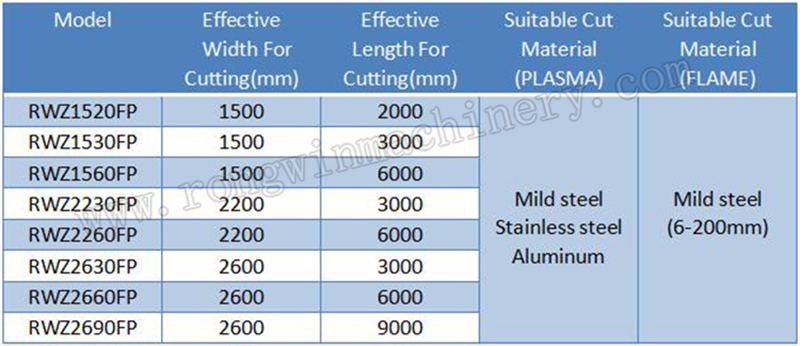

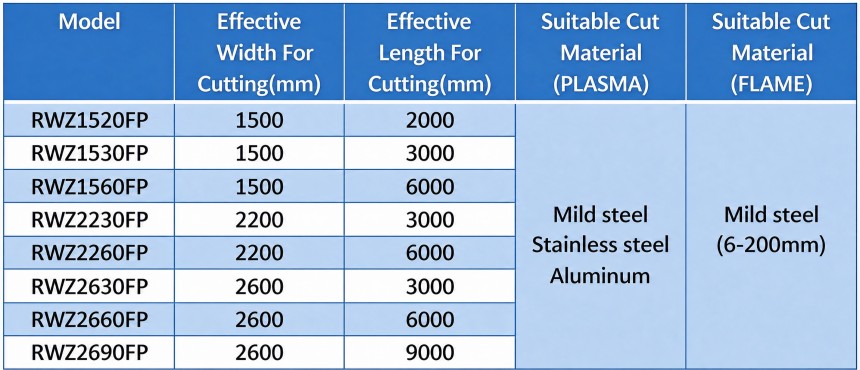

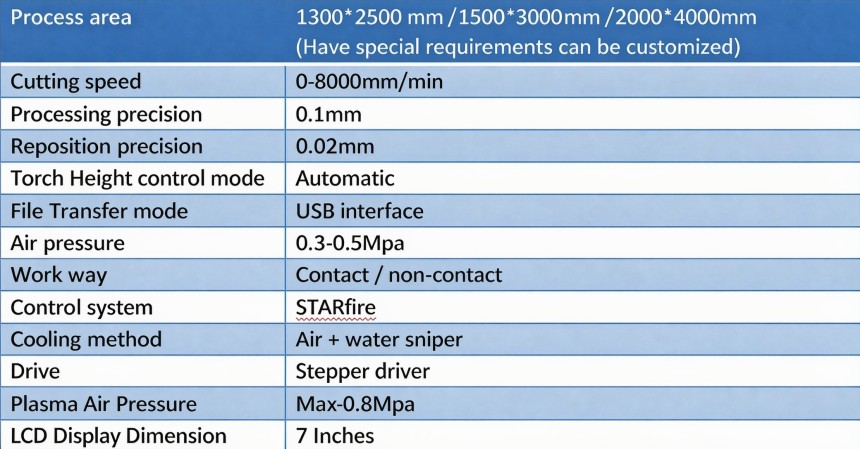

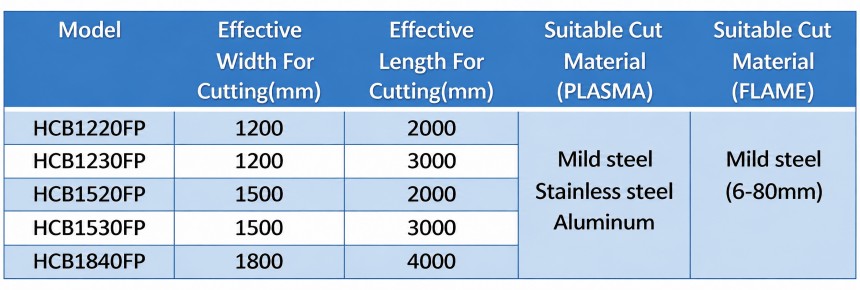

RONGWIN high accuracy CNC plasma cutting machine parameters

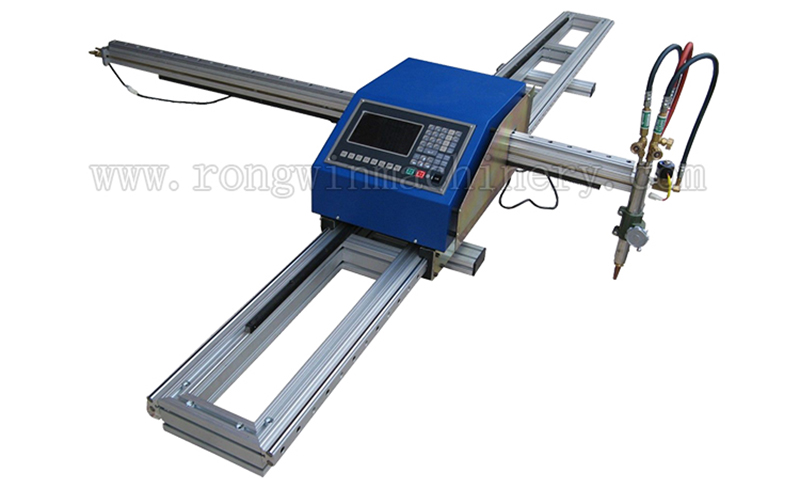

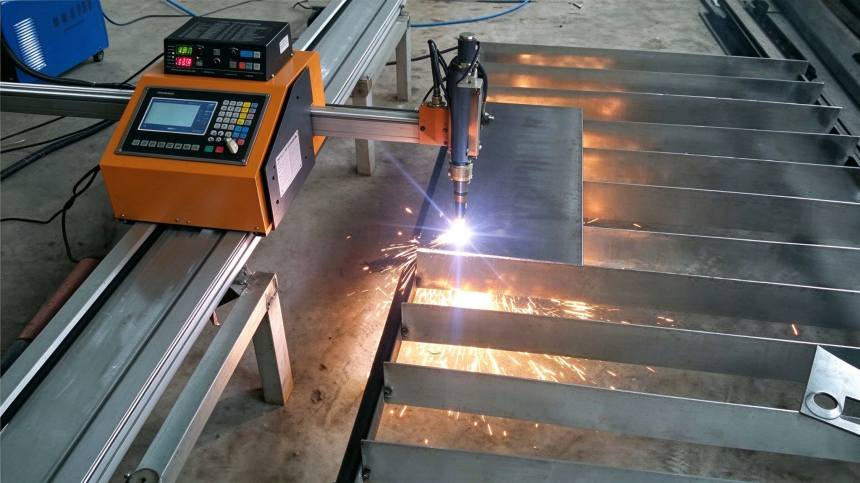

Portable type

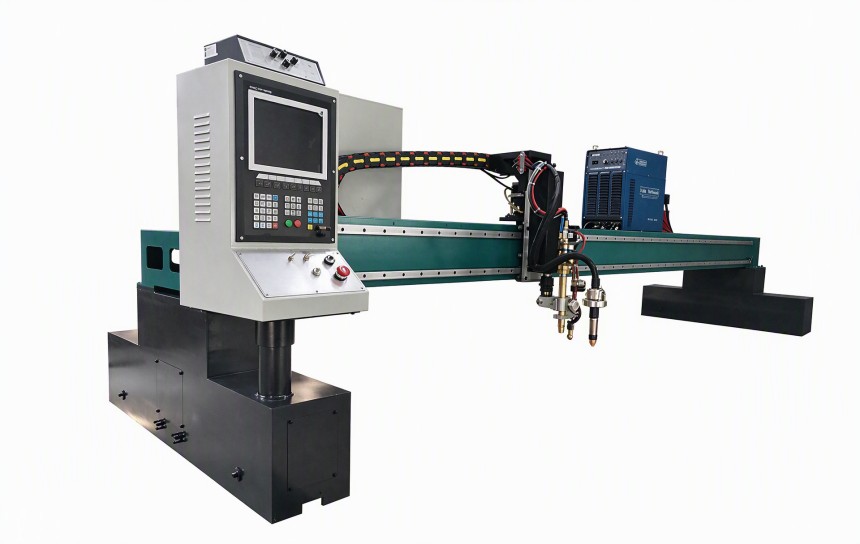

Gantry type

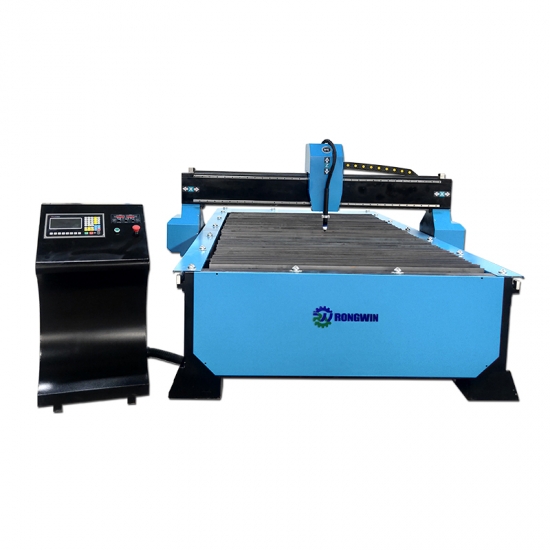

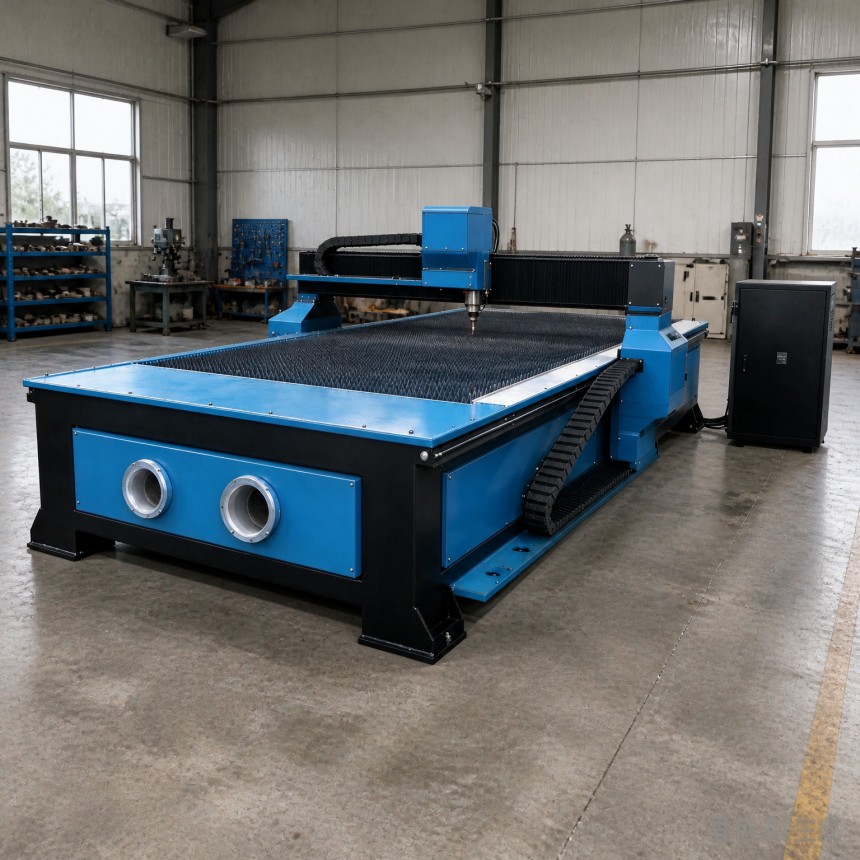

Table type
