RW-VC01-1250x3200 Automatic CNC Metal V-Cutting Machine

RONGWIN Brand CNC Metal V Cutting Machine is widely used in the sheet metal V-cutting, U-cutting and other irregular v-cutting processing ,which is including stainless steel, aluminum, aluminum plate, copper, iron, plastic, wood, acrylic panels and other special plates. Particularly, it is can applicable to the V-groove processing of sheet metal before bending .

item no.:
RW-VC01-1250x3200
lead time:
30 working days after receiving deposit
product orgin:
China
brand:
RONGWIN
shipping port:
Shanghai
payment:
TT, L/C, West union, Money gram, etc
color:
optional

contact now

description
components
technical parameters

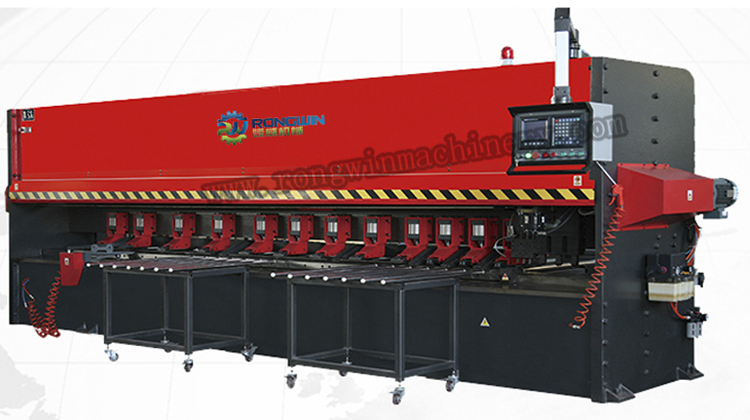

RW-VC01-1250x3200 Automatic CNC Metal V-Cutting Machine

Please check our Video here :

Main Features of CNC Metal V Cutting Machine

HD-VC01 type CNC sheet metal Auto V Cutting Machine is our company scientific research personnel at home and abroad of sheet metal V-Cutting machine based on the research and development of the upgrading of products, the European security design standard, correct and streamlined design, this machine has all the properties of the traditional models, fully solve the customer encountered in the actual operation process of the a series of problems.

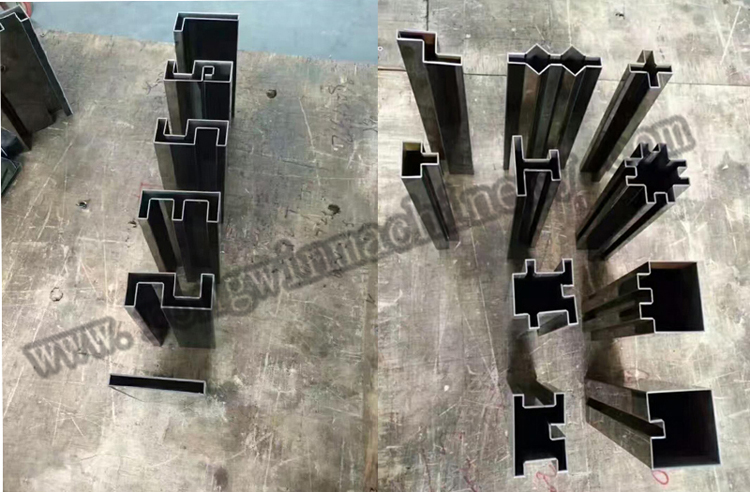

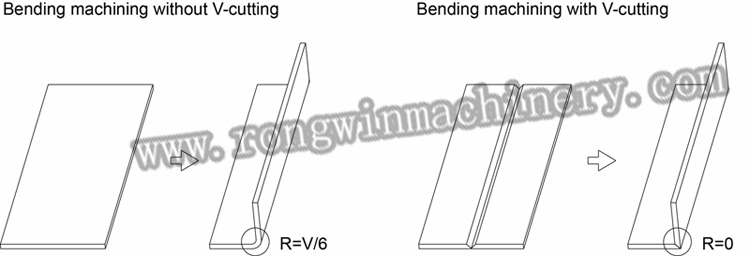

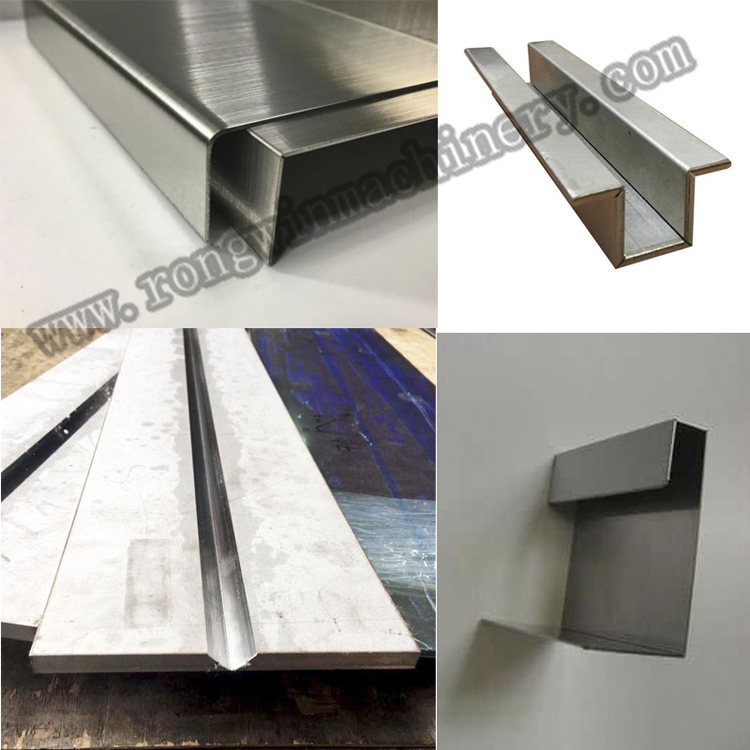

The detail advantage of the the V-groove processing of sheet metal V-Cutting Machine before bending

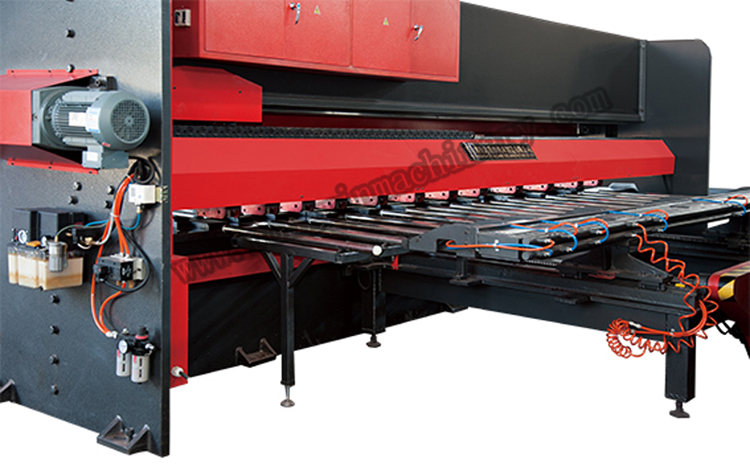

Detail Image of the Automatic CNC Metal V-Cutting Machine

1)The whole body of the CNC Metal V-Cutting Machine is welded with steel, bolt fixed, aging treatment, CNC Floor milling machining， and it has good stability, high strength and smooth running;A steel surface by sand blasting and spray anti rust paint, the surface of the color is more beautiful; equipment instead of the traditional screw rod transmission mode for the import of fine grinding high-speed steel gear transmission, imported ball screw and high pitch, and imported high precision linear guide mute. Spindle system with servo motor with imported high torque star reducer as the drive, more easy to maintain, lower failure rate, the operation of the tool in the processing of the workpiece more stable.

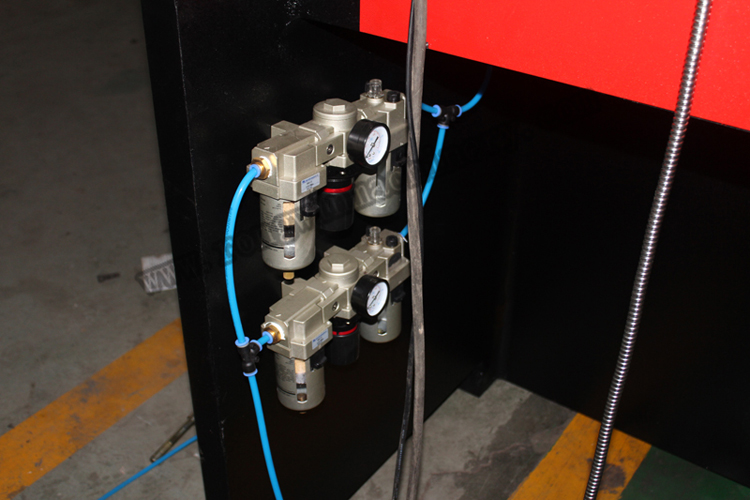

2)The equipment adopts pneumatic control system, automatic clamp plate, pressing and releasing pressure, stable and reliable, work fast, makes the products processed without clamping marks, indentation, automatic spray cooling method for cooling, rapid cooling of the tool, prolong the service life of the cutter.

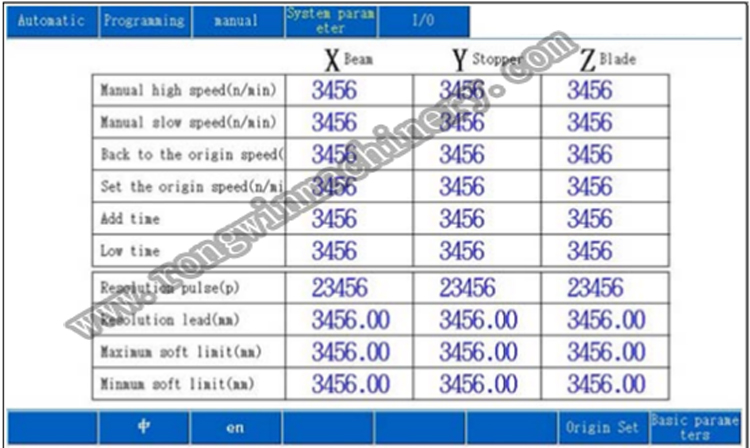

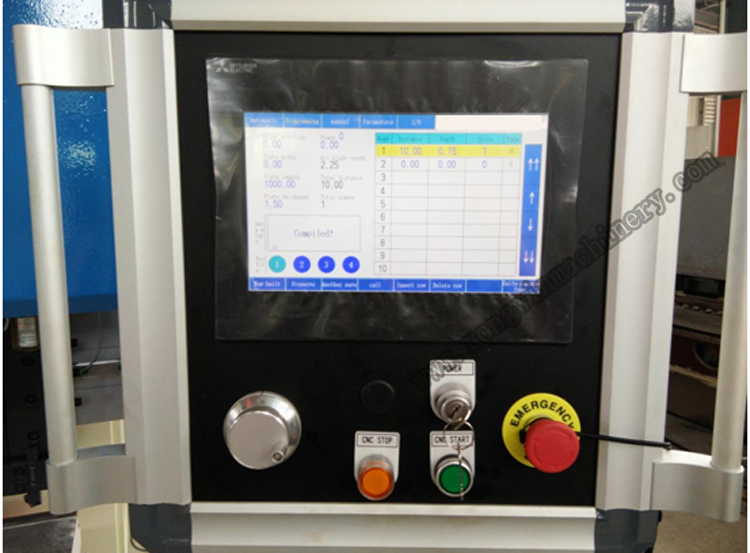

3)Equipment of the Metal V Cutter Machinery using PLC man-machine interface programming. Easy to learn and easy to understand, accurate positioning.

After Sales service of CNC V Cutting Machine
Ⅰ:THREE years warranty for the Automatic Sheet Metal CNC V-Cutting Machine

Agent Wanted

Our CNC Metal V Cutting Machine have exported to more than 20 countries . Mild Asian, Russia, America, North America, Africa. And already have more than 2 directly agent around the world ,whole sellers ,retailers etc.
We want more agent join us .We hope our machines and tools can export to more than 80 countries and can establish deep cooperation with more than 50 machine dealers and distributor in near future. Undoubtedly we must provide best price and service to support WIN-WIN Cooperation.

Main Configuration of RW-VC01-1250x3200 Automatic CNC Metal V-Cutting Machine

Number	Name	brand
1	High precision ball screw	Taiwan TBI C5
2	Precision linear guide	Taiwan HIWIN
3	Angular contact bearing	NSK
4	Electrical components	Schneider, France
5	Power cable	Germany igus
6	Pneumatic components	AirTAC
7	Proximity switch	Omron
8	operating system	MITSUBISHI touch screen
9	Alloy blade	Troy, South Korea
10	Pneumatic components	Taiwan AirTAC/WUXI HUATONG

Technical Data of RW-VC01-1250x3200 Automatic CNC Metal V-Cutting Machine

No	Program	Unit	Number
1	Max thickness	mm	4 stainless steel
2	Max length	mm	3200
3	Max width	mm	1250
4	Min thickness	mm	/
6	Back gauge speed	m/min	5
7	X axis cutting speed	m/min	40-60
8	X axis backing speed	m/min	60
9	Y axis min set	mm	9-15(according blades)
10	Y axis min solution	mm	0.01
11	Z axis min solution	mm	0.01
12	Y axis motor power	Kw	1.5
13	X axis motor power	Kw	3
14	Z axis motor power	Kw	1
15	Outline dimension	mm	490022002000 LWH
