item no.:
J23-63Tlead time:
30 daysproduct orgin:
Anhui, Jiangsu, Shandong, Zhejiang, Shanghai .brand:
RONGWINshipping port:
Shanghai, Nanjingpayment:
T/T , L/Cprice:
$1200market price:
$1200color:
Green as main color, can be customerisedFor the power press machine, people always use it to make holes on metal or punch the metal
sheet to different shape. Normally this machine is using on door making or making metal box.
We can supply customer mechanical power press ,fast speed hydraulic type press machine,
Pneumatic system press machine, also we can install electric safety guard on our press machine .
We can make the machine in casting structure ,also we can make it in welding structure,
it depends on customer's request.

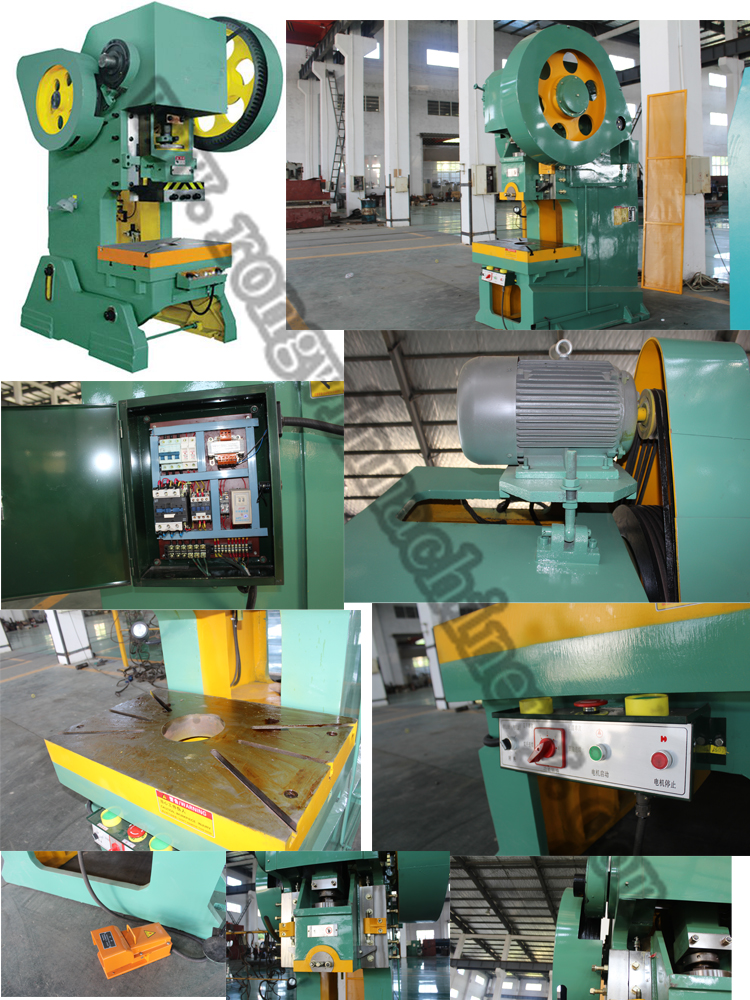

The details image of Power Press J23-63T
optional Feeding Table photo image of power press

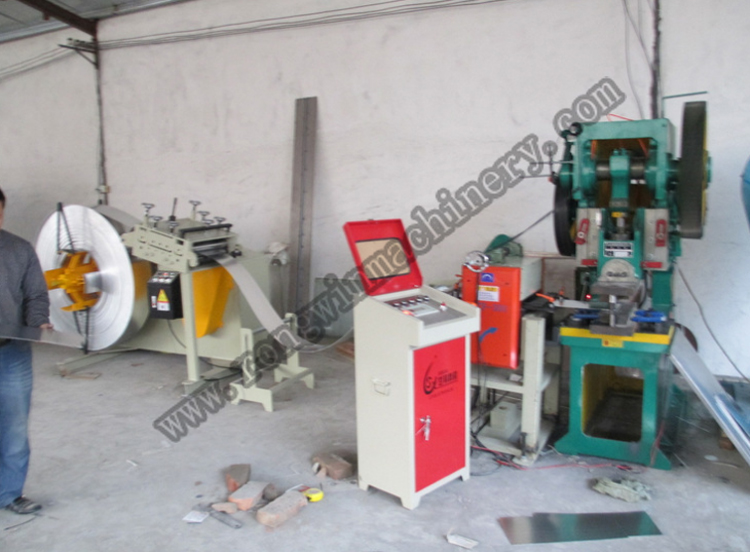

Optional Uncoiler & Rectifier and Feeder Photo Image of power press

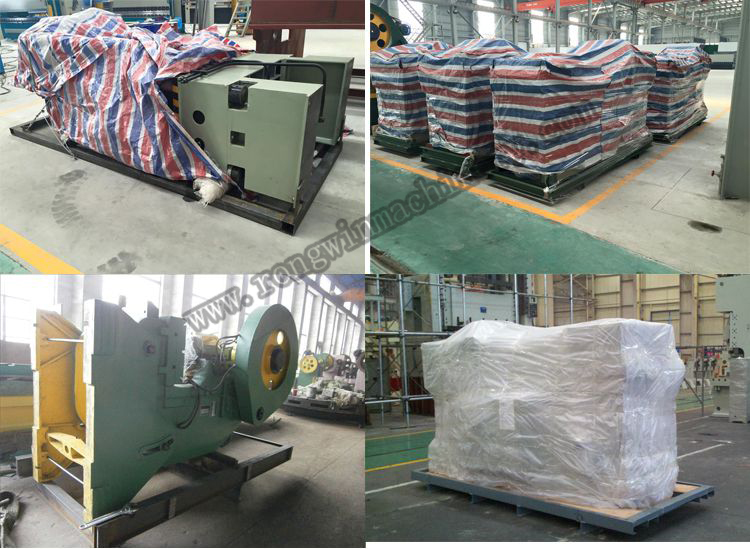

The detail packing image of power press
For Power Press machine:
We have different model , our machine capacity is from 10T-125T;
Model is from J23-10T ~ 125T.
Open Tilting Type Power Press Technical Data-J23 series | |||||||||||
Technical Data | Unit | J23-160T | J23-125 | J23-100 | J23-80 | J23-63 | J23-40 | J23-25 | J23-16 | J23-10 | |
Nominal pressure | KN | 1600 | 1250 | 1000 | 800 | 630 | 400 | 250 | 160 | 100 | |
Nominal pressure stroke | mm | 8 | 8 | 9 | 8 | 6 | 6 | 5 | 5 | 4 | |
Slipper stroke | mm | 150 | 150 | 130 | 115 | 110 | 100 | 70 | 60 | 50 | |
Slipper stroke times | min-1 | 65 | 35 | 45 | 45 | 50 | 55 | 70 | 140 | 145 | |
Max closing height | mm | 390 | 500 | 380 | 380 | 330 | 300 | 200 | 170 | 150 | |
Connecting rod adjuster | mm | 100 | 100 | 100 | 80 | 80 | 70 | 40 | 40 | 40 | |
Distance between slipper centre and machine | mm | 800 | 390 | 280 | 250 | 230 | 215 | 180 | 160 | 130 | |
Work bench dimension | Front & Back | mm | 700 | 720 | 540 | 480 | 440 | 400 | 320 | 300 | 240 |
Left & right | mm | 1000 | 1100 | 840 | 750 | 700 | 650 | 525 | 480 | 360 | |
Diameter of blank-holding hole | Front & Back | mm | 200 | 250 | 200 | 250 | 140 | 200 | 160 | 110 | 100 |
Left & right | mm | 200 | 420 | 370 | 340 | 280 | 280 | 220 | 220 | 180 | |
Diameter | mm | 200 | 320 | 300 | 290 | 240 | 220 | 200 | 160 | 140 | |
Slipper underside bore | Front & Back | mm | 400 | 480 | 270 | 250 | 250 | 230 | 170 | 180 | 150 |
Left & right | mm | 370 | 540 | 360 | 320 | 320 | 260 | 230 | 200 | 170 | |
Size of die handle bore | Diameter | mm | 80 | 60 | 60 | 60 | 60 | 50 | 40 | 35 | 30 |
Depth | mm | 80 | 75 | 80 | 80 | 70 | 70 | 60 | 60 | 50 | |
Pole Distance | mm | 630 | 550 | 380 | 300 | 300 | 300 | 240 | 220 | 180 | |
Thickness of spacer | mm | 140 | 130 | 100 | 95 | 80 | 75 | 50 | 50 | 50 | |
Angel of inclination | 。 | 20 | 13 | 20 | 20 | 20 | 20 | 20 | 30 | 30 | |
Motor Power | Power | KW | 15 | 11 | 7.5 | 7.5 | 4 | 3 | 2.2 | 1.5 | 101 |
Round speed | r/min | 970 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 940 | 960 | |
Dimension | Frount & back | mm | 1800 | 2504 | 1800 | 1790 | 1700 | 1500 | 1200 | 1130 | 610 |
Left & right | mm | 1800 | 1790 | 1360 | 1320 | 1280 | 1150 | 900 | 750 | 880 | |
Height | mm | 2800 | 3715 | 2850 | 2550 | 2470 | 2370 | 2050 | 1890 | 1660 |

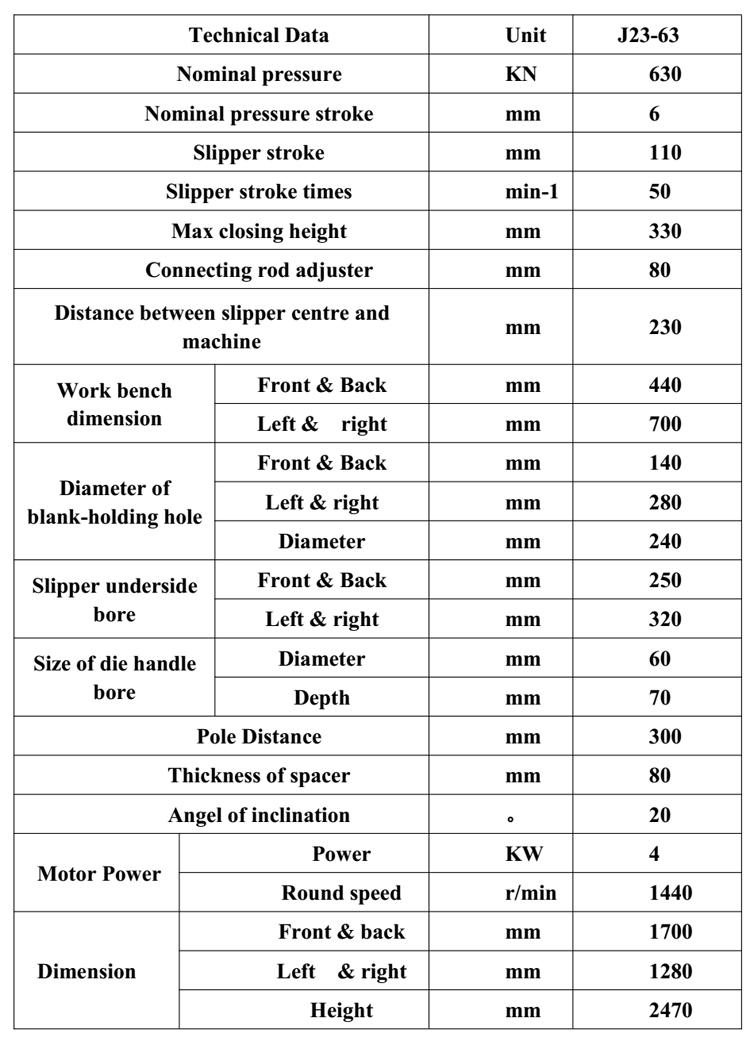

Power Press J23-63T Power Press Technical Specification
