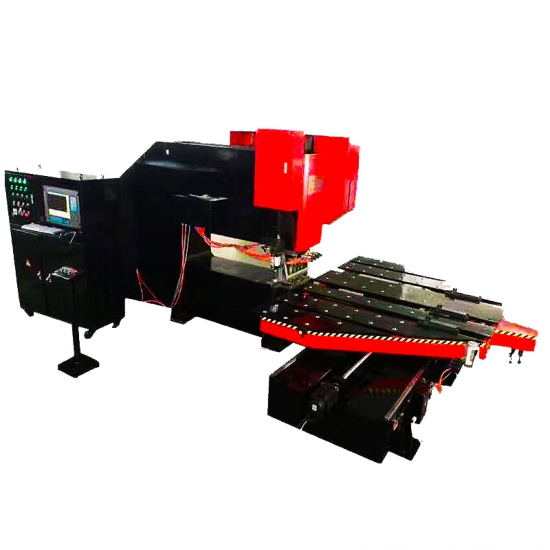

Mechanical Multiple Hole Punch Press Machine With CNC Feeder

This kinds of Open Frame Mechanical Multiple Hole Punch Press Machine with CNC Feeder is mainly use punching mesh hole . Compared with CNC Turret Punching Machine . This Hole Punch Press Machine is more economical
  • item no.:

    RWD-P30
  • lead time:

    30 working days
  • product orgin:

    China
  • brand:

    RONGWIN
  • shipping port:

    Shanghai , Any port of China
  • color:

    According to customer requirment
  • description
  • components
  • technical parameters

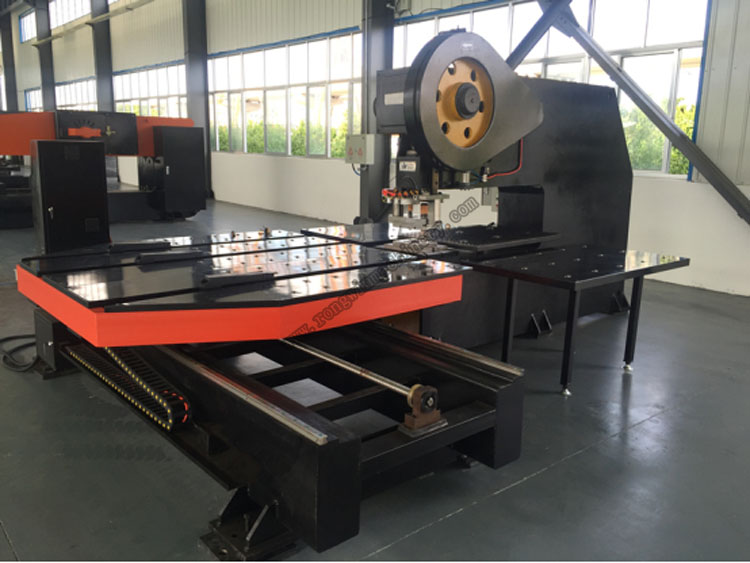

Mechanical Multiple Hole Punch Press Machine With CNC Feeder

Please check our hole punch press machine working video here :


Performance Feature of the Hole Punch Press Machine

·Industrial computer (industrial PC) system, RWD CNC machine processing software, can achieve field programming, backstage programming, wide screen LCD monitor, the pictures are more clear and beautiful.

 ·Equipped with long leading screw and guide rail,extra big feeding platform.

 ·Equipped with Japan YASKAWA servo motor; Imported precision double linear guide, ensure high precision, long service life; Import coupling, ensure durability, calibration coefficient high; Imported precision big palpitation high-precision whole steel ball screw, and to ensure the high machining accuracy and speed.

 ·Can be realized AutoCAD diagram automatically convert to processing code, easy to operate, complete functions.

 ·Wide guide design, improve the operation stability of machine, guarantee the machining accuracy of big plate thickness plate. Welding lathe bed, whole tempering treatment, eliminate stress, guarantee the long-term stability of the machine; Platform special strengthen design, high strength support, compact structure, smooth operation.

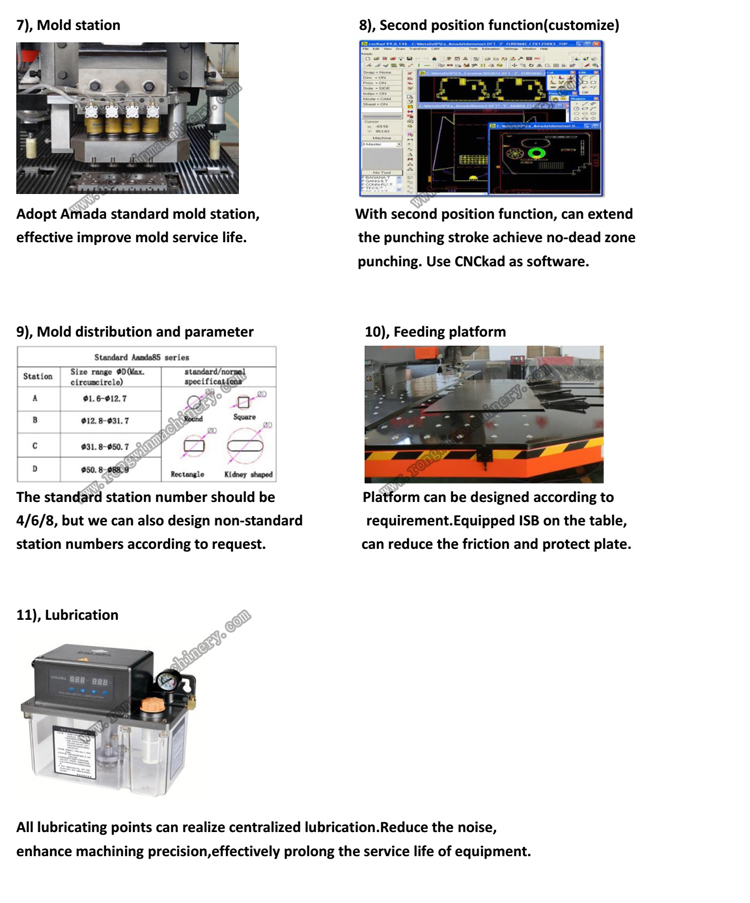

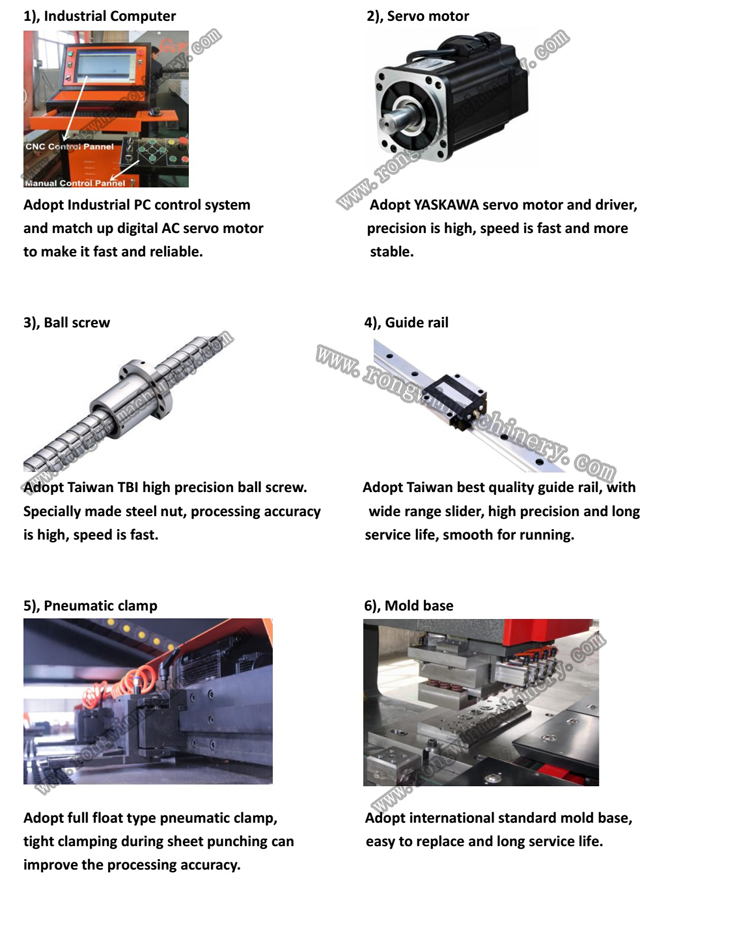

Detail Description of the Hole Punch Press Machine

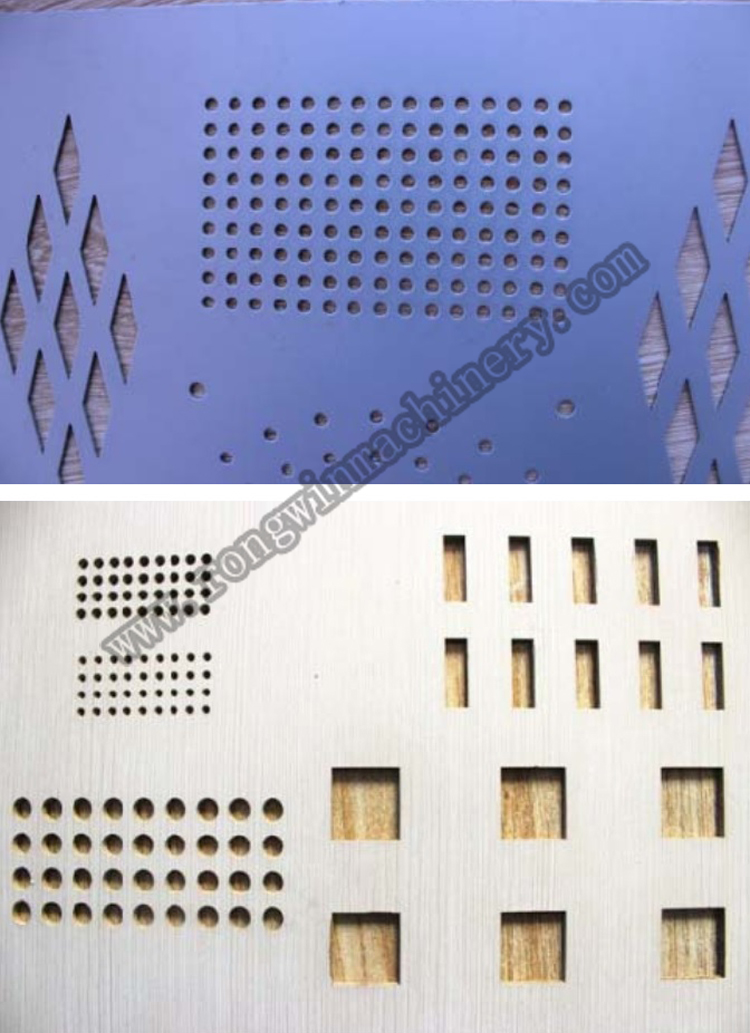

Sample image of Hole Punch Press Machine



The Warranty time of the Hole Punch Press Machine

We can promise you THREE Year Warranty for machine ,Lifelong maintenance.


Equipment configuration list of  Hole Punch Press Machine With CNC Feeder


Name

Type

Manufacturer

1Pneumatic Element

Air Processing Triplet

BFL3000

AIRTAC

Solenoid Valve

4V220-(3V210-08-NC)

AIRTAC

Muffler

FXS-8

AIRTAC

Screw linear,guide rail

Taiwan

2Electrical Equipment

Punch press

China top brand

        Jiangsu Starfire

CNC System

Taiwan IEI

Servo Motor

Japan YASKAWA

DC Power Source

Taiwan MW

Breaker

CHINT

Contactor

CHINT

Relay

Japan Omron

Approach Switch

Japan Omron



Main Technical Parameter of  Hole Punch Press Machine With CNC Feeder

Specification

Unit

RWD-P30

Transmission mode

/

Mechanical

Punch Force

KN

400

Power Rating

KW

3.5

Max. Processing Size

mm

3000*1250

Max. sheet Thickness

mm

4

Max. Punch Diameter

mm

Φ88.9

Max. Traversing Speed

m/min

40

Punching Frequency

hpm

110

Hole Accuracy

mm

±0.1

Number of stations in turret

No.

1-8 customize

Voltage rating

V

        Customize

Controlled Axis

No.

3

Air Pressure

mpa

0.6

Outline Dimension

mm

4700*3900*2250

Machine Weight

T

7
