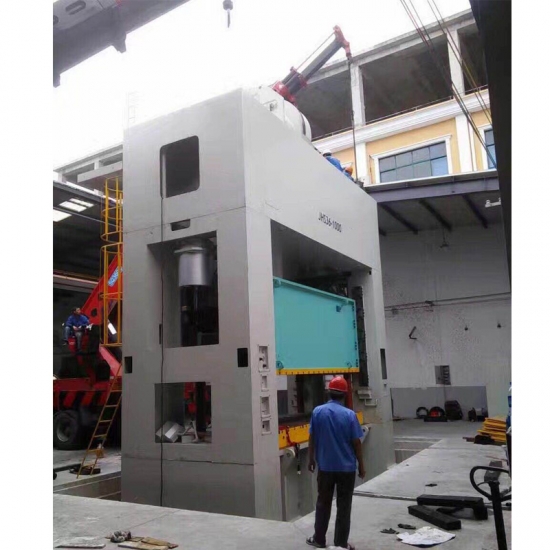

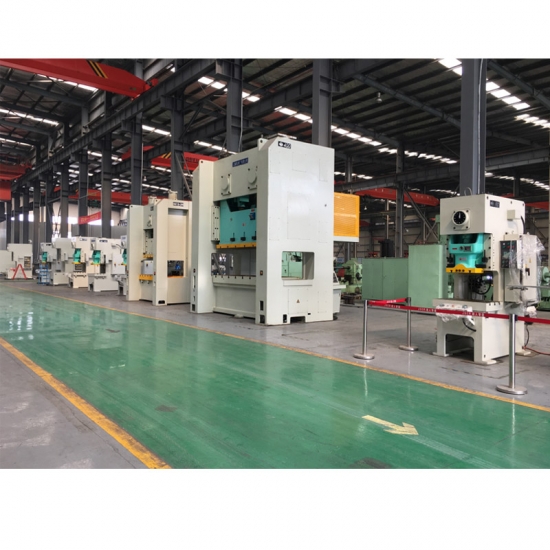

Closed Type Double-crank Press 630Ton capacity

Two. Machine accessories parts

S.No

Items

Quantity

Unit

Remark

1.

 Front moveable style worktable

Null

Set

Optional part

·  Loading

Null

·Moving distance

Null

·Moving speed

Null

2.

Clutch brake

1

Set

Pneumatic dry clutch and brake

3.

Hydraulic overload protection device

1

Set

·Protective stroke ： 20 mm

·Automatic recovery time: within 120 seconds

·The overloading pressure is set at 105% of the capacity of the press, which can be relieved automatically or manually

4.

Electric slide adjusting mechanism

1

Set

·Adjusting speed:50 mm/min

·Die mounting height display accuracy on slide ±0.1mm

·Slide position automatic adjusting with manual adjusting

5.

Controller (colorful screen)

1

Set

Taiwan Delta

·Style: Separated electric cabinet

·Main operating panel includes these parts,as below:

 PLC, Delta brand

Crankshaft Angle Indicator (Electronic)

Main motor galvanometer

Stroke times indicator(electric style)

Lower dead position indicator

           Padlocked toggle switch

·Position：Right front side wall of machine

·Adjusting CAM control

                Clutch、breaker air pressure detector

              Double circuit exit brake control and detector

              Safety grating detection loop is reserved

                The second drop detection device

                Double circuit emergency stop control

               Safety stop block and pin locker

                Monitoring of solenoid valves for clutch and brake

                Emergency stop lock

6.

Safety device

·Ladder ensuring switch and main  machine lock

1

Set

·Emergency stop

5

Pieces

.Laser safety guard

2

Pieces

Position:each piece on Machine left and front,left and backside, right and front side, right and back side  and T style operating panel;

·safety block and safety pin

2

pieces

7.

Flywheel brakes

1

set

·Braking time: within 120 seconds

8.

Machine lubrication system

1

Set

·Thin oil circulating lubrication system

Lubrication point: press drive shaft, gear, slide guide, bearing

·Intermittent electric thin oil lubrication system:

Lubrication point : balancer

滑

.Thin oil circulating lubrication system:

10.

Air outlet（1/2B）

2

Group

11.

Blowing outlet （1/2B）

2

Group

·Adjustable CAM control

·

12.

Quick changing die position

Set

Optional parts

Die moving arm

Die lifting device

Die clamping device

13.

Moveable T style operating Console

1

Group

·Quantity ： one group

·Position： Right front side and back side of the machine

·Button function：

                 Two hands button

                 Emergency stop button

                 Up dead position stop button

                Reset button

S.No

Item

Brand

Remark

1

PLC

Delta

2

Touch screen

Delta

3

Inverter

Delta

4

The circuit breaker

Schneider

5

 Contactor

Schneider

6

Relay

Japan OMRON

7

Laser safety

China brand

8

Main motor

China brand

9

Slide adjusting motor

Siemens

10

Approaching switch

Schneider

11

Switch button

Schneider
