Duct Manufacturing Auto Line V

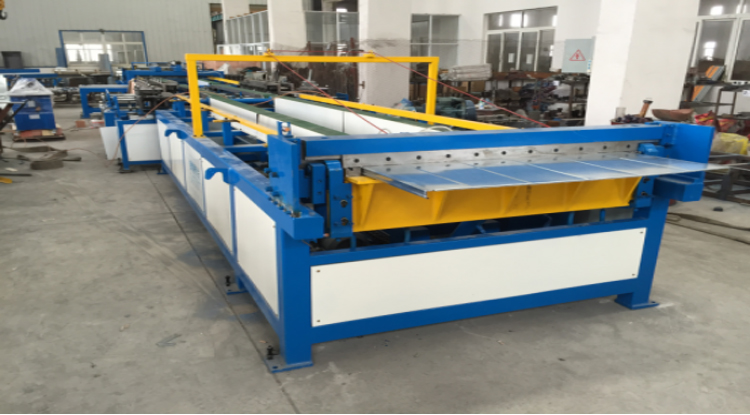

Recetangular Sheet Metal Duct Manufacturing Auto Line V

Our Recetangular Sheet Metal Duct Manufacturing Auto Line V is composed of rack,leveling embossing, hydraulic pointed mouth and square opening, hydraulic shearing machine, joint Angle displacement type nip machine, manipulator grabbing assumed a feeding platform, plate double joint flange and double linked list bone molding machine, servo feeding platform, TDF hydraulic crimping machine, electric control part adopts full computer control, bending servo feeding, positioning precision, especially the “口” word processing line, guarantee the precision of bending, its maximum feed speed is 16 m/min, the length of error of plus or minus 0.5 mm, the line can be processing TDF flange, are two kinds of Angle steel flange duct, exchange is simple and rapid.

  • item no.:

    RWL-V

  • lead time:

    30 working days after receiving deposit

  • product orgin:

    China

  • brand:

    RONGWIN

  • shipping port:

    Shanghai

  • color:

    optional
contact now
  • description
  • components
  • technical parameters

Recetangular Sheet Metal Duct Manufacturing Auto Line V

Please check our this Recetangular Sheet Metal Duct Manufacturing Auto Line V working videos here


The main feature of Recetangular Sheet Metal Duct Manufacturing Auto Line V

The features of this Recetangular Sheet Metal Duct Manufacture Auto Line V are covers can area of small, linear processing, high production efficiency, can make a small section of the “mouth” word wind pipe. TDF the minimum section machining can be as small as 200*200 mm.

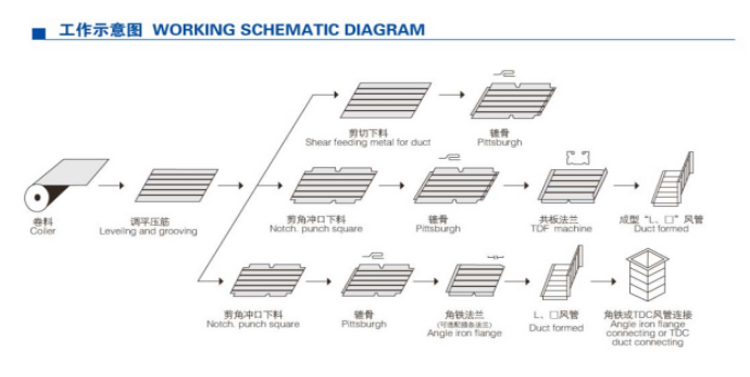

Working Schematic Diagram of Recetangular Sheet Metal Duct Manufacturing Auto Line V



SASIC EQUIPMENT of Recetangular Sheet Metal Duct Manufacturing Auto Line V
Electric feeding rack two (3000*1900*950mm*2)
Leveling, beading, punch, die opening,cutting plate machine
Displacement type joint angle reel bone machine
An electric feeding platform
Double linkage flange machine
A double linkage single bone (angle iron flange machine)machine
A servo feeding platform
Hydraulic bending machine
A set of computer control system and software production
An electrical cabinet

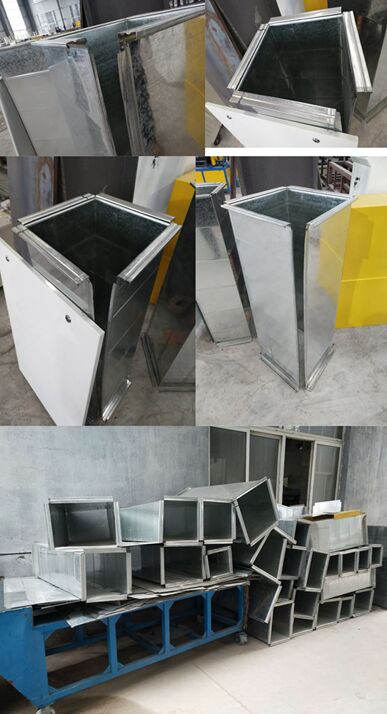

Sample image of Recetangular Sheet Metal Duct Manufacturing Auto Line V

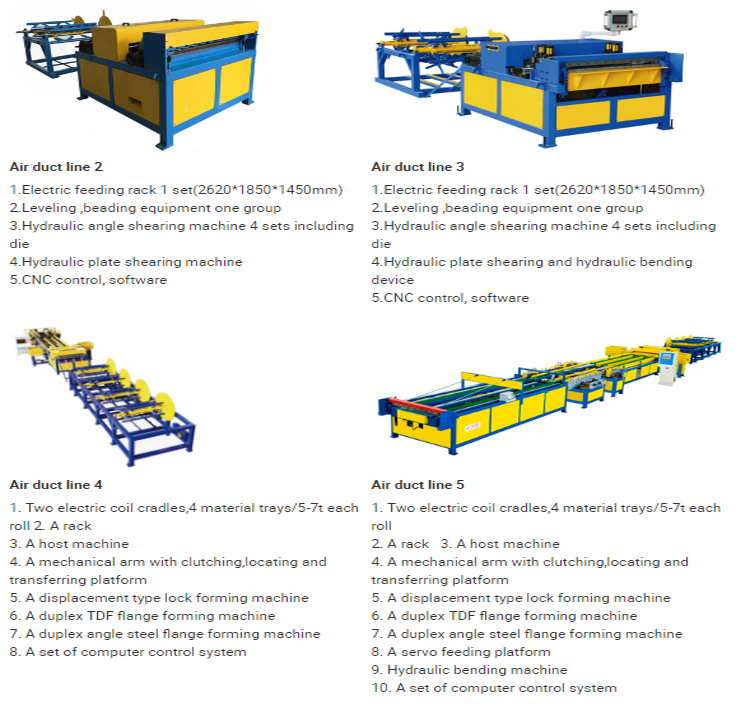

Besides this Recetangular Sheet Metal Duct Manufacturing Auto Line V, Please check our all this kinds of Dust Manufacturing Auto Line here .

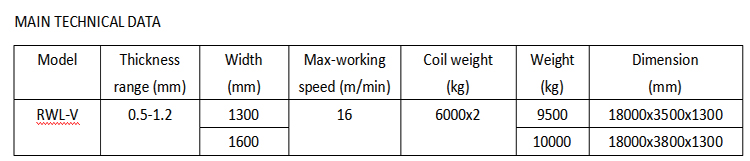

The Main Technical Date of this Recetangular Sheet Metal Duct Manufacturing Auto Line V
