U Shaped Automatic Air Duct Manufacturing Line V

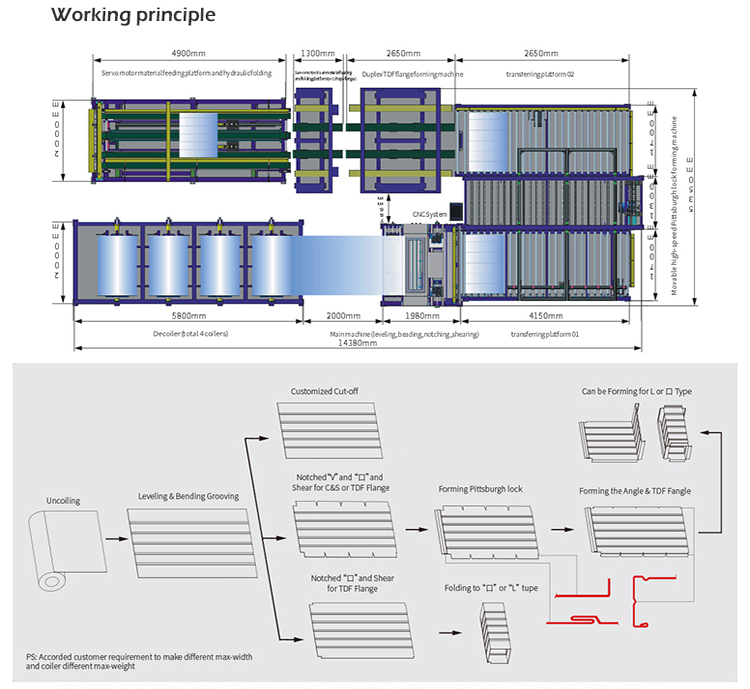

This kinds of U Shape Automatic Air Dust Manufacturing Line V is mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct,This production line can automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF / angle steel / C-shaped flange and folding.
  • item no.:

    U-RWL-V
  • lead time:

    30 working days after receiving deposit
  • product orgin:

    China
  • brand:

    RONGWIN
  • shipping port:

    Shanghai
  • color:

    optional
  • description
  • components
  • technical parameters

U Shape Automatic Air Dust Manufacturing Line V

The Main Features of U Shape Automatic Air Dust Manufacturing Line V :
   1)We use servo manipulator helps to ensure stability and
 speed of the machine, and the accuracy of its locating system during feeding mechanism with pneumatic.
   2)Compared with the linear type. This kinds of U Shape Automatic Air Dust Manufacturing Line V takes
      20-25 seconds to make one L-shaped workpiece and the efficiency will double
   3) In this U shape Line ,there is no moving back and forth the fixed locking machine is able to improve the efficiency.
   4)All the rolling reels are made of bearing steel ,So the lifetime prolongs by more than 5 times.
   5) Your waste is less than 20 mm per roll just because of the material-saving mode of CNC system
   6) This line with  production memory functions, so the production orders can be tracked and checked


The Basic Configuration of U Shape Automatic Air Dust Manufacturing Line V:
       1)Two electric coil cradles, 4 material trays (5-7 t each roll)
       2) One rack
       3) One host (line 2 host)
   4) Two stainless steel roller convey platforms
   5) One fixed joint locking machine
   6) One duplex TDF flange forming machine
   7) One duplex angle steel flange forming machine
   8) One servo feeding platform
   9)  One hydraulic folding machine
   10)  One set of computer controlling system

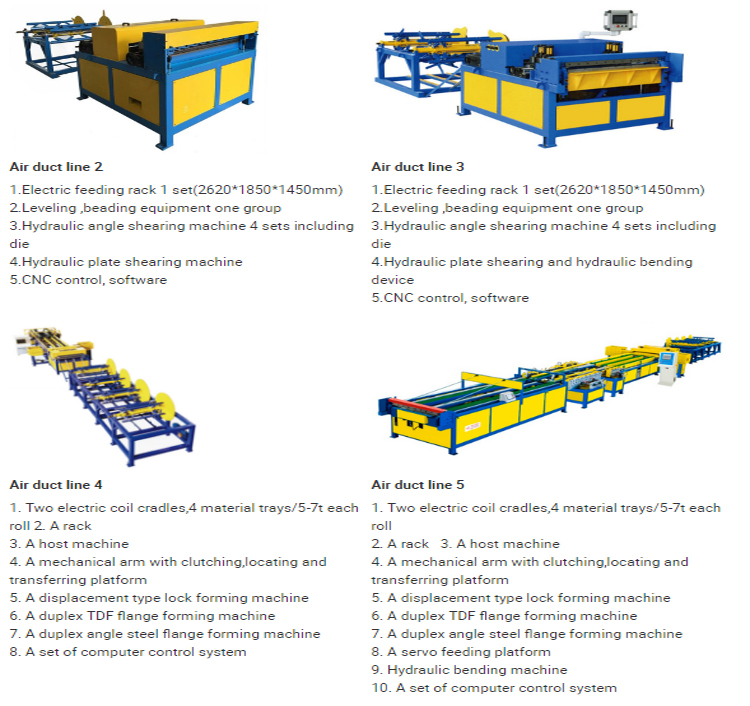

Please check our other kinds of Automatic Air Dust Manufacturing Line

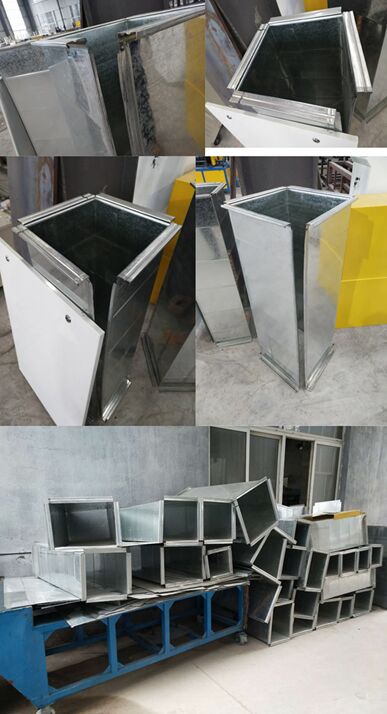

Sample image of U Shape Automatic Air Dust Manufacturing Line V




The Main import Configuration of U Shape Automatic Air Dust Manufacturing Line V

 1) MITSUBISHI HMI Display And PLC
2) MITSUBISHI Frequency Converter
3) Japan NEMICON Inverter
4)Taiwan Hydraulic Pump
5)Taiwan High Temperature Resistant Tubing

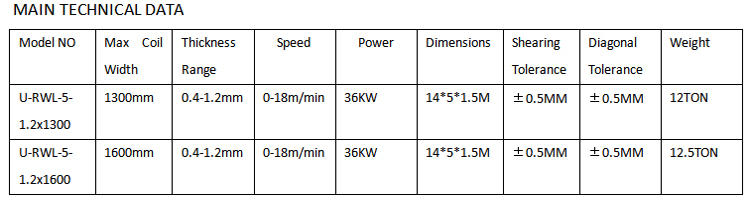

Main Technical Date of U Shape Automatic Air Dust Manufacturing Line V
