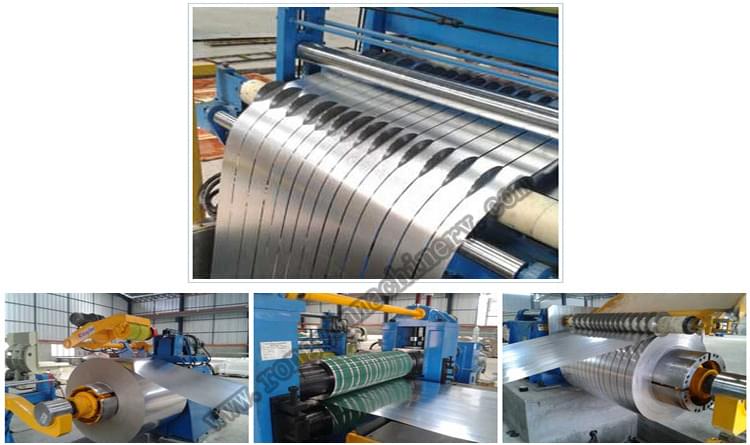

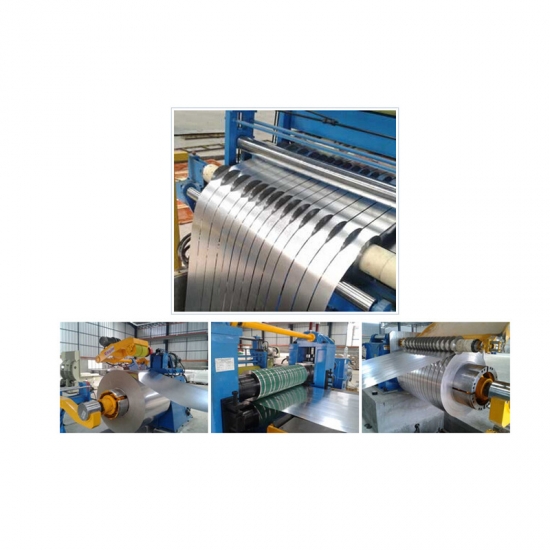

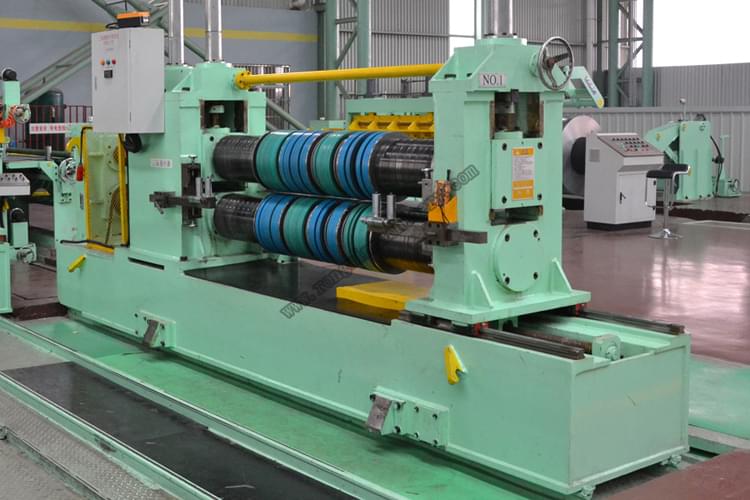

Circular Slitting Blades For Slitting Stainless Steel Coil Line


Circular Slitting Blades are applied to the slitting and slitting of high-precision metal strips. The processed materials include aluminum, copper, nickel, stainless steel, silicon steel, carbon steel and amorphous strip. The precision of the blade processing is very high. The blades produced by our company are based on the customer's production conditions and technical requirements, select the appropriate high-quality special steel, use large grinding machines and vacuum heat treatment equipment, and undergo specific heat treatment processes and special grinding. Grinding method. The cutting edge of the blade is sharp and wear-resistant, and the incision is smooth and straight.

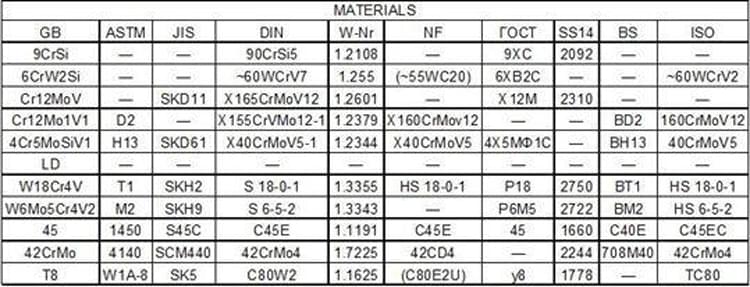

Blade material of Circular Slitting Blades : ASP, HAP, SLD, SKD, SKH, HSS, 9CrSi ,6CrW2Si , H13 ,Cr12MoV ,G1 , G2 ,G3 and etc .

Specification size of Circular Slitting Blades: outside diameter Φ10mm-1300mm, thickness: 3mm-60mm

Accuracy grade of Circular Slitting Blades: flatness, parallelism up to 0.003mm, thickness tolerance ± 0.001mm, roughness up to Ra0.1 ~ 0.2U.






How to get price from us ?

Before we quote you Circular Slitting Blades price we want the following information :

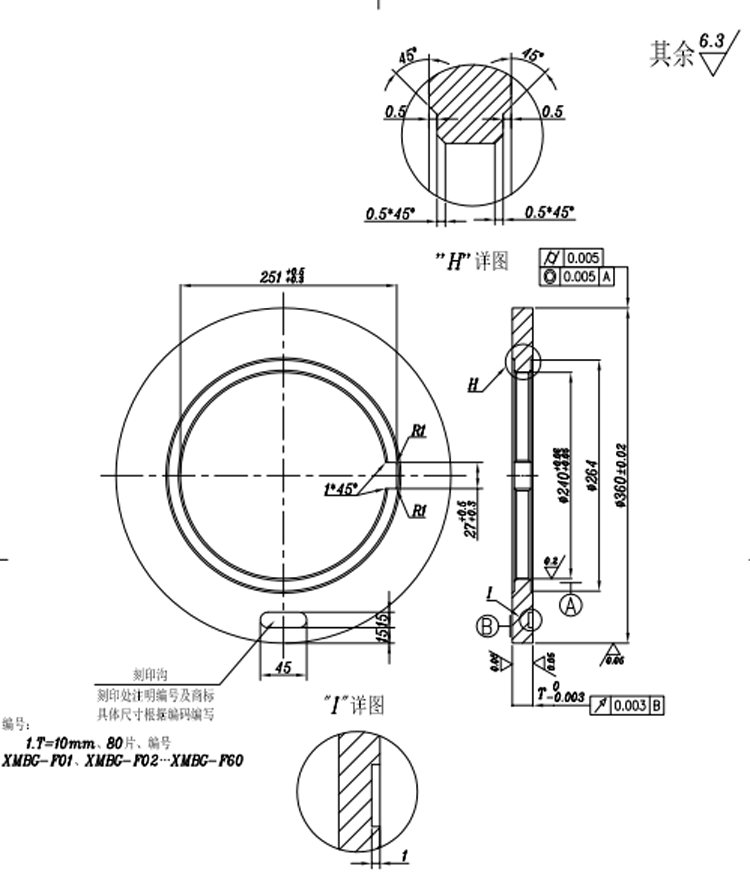

1)Drawings? OD(mm)? ID(mm)?Thickness(mm)?

2)cutting application ?


3)What kind of the steel ?

The maximum tensile strength of the steel ?

The minimum and maximum thickness of the steel ?

4)Usually we make according to customers drawing .

If you dont have drawing .Our technicians will

make drawing for confirmation before production.

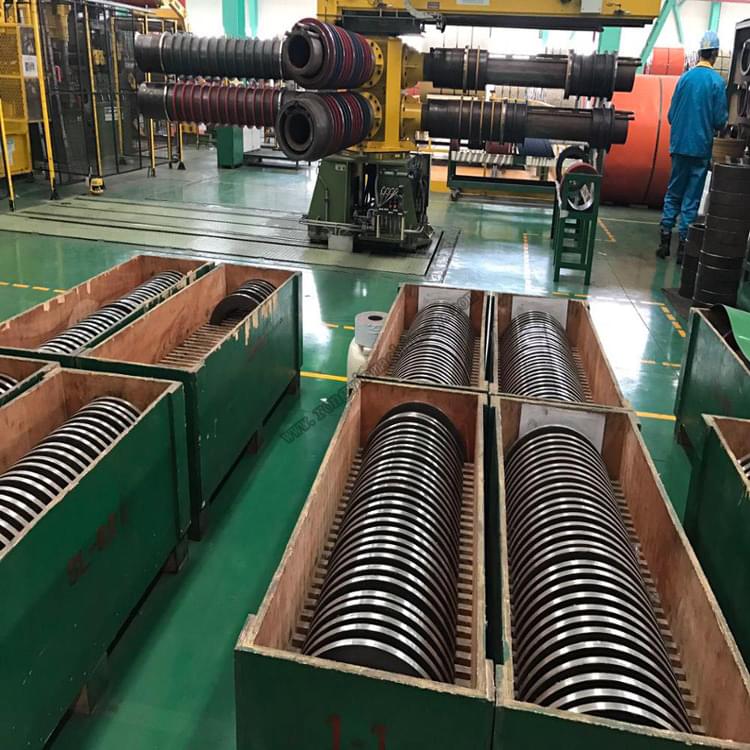

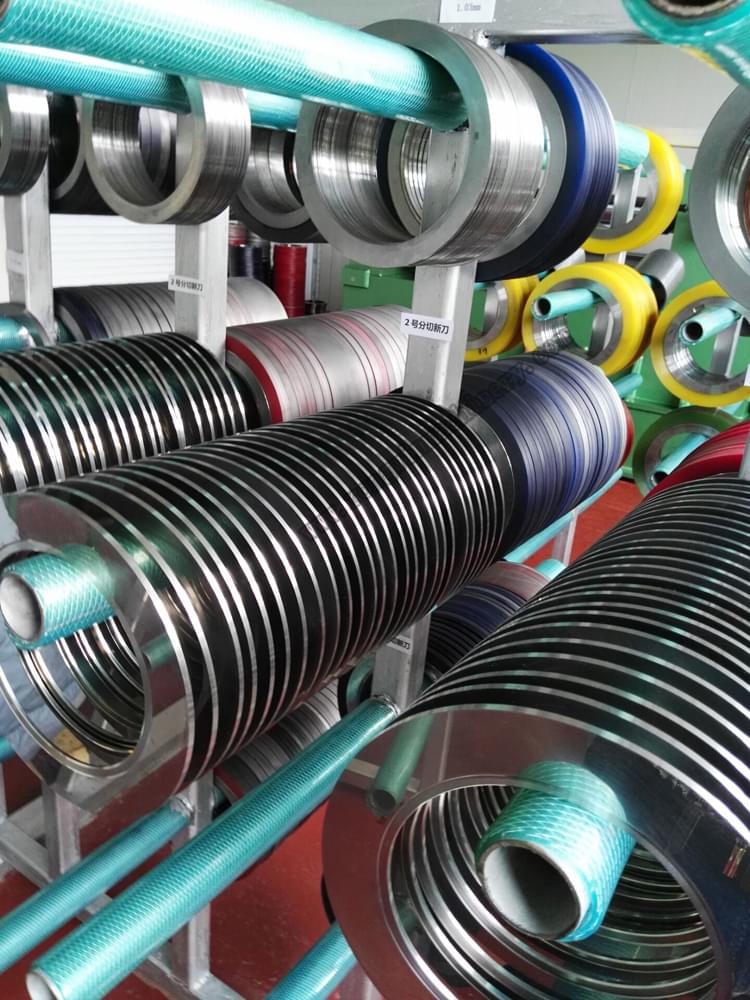

Packing image for Circular Slitting Blades

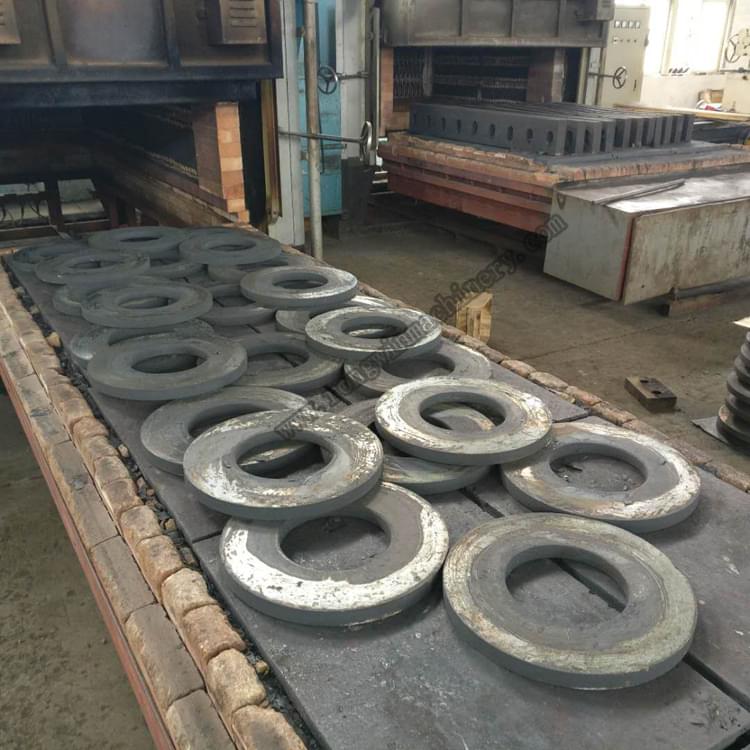

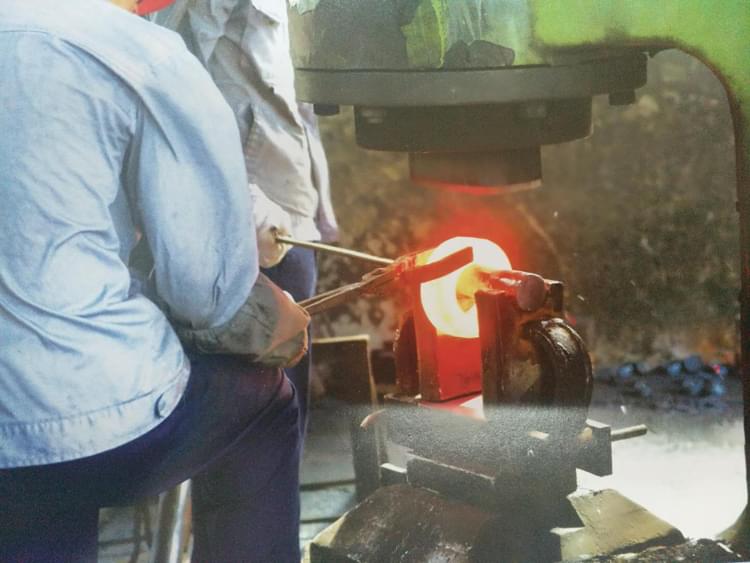

Forging and Heat Treatment Image for Circular Slitting Blades For Slitting Stainless Steel Coil Line

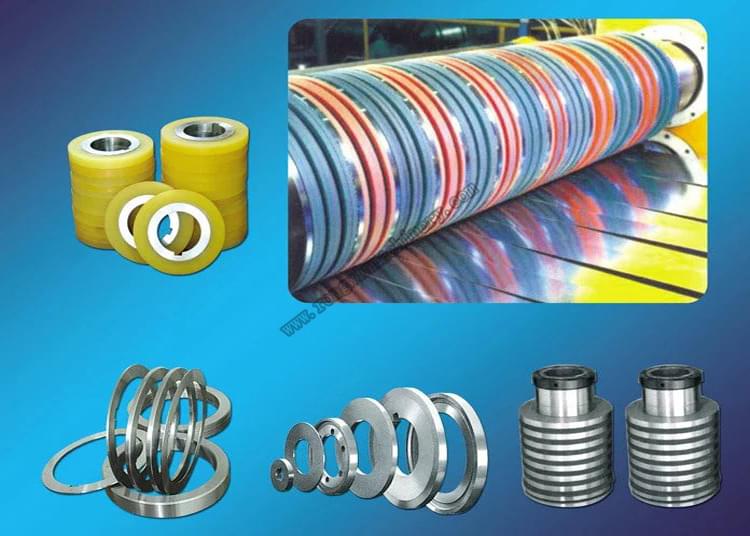

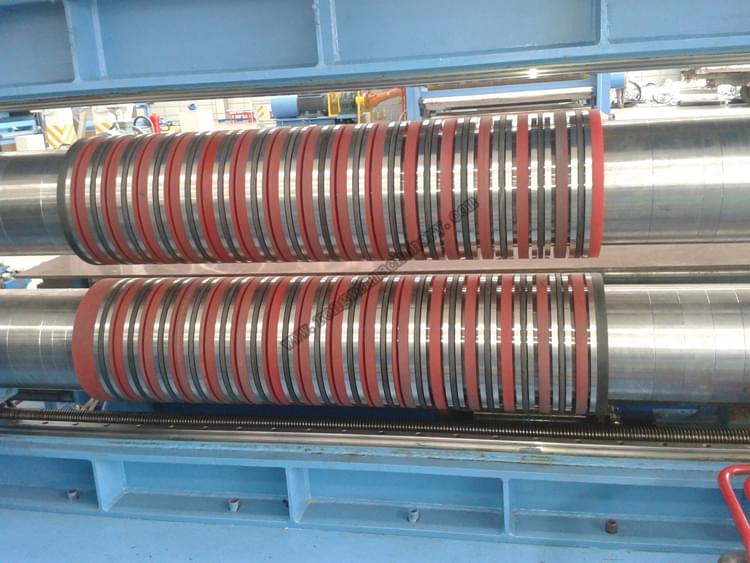

Other Accessories image of Circular Slitting Blades For Slitting Stainless Steel Coil Line

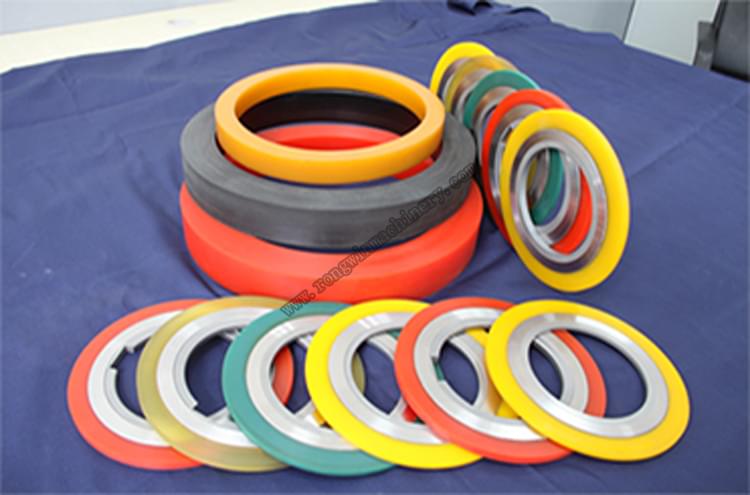

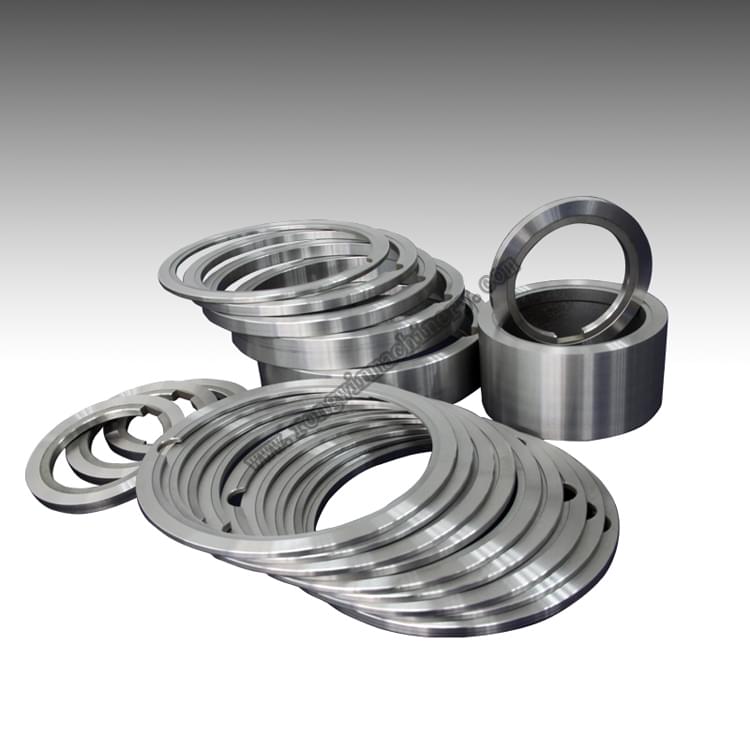

1)Bonded Stripper Rings


2)Steel Stripper Rings
